Varian Turbo-V 250 Controller - REBUILT
Call for Price

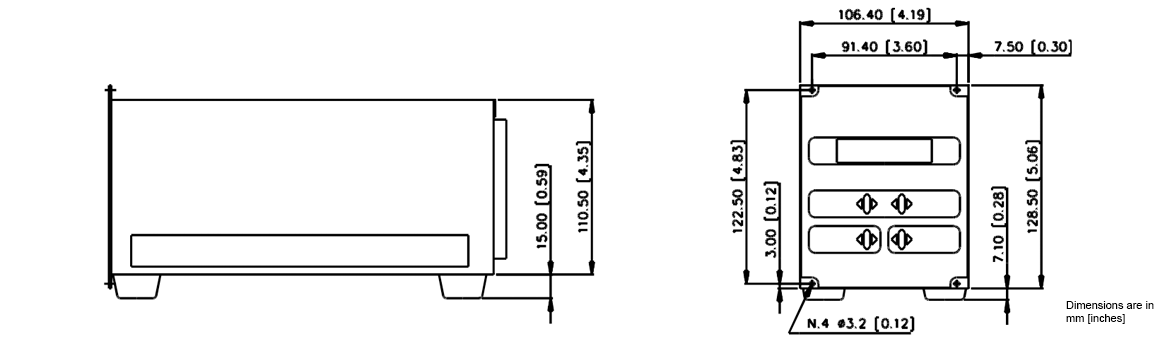

| Height | 128.50 mm |
|---|---|
| Width | 106.40 mm |
| Length | 110.50 mm |
| Weight | 10 lbs |

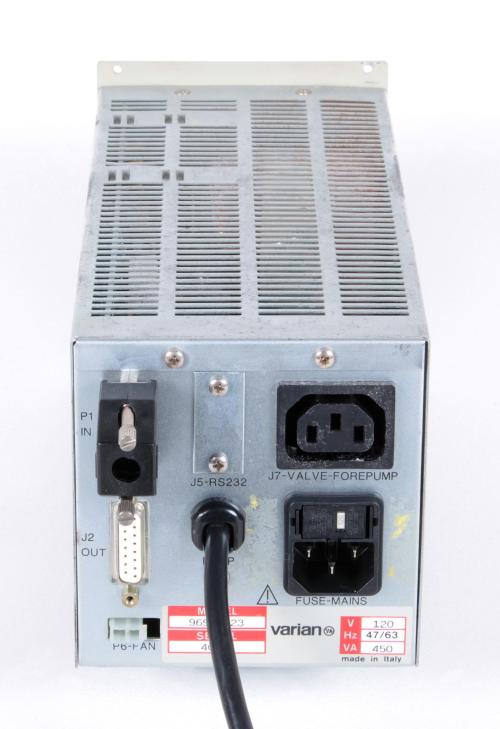

Agilent Varian Turbo-V 250 Turbomolecular Vacuum Pump Controller
The Turbo-V controllers are frequency converters with self diagnostic and protection features. The half rack unit has a multifunction alphanumeric display for pump status and error code diagnostics. It displays rotational speed as the pump starts up and indicates when full speed is reached. At any time during the operation of the pump, the speed, current, power, and bearing temperature can be displayed. Its microprocessor acts as a pump cycle log, and can display the number of vacuum cycles, the cycle time for the current cycle, and the total operating hours on the pump.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input voltage | 100, 120, 220, 240 VAC ±10%, 1-phase |
| Frequency | 47 to 63 Hz |
| Power | 450 VA maximum |
| Output voltage | 54 VAC nominal ±10%, 3-phase |
| Frequency | 933 Hz ±2% |
| Power | 150 W maximum |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Fuse (mains) | 2 x T3A (slow blow) disregarding the mains |
| P1 optically insulated input | Minimum ON 3mA Maximum 5mA |
| J2 optically insulated output | 24 VDC, 60 mA |
| J6 output fan | 100 mA |
| J7 output (forepump coil, etc.) | 120 VAC, 1A disregarding the mains |
| Radio interference suppression | EN 55011 class A group 1 EN 61010-1 IEC1000-4-2,1000-4-3 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 250 Turbomolecular Vacuum Pump Controller 9699523 / 969-9523 120 V 9699423 / 969-9423 220 V 9699425 / 969-9425
