Varian Turbo-V 300 HT Controller - REBUILT

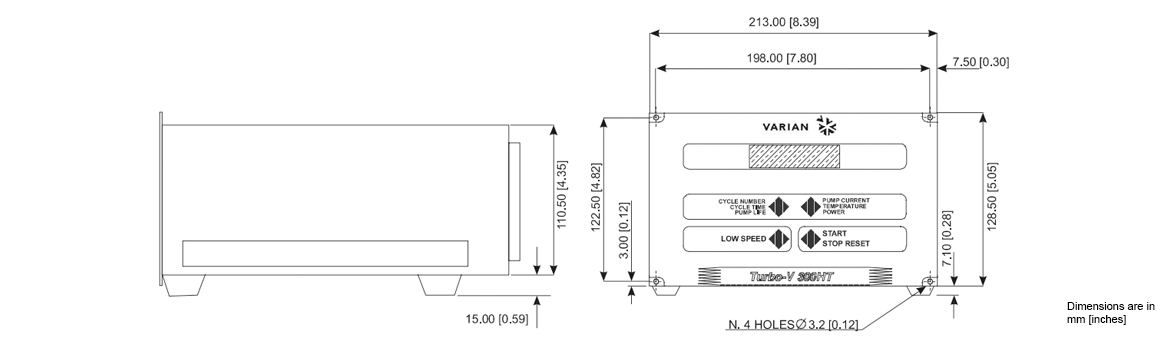

| Height |
128.50 mm |
| Width |
213 mm |
| Length |
110.50 mm |
| Weight |
23 lbs |
Agilent Varian Turbo-V 300 HT Turbomolecular Vacuum Pump Controller
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input voltage |
100, 120, 220, 240 VAC ±10%, 1-phase |
| Frequency |
47 to 63 Hz |
| Power |
350 VA maximum |
| Output voltage |
80 VAC nominal ±10% |
| Frequency |
933 Hz ±2% |
| Power |
250 W maximum |
| Water cooling |
250 W |
| Air cooling |
150 W |
| Operating temperature |
0°C to +40°C |
| Storage temperature |
-20°C to +70°C |
| Fuse (mains) |
2 x T3.15A (slow blow) for 220 or 240 input voltage
2 x T6.3A (slow blow) for 100 or 120 input voltage |
| P1 optoisolator input |
Minimum ON 3mA
Maximum 5mA |
| J2 optoisolator output |
24 VDC, 60 mA |
| J6 output (fan) |
120 VAC, 1A disregarding the mains |
| J7 output (forepump coil, etc.) |
120 VAC, 1A disregarding the mains |
| Radio interference suppression |
EN 55011 class A group 1
EN 61010-1
IEC1000-4-2,1000-4-3, 1000-4-4 |
| Auxiliary connectors |
|
| P1 |
External INPUT signals (pins) |
| J2 |
OUTPUT signals (sockets) |
| J6 |
Output fan voltage |
| J7 |
Valve, forepump socket |
| J14 |
RS 232/422/485 connection (optional) |
| Interconnecting cables |
Mains cable (3-wire, 3-meter long)
Pump cable (6-wire, 5-meter long) |
| Weight |
10 kg (22.4 lbs) |
Specifications
| Type |
Label |
Description |
Download |
|
|
Varian Turbo-V 300HT Controller - REBUILT |
Instruction Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 300 HT Turbomolecular Vacuum Pump Controller
9699424 / 969-9424
9699524 / 969-9524
