Varian Turbo-V 70 Controller - REBUILT

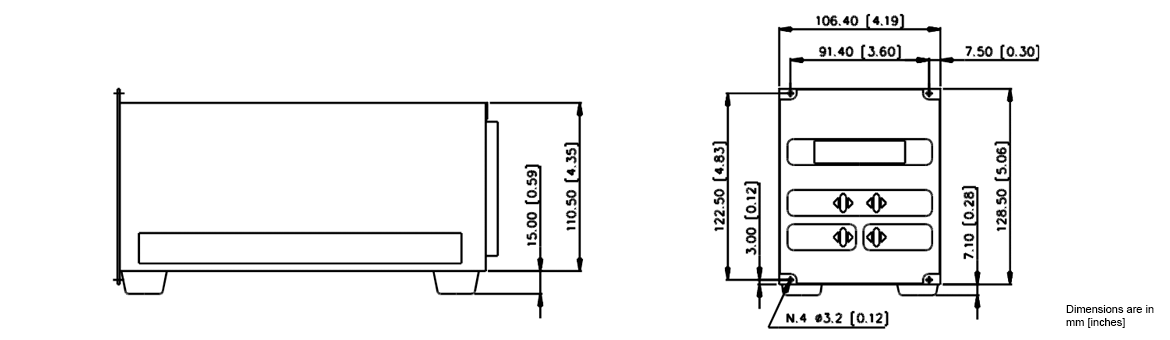

| Height | 128.50 mm |
|---|---|
| Width | 106.40 mm |
| Length | 244 mm |
| Weight | 10 lbs |
Agilent Varian Turbo-V 70 Turbomolecular Vacuum Pump Controller

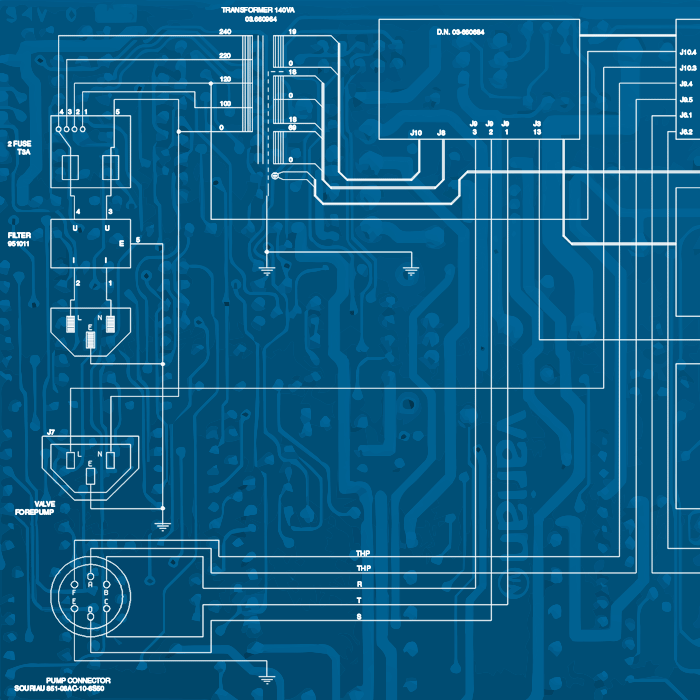

The controller is a solid-state frequency converter which is driven by a single chip microcomputer and is composed of:
- Power transformer
- Front panel display and keyboard
- Rear panel with input/output connectors
- PCB including: power supply and 3-phase output, analog and input/output section, microprocessor and digital section, display and keyboard circuits.
The power supply converts the single phase (50/60 Hz) AC mains supply into a 3-phase, low voltage, medium frequency output which is required to power the Turbo-V pump.
The microcomputer generates the variable output frequency and controls the 3-phase output voltage according to the software and the gas load condition of the pump.
Moreover, it manages signals from sensors, input/output connection information to be displayed, and gives outputs for a fully automatic operation.
A dedicated non-volatile RAM is used to store pump operating parameters and the input/output programmed information upon failure for a period of 10 years accumulated off time.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Input: Voltage Frequency Power |
100, 120, 220, 240 VAC ±10% 1-phase 47 to 63 Hz 350 VA maximum |
| Output: Voltage Frequency Power |
54 VAC nominal ±10% 3-phase 1,250 Hz, ±2% 150 W maximum |
| Operating temperature | 0°C to +40°C |
| Storage temperature | -20°C to +70°C |
| Fuse (mains) | 2 x T3.15 A (slow blow) disregarding the mains |
| P1 optoisolator input | Minimum ON 3 mA Maximum 5 mA |
| J2 optoisolator output | 24 VDC, 60 mA |
| Radio interference suppression | EN 55011 class A group 1 EN 61010-1 IEC1000-4-2, 1000-4-3, 1000 4-4 |
| P6 output fan | 100 mA (24 VDC) |
| J7 output (forepump coil, etc.) | 120 VAC, 1 A disregarding the mains |
| Interconnecting cables | Mains cable (3-wire, 3-meter long) Pump cable (6-wire, 5-meter long) |
| Weight | 3.8 Kg (8.4 lbs) |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Varian Turbo-V 70 Controller - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 70 Turbomolecular Vacuum Pump Controller 9699405 / 969-9405 220 VAC 50/60 Hz 9699505 / 969-9505 120 VAC 50/60 Hz
