Agilent Varian Turbo-V 81-AG Controller - REBUILT

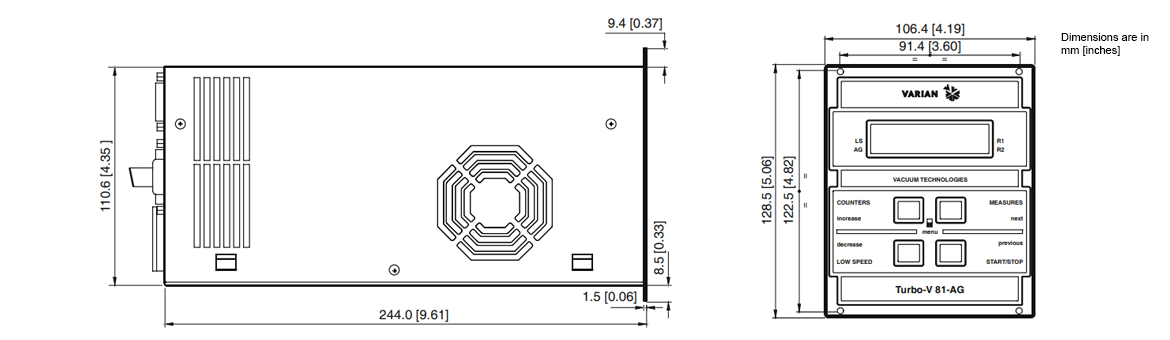

| Height |
128.50 mm |
| Width |
106.40 mm |
| Length |
244 mm |
| Weight |
3.2 lbs |
Agilent Varian Turbo-V 81-AG Turbomolecular Vacuum Pump Controller
The controller is a solid-state frequency converter with the following features:
- Drives the pumps of the 81-NAV family
- Powers the pump cooling fan
- Drives the vent valve
- Provides and acquires the pressure of the wide range gauge

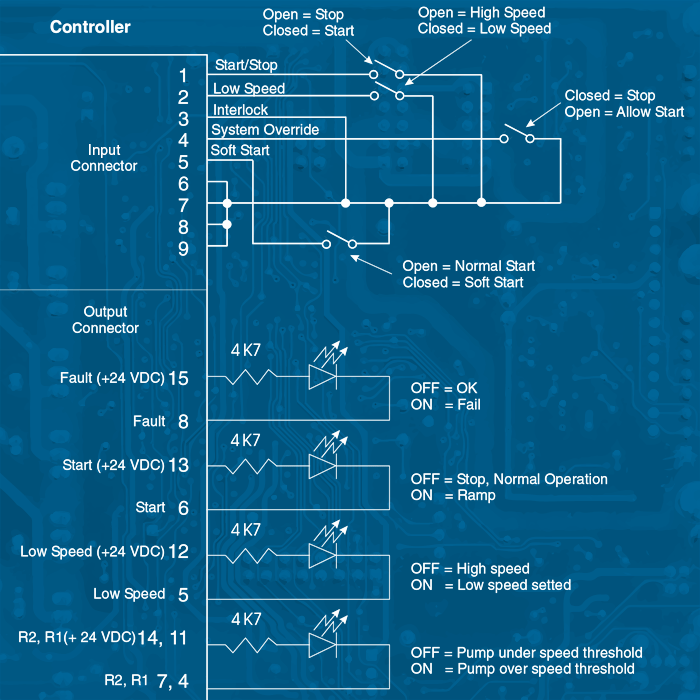

- Remote I/Os compatible with the previous version
- Navigator default serial compatible with the previous RS 232 and 485 version
- Speed reading after stop command
- Free US ground shipping
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
Input:
Voltage
Frequency
Power |
100, 240 VAC
50 to 60 Hz
210 VA |
| Fuse |
2 x T4 A (slow blow) 250 V |
Output:
Voltage
Frequency
Power |
76 VAC
1,350 Hz
100 W |
| Operating temperature |
+5°C to +45°C
0-90% |
| Storage temperature |
-20°C to +70°C
0-95% |
| Applied norr. |
EN 61010 -1
EN 55011 (Class-A)
EN 61000-3-2
EN 61000-3-3
EN 61000-6-2
EN 61000-4-2,3,4,5,6,11,8 |
| Weight |
1.7 Kg (3.2 lbs) |
| Pollution degree |
2 |
| Installation Category |
II |
Specifications
| Type |
Label |
Description |
Download |
|
|
Agilent Varian Turbo-V 81-AG Rack Controller - REBUILT |
Instruction Manual |
Download
|
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Agilent Varian Turbo-V 81-AG Turbomolecular Vacuum Pump Controller
9698988 / 969-8988 1/4 Rack controller 81-AG
9698989 / 969-8989 1/4 Rack controller 81-AG RS232/485
9698989M003 1/4 Rack controller TV81AG C.U.
9698990 / 969-8990 1/4 Rack controller 81-AG Profibus
9698995 / 969-8995 Navigator 24VDC
9698995M001 TV81AG NAV.C.U. SCIEX
9698995M002 TV81AG NAV.C.U. 24Vdc 80W
9698996 / 969-8996 Navigator 120/220V
9698996M001 Navigator TV81AG NAV.C.U. 120/220V
9699538 / 969-9538 24V PCB
