Agilent VHS-10 - NEW

Name: Agilent VHS-10 - NEW
Brand: Agilent Varian
SKU: NEW_VHS10

Be the first to review this product

Call for Price

In stock

Only %1 left

SKU

NEW_VHS10

Request For Quote

Weight	150 lbs
Pumping Speed	11,230 cfm
Ultimate Pressure	1.7 x 10^-3 to < 5 x 10^-9 Torr

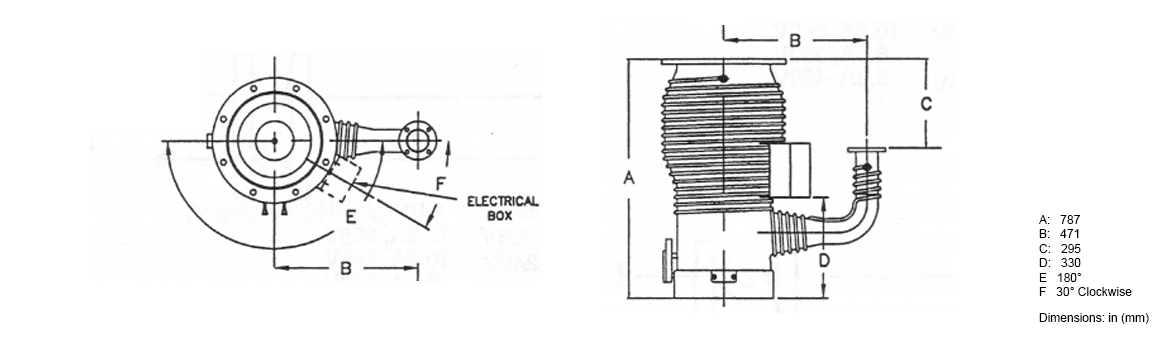

Dimensions

Description

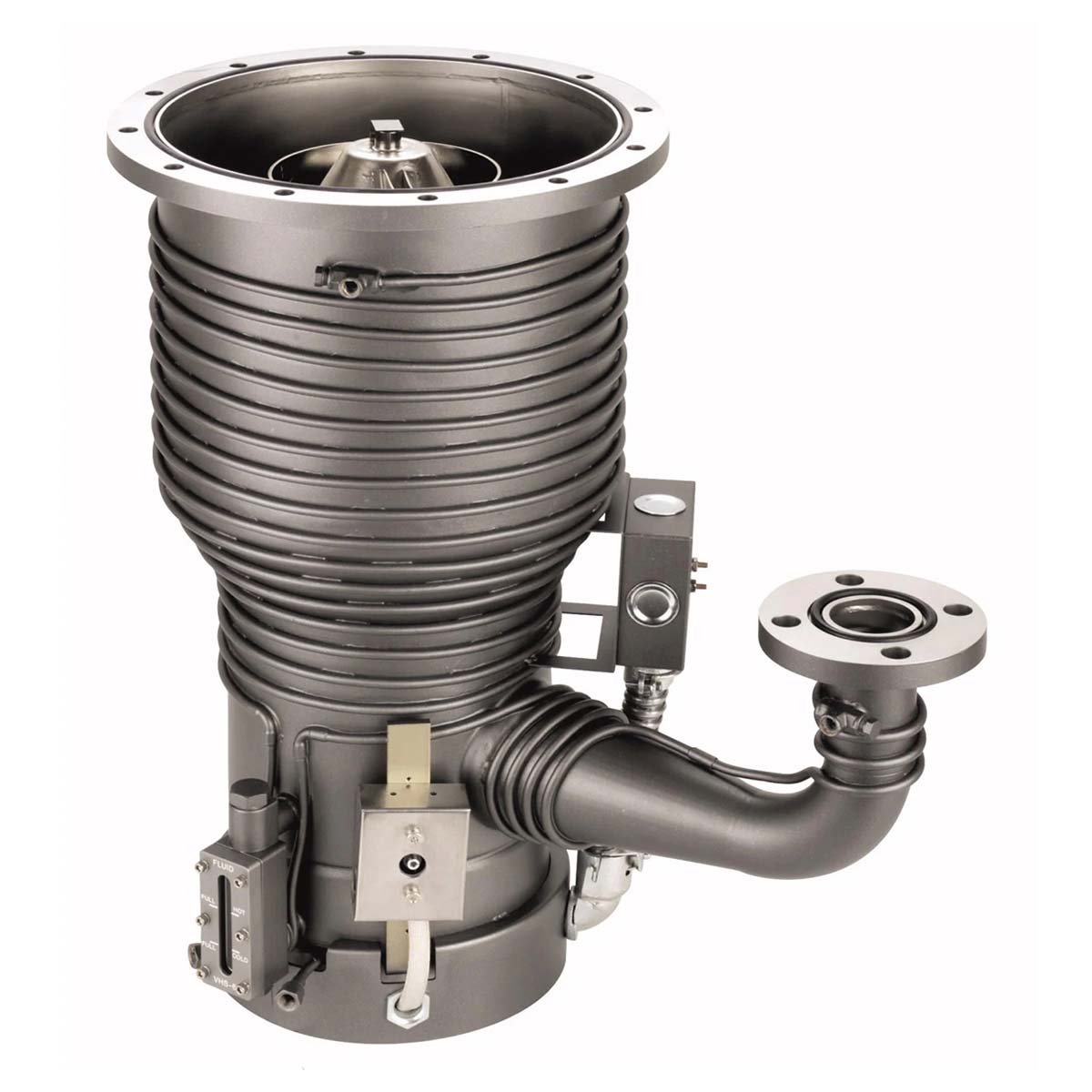

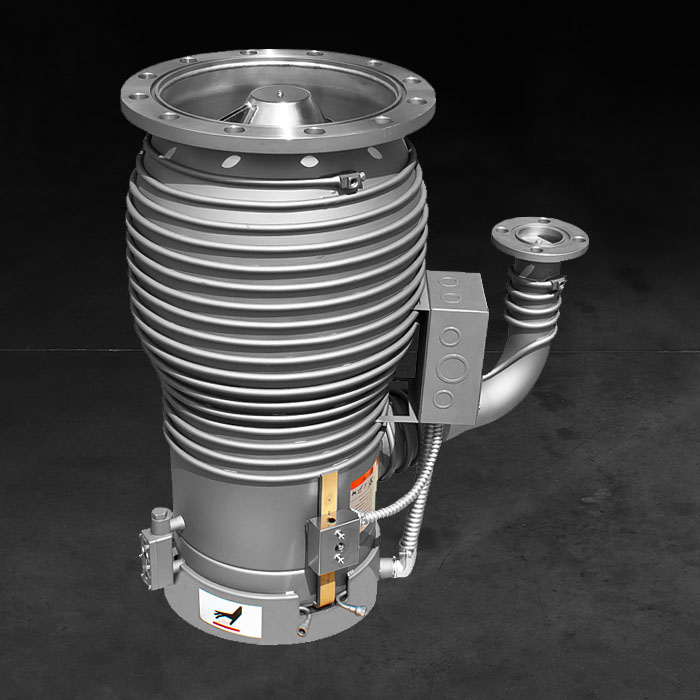

Agilent Varian VHS-10 Diffusion High Vacuum Pump - NEW

The VHS-10 diffusion pump has a pumping speed of up to 3,650 l/s and can be ordered with ASA or ISO flanges, standard or extended cold caps, and a variety of voltages. The patented bulge contour increases gas capture and maintains lower pressure. All VHS series pumps have sight glass/fill and drain assemblies for continuous monitoring and easy maintenance of pump fluid. Finned boilers increase surface area, prolonging pumping fluid life. This vapor jet pump is a perfect fit for industrial applications such as vacuum furnace, heat treatment, metallizing, and coating processes for optical lenses, electronics and protective film layers.

Highest pumping speed available
Fluid-level sight glass provides a quick indication of pump fluid status at all times
Fill and drain assembly for pump oil
High throughput, 5,100 watt version available
Fractionating jet purifies pumping fluid
High tolerable forepressure
Full thermal protection
Stainless steel pump body and jet

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Backstreaming Rate	5.0 x 10^-4 mg/cm²/min
Cooldown Time	25 min
Electrical Requirements	3-phase 50/60 Hz 208/240/380/480 V
Fluid Charge	1,000 CC
Fluid Type	Oil
Input Voltage	208, 240, 380, 480 V
Maximum Forepressure - Full Load	0.55 Torr / 0.72 mbar
Maximum Forepressure - No Load	0.65 Torr / 0.85 mbar
Maximum Throughput	6.3 T-L/s (8.4 mbar-L/s)
Operating Range	1.7 x 10^-3 to < 5 x 10^-9 Torr 2.3 x 10^-3 to < 6.5 x 10^-9 mbar
Pump Power	4,400 W
Pump Weight	150 lbs / 68 kg
Pumping Speed - Air	3,650 L/s
Pumping Speed - Air, via AVS 4.1 (1963)	5,300 L/s
Pumping Speed - He/H2	4,560 L/s
Recommended Backing Pump	≥ 30 cfm (51 m³/hr)
Warmup Time	15 min
Water Connections	1/8 inch FPT
Water Cooling - Temperature Requirement	60-80°F / 15-26°C
Water Cooling Flow Requirement	0.40 gpm / 80 L/hr

Specifications

Digital Manuals

Type	Label	Description	Download
	Agilent VHS-10 & VHS-400 - NEW	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian VHS-10 Diffusion High Vacuum Pump - NEW

F0426307 / F0426-307  ASA w/ standard cold cap 208V
F0426317 / F0426-317  ASA w/ extended cold cap 208V
F0426308 / F0426-308  ASA w/ standard cold cap 240V
F0426318 / F0426-318  ASA w/ extended cold cap 240V
F0426326 / F0426-326  ASA w/ standard cold cap 380V
F0426336 / F0426-336  ASA w/ extended cold cap 380V
F0426309 / F0426-309  ASA w/ standard cold cap 480V
F0426319 / F0426-319  ASA w/ extended cold cap 480V
L5920307 / L5920-307  ISO w/ standard cold cap 208V
L5920317 / L5920-317  ISO w/ extended cold cap 208V
L5920308 / L5920-308  ISO w/ standard cold cap 240V
L5920318 / L5920-318  ISO w/ extended cold cap 240V
L5920326 / L5920-326  ISO w/ standard cold cap 380V
L5920336 / L5920-336  ISO w/ extended cold cap 380V
L5920309 / L5920-309  ISO w/ standard cold cap 480V
L5920319 / L5920-319  ISO w/ extended cold cap 480V

Accessories
F8600310 / F8600-310  Water-cooled baffle w/ ASA flanges
F8600311 / F8600-311  Water-cooled baffle w/ ISO flanges

Replacements
F0429301 / F0429-301  Standard cold cap $680 Rebuilt; $1,300 New
F0428401 / F0428-401  Jet assembly $3,700 Rebuilt; $5,700 New
F0431301 / F0431-301  Splash baffle $500 Rebuilt; $800 New
