Agilent Varian VHS-6 - REBUILT

Name: Agilent Varian VHS-6 - REBUILT
Brand: Agilent Varian
SKU: REBUILT_VHS6

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_VHS6

Request For Quote

Weight	75 lbs
Pumping Speed	3,284 cfm
Ultimate Pressure	6.50 x 10^-1 Torr

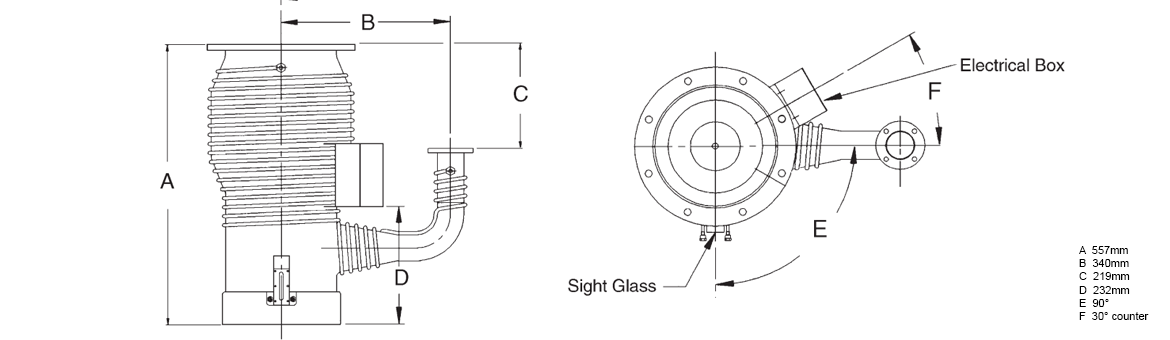

Dimensions

Description

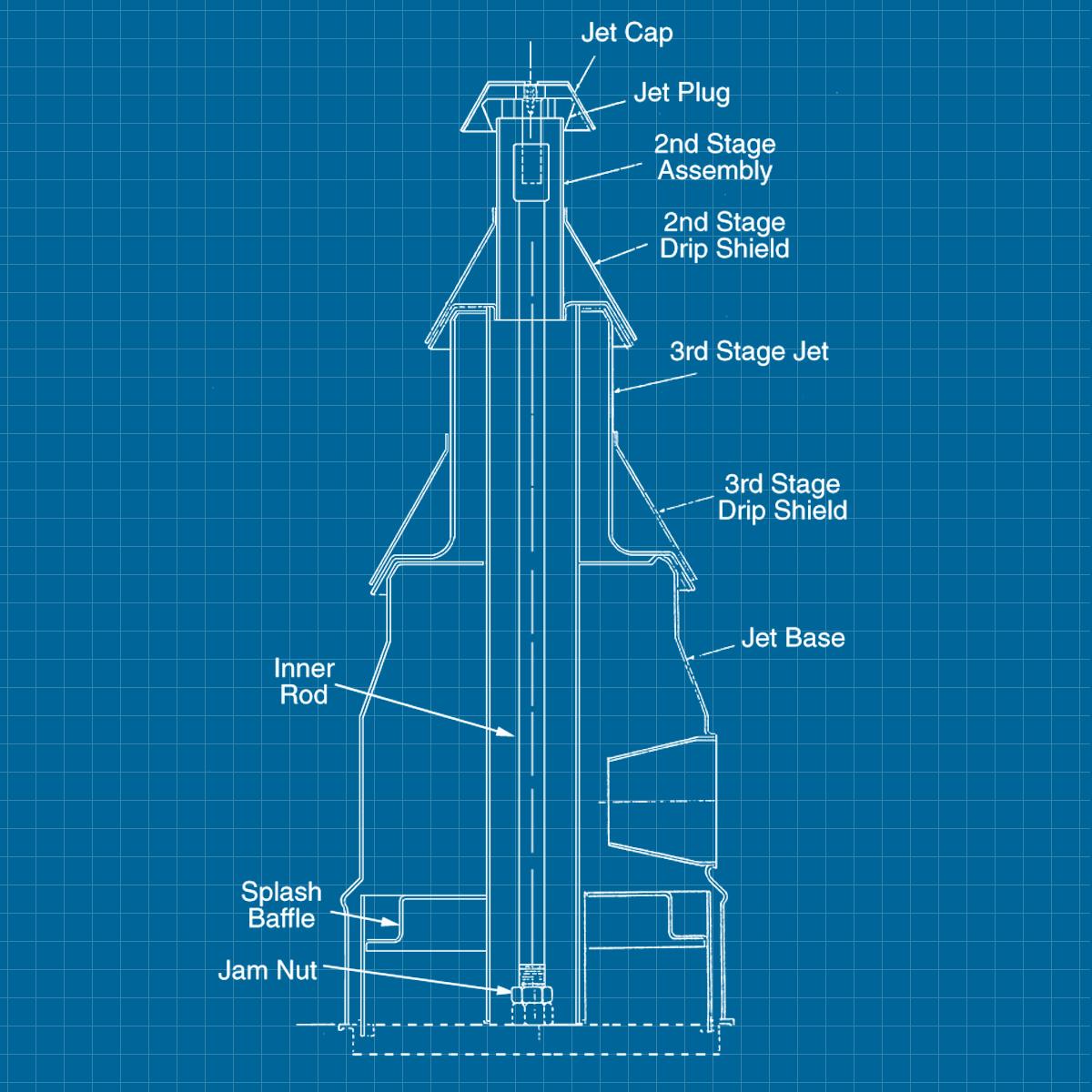

Agilent Varian VHS-6 Diffusion High Vacuum Pump - REBUILT

The Agilent Varian VHS Series bulge contour increases gas capture and maintains lower pressure for the process. These VHS diffusion pumps have sight glass/fill and drain assemblies for continuous monitoring and easy maintenance of pump fluid. Finned boilers increase surface area, prolonging fluid life. Full thermal protection and quick-cool coils are also standard. Please let us know if you would like a quote for a different heater voltage or for repair service of your pump.

We also carry Agilent Varian diffusion pump LN₂ traps and baffles and valves.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Backstreaming Rate	5 x 10^-4 mg/cm²/min
Cooldown Time	10 min
Electrical Requirements	1-phase 50/60 Hz 120/208/240 V
Fluid Charge	500 CC
Fluid Type	Oil
Input Voltage	120, 208, 240 V
Maximum Forepressure - Full Load	0.55 Torr / 0.72 mbar
Maximum Forepressure - No Load	0.65 Torr / 0.85 mbar
Maximum Throughput	2.4 T-L/s (3.2 mbar-L/s)
Operating Range	1.5 x 10^-3 to < 5 x 10^-9 Torr 2 x 10^-3 to < 6.5 x 10^-9 mbar
Pump Power	2,200 W
Pump Weight	75 lbs / 34 kg
Pumping Speed - Air	1,550 L/s
Pumping Speed - Air, via AVS 4.1 (1963)	2,400 L/s
Pumping Speed - He/H2	1,930 L/s
Recommended Backing Pump	≥ 17.0 cfm (28.9 m³/hr)
Warmup Time	10 min
Water Connections	1/8 inch FPT
Water Cooling - Temperature Requirement	60-80°F / 15-26°C
Water Cooling Flow Requirement	0.25 gpm / 50 L/hr

Digital Manuals

Type	Label	Description	Download
	Varian Diffusion Pumps - REBUILT	Data Sheet	Download
	Varian VHS-6 - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Agilent Varian VHS-6 Diffusion High Vacuum Pump - REBUILT

85826301 / 85826-301  ASA w/ standard cold cap 2,200W 120V
85826302 / 85826-302  ASA w/ standard cold cap 2,200W 240V single-phase
85826306 / 85826-306  ASA w/ standard cold cap 208V 1-phase
85826311 / 85826-311  ASA w/ extended cold cap 2,200W 120V
85826312 / 85826-312  ASA w/ extended cold cap 240V 1-phase
85826316 / 85826-316  ASA w/ extended cold cap 208V 1-phase
L6193301 / L6193-301  ISO w/ standard cold cap 120V
L6193302 / L6193-302  ISO w/ standard cold cap 240V
L6193306 / L6193-306  ISO w/ standard cold cap 208V
L6193311 / L6193-311  ISO w/ extended cold cap 120V
L6193312 / L6193-312  ISO w/ extended cold cap 240V
L6193316 / L6193-316  ISO w/ extended cold cap 208V

Type No. 0184

018485826301 / 0184-85826-301  standard cold cap 120V
018485826311 / 0184-85826-311  mexican hat cold cap 120V
018485826306 / 0184-85826-306  standard cold cap 208V
018485826316 / 0184-85826-316  mexican hat cold cap 208V
018485826302 / 0184-85826-302  standard cold cap 240V
018485826312 / 0184-85826-312  mexican hat cold cap 240V
