Alcatel ATH 1300 M - REBUILT

Name: Alcatel ATH 1300 M - REBUILT
Brand: Adixen Alcatel
SKU: REBUILT_ATH1300M

Be the first to review this product

Out of stock

Only %1 left

SKU

REBUILT_ATH1300M

Request For Quote

Weight	60.00 lbs
Pumping Speed	2628 cfm
Ultimate Pressure	6 x 10^-9 torr

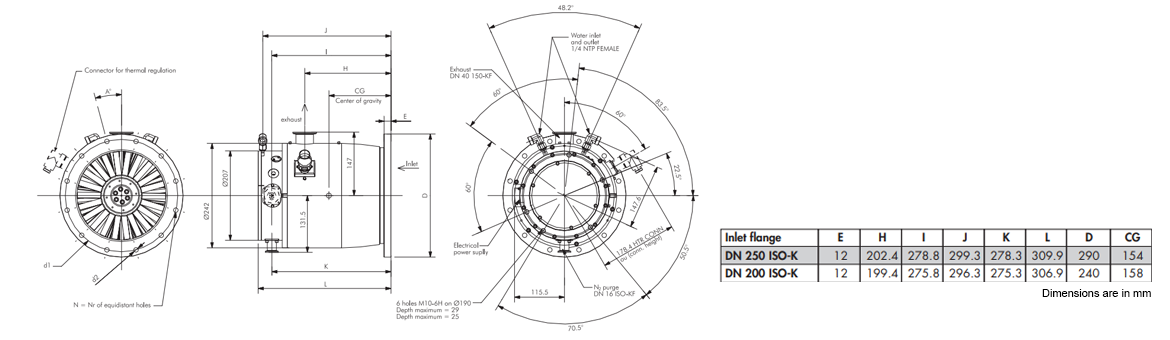

Dimensions

Description

Pfeiffer Adixen Alcatel ATH 1300 M Turbomolecular Vacuum Pump - REBUILT

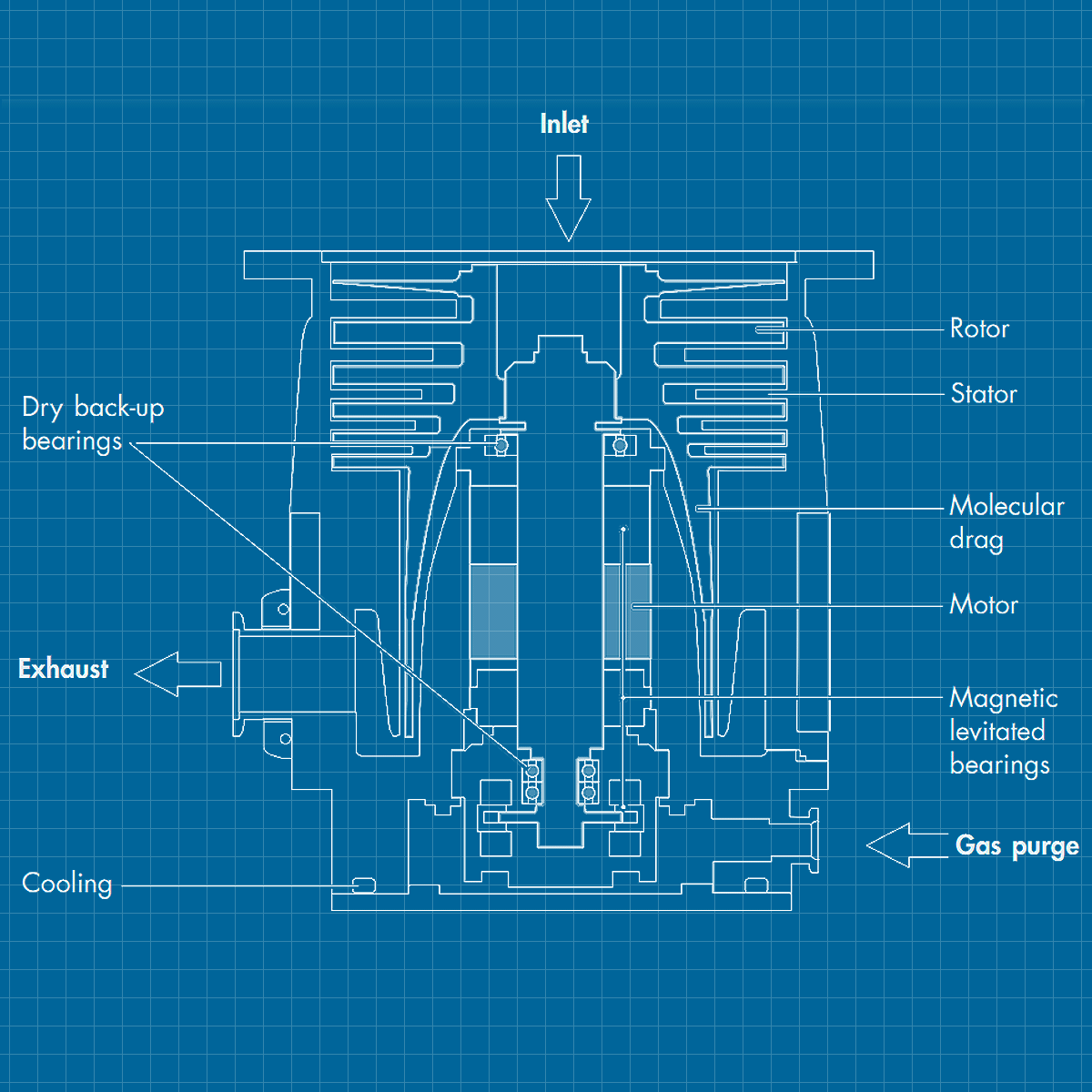

5-axis magnetically levitated turbo pump with drag stage for a pump speed of up to 1,400 l/s for N2.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Pumping speed — (N₂, l/sec.)	1,250
Compression ratio: N₂	1.0 x 10⁷
Compression ratio: He	2.0 x 10³
Compression ratio: H₂	1.0 x 10²
Inlet flanges	ISO200-F
Foreline flange	QF40
Ultimate pressure — Torr (mbar)	8.0 x 10^-9
Pump weight — lbs. (kg)	75.5 (34)
Maximum foreline pressure — Torr (mbar)	1.125 (1.5)
Cooling method	Water
Orientation	Any
Maximum throughput (sccm, N₂)	3,000

Digital Manuals

Type	Label	Description	Download
	Adixen Alcatel ATH 1300 / 1600 M-MT - REBUILT	Maglev Hybrid Turbomolecular Pumps	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Adixen Alcatel ATH 1300 M Turbomolecular Vacuum Pump - REBUILT

M2412100  ATH 1300 M  160 ISO-K
M2462100  ATH 1300 M  160 ISO-F
M2422100  ATH 1300 M  160 CF-F
M2832100  ATH 1300 M  6" ASA
M2512100  ATH 1300 M  200 ISO-K
M2562100  ATH 1300 M  200 ISO-F
M2522100  ATH 1300 M  200 CF-F
M2612100  ATH 1300 M  250 ISO-K
