Adixen ATH 2303 M - REBUILT

Name: Adixen ATH 2303 M - REBUILT
Brand: Pfeiffer Adixen
SKU: REBUILT_ATH2303M

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_ATH2303M

Request For Quote

Weight	132.28 lbs
Pumping Speed	2,150 l/s
Ultimate Pressure	6 x 10^-9 mbar

Description

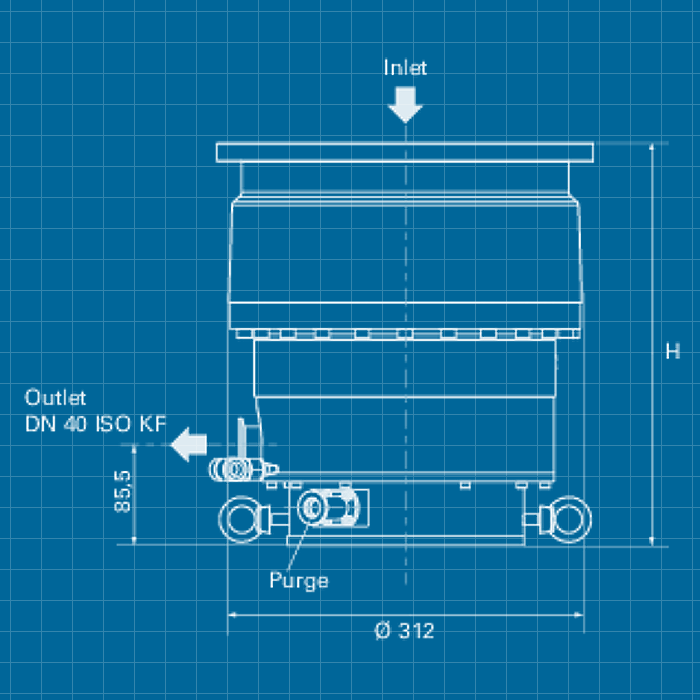

Pfeiffer Adixen ATH 2303 M Turbomolecular Vacuum Pump w/ Controller - REBUILT

5-axis magnetically levitated turbo pump with drag stage for a pump speed of up to 2,150 l/s for N₂.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Bearing	Magnet
Compression ratio for Ar	> 1 x 10⁸
Compression ratio for H₂	> 1 x 10³
Compression ratio for He	> 3 x 10⁴
Compression ratio for N₂	> 1 x 10⁸
Connection flange (in)	DN 250 CF-F
Connection flange (out)	DN 40 ISO-KF
Cooling method	Water
Cooling water flow	60 l/h
Cooling water flow, max.	60 l/h
Cooling water flow, min.	60 l/h
Cooling water temperature	15-25°C \| 59-77°F \| 288-298 K
Corrosive gas version	Yes
Electronic drive unit	External drive electronics
Final pressure	< 6 x 10^-9 hPa \| < 4.5 x 10^-9 Torr \| < 6 x 10^-9 mbar
Final pressure without gas ballast	< 6 x 10^-9 hPa \| < 4.5 x 10^-9 Torr \| < 6 x 10^-9 mbar
Fore-vacuum max. for N₂	2.8 hPa \| 2.1 Torr \| 2.8 mbar
Gas throughput at maximum rotation speed for Ar, heated pump at 75°C	8.5 hPa·l/s
Gas throughput at maximum rotation speed for H₂, heated pump at 75°C	> 16.9 hPa·l/s
Gas throughput at maximum rotation speed for N₂, heated pump at 75 °C	16.9 hPa·l/s
Gas throughput for Ar	25.4 hPa·l/s
Gas throughput for H₂	> 67.6 hPa·l/s
Gas throughput for He	> 67.6 hPa·l/s
Gas throughput for N₂	67.6 hPa·l/s
I/O interfaces	Via External drive electronics
Mounting orientation	Arbitrary
Operating voltage: 50/60 Hz	100 – 120 / 200 – 240

Digital Manuals

Type	Label	Description	Download
	Pfeiffer ATH 1603 - 2303 M - REBUILT	Operating Instructions	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Pfeiffer Adixen ATH 2303 M Turbomolecular Vacuum Pump - REBUILT

P/N TMBBA622005A, TMB10622005A  ATH 2303M DN 250 CF-F

TMB206220000  ATH 2303 M  DN 250 CF-F, with external drive electronics, water-cooled, non-heated
TMB206620000  ATH 2303 M  DN 250 ISO-F, with external drive electronics, water-cooled, non-heated
TMBBA622005A  ATH 2303 M  DN 250 CF-F, OBC V4 integrated drive electronics, remote, water-cooled, non-heated
TMBBA662005A  ATH 2303 M  DN 250 ISO-F, with integrated drive electronics OBC V4, remote, water-cooled, non-heated
TMBBB622005A  ATH 2303 M  DN 250 CF-F, with integrated drive electronics OBC V4, Profibus, water-cooled, non-heated
TMBBB662005A  ATH 2303 M  DN 250 ISO-F, with integrated drive electronics OBC V4, Profibus, water-cooled, non-heated
TMBBC622005A  ATH 2303 M  DN 250 CF-F, with integrated drive electronics OBC V4, DeviceNet, water-cooled, non-heated
TMBBC662005A  ATH 2303 M  DN 250 ISO-F, with integrated drive electronics OBC V4, DeviceNet, water-cooled, non-heated
