ANEST IWATA DVSL-500C - NEW
| Weight | 79.30 lbs |
|---|---|
| Motor Power | 1.2 hp |
| Pumping Speed | 15.2.4 cfm |
| Ultimate Pressure | ≦ 3 x 101 Pa |
ANEST IWATA DVSL-500C Dry Scroll Vacuum Pump - NEW
With OEM one year warranty. PTB is now an authorized distributorship within the ANEST IWATA distribution network, selling all their models of scroll pumps.

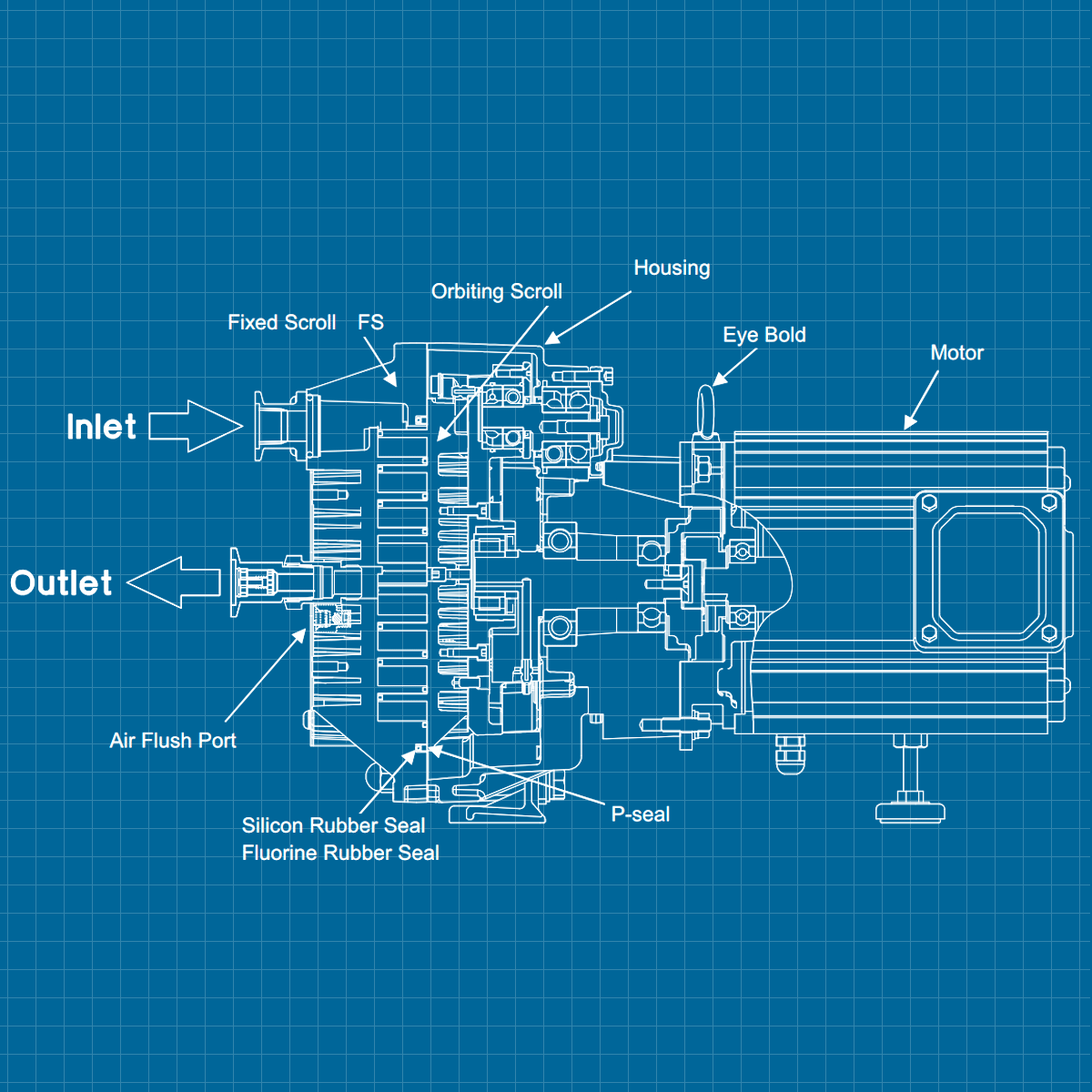

The DVSL scroll pumps are equipped with a dry vacuum system so there is no need for lubricating oil or sealing water. The absence of gears means that it is low-maintenance and there is no need to change gear oil and no risk of lubricating oil leaks. Generator powered vacuum keeps the installation area clean. It is equipped with a water cooling system which eliminates the need to control water cooling on site. DVSL pumps are excellent in displacing water vapor. Low power variance between atmospheric pressure and maximum pressure allows repeated, continuous operation between atmospheric pressure and vacuum. These pumps use up less energy and can lead to savings in the vacuum area. 24-Hour operation secured.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Model | DVSL-500C | DVSL-501C | ||||||
| Back-up material | Silicon rubber | Fluorine rubber | ||||||
| Displacement | 50 Hz 60 Hz |
430 L/min 520 L/min |
||||||
| Ultimate pressure Pa | ≤ 30 | ≤ 100 | ||||||
| Max. inlet pressure | Atmospheric pressure | |||||||
| Ambient operating temperature | 5°C ~ 40°C | |||||||
| Type | 3-phase squirrel cage induction motor 2P Totally-enclosed Insulation Class B IP44 Multiplex voltage |
|||||||
| Output | 0.9 / 1.1 kW (50/60 Hz) | |||||||
| Voltage | 200 V | 208 V | 230 V | 380 V | 400 V | 415 V | 460 V | |
| Rated current A | 50 Hz 60 Hz |
3.6 4.2 |
- 4.1 |
- 3.9 |
1.9 - |
1.9 - |
1.8 - |
- 1.95 |
| Revolution min-1 {rpm} | 50 Hz 60 Hz |
2,913 3,472 |
- 3,475 |
- 3,503 |
2,929 - |
2,934 - |
2,939 - |
- 3,527 |
| Noise level at 1m dB(A) w/ air-flush ON |
≤ 64 ≤ 69 |
|||||||
| Inlet connection | NW25 (Internal screw sizw: Rc1/2) | |||||||
| Outlet connection | NW16 (with exhaust valve) | |||||||

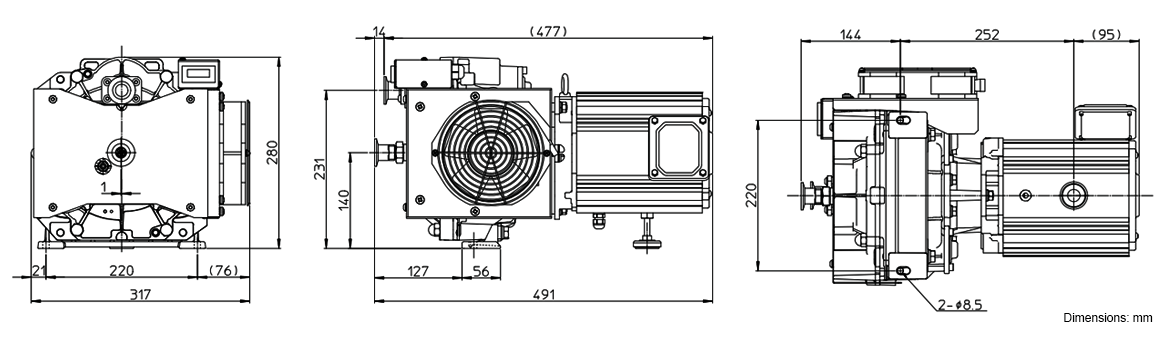

| Dimensions | 317 x 491 x 280 mm 12.4 x 19.3 x 11 in |
|||||||
| Mass | 36 kg (79.3 lbs) | |||||||
| Cooling system | Air-cooled | |||||||
| Others | Air-flush |
| Type | Label | Description | Download |
|---|---|---|---|
|
ANEST IWATA DVSL-500C - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
