ANEST IWATA ISP-50 - NEW
Starting at
$4,980
In stock
Only %1 left
SKU
NEW_ISP50
| Weight | 26.40 lbs |
|---|---|
| Motor Power | 0.13 hp |
| Pumping Speed | 2.1 cfm |
| Ultimate Pressure | ≦ 1.50 x 101 Pa |
ANEST IWATA ISP-50 Dry Scroll Vacuum Pump - NEW
With OEM one year warranty. PTB is now an authorized distributorship within the ANEST IWATA distribution network, selling all their models of scroll pumps.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement | 50 Hz 60 Hz |
50 L/min 60 L/min |
|
| Ultimate pressure Pa | 50 Hz 60 Hz |
≤ 20 ≤ 15 |
|
| Leak tightness Pa • m3/s | ≤ 1.0 x 10-7 | ||
| Max. inlet pressure | Atmospheric pressure | ||
| Ambient operating temperature | 5°C ~ 40°C | ||
| Type | Single-phase induction motor 4P Totally-enclosed Insulation Class B IP44 Capacitor start TP212 Automatic Reset Type |
||
| Output | 100 W | ||
| Voltage AC100V class | 100 V | 115 V | |
| Rated current A | 50 Hz 60 Hz |
2.3 2.1 |
- 2.1 |
| Revolution min-1 {rpm} | 50 Hz 60 Hz |
1,390 1,670 |
- 1,700 |
| Noise level at 1m dB(A) w/ air-flush ON |
≤ 48 ≤ 57 |
||
| Inlet connection | NW25 | ||
| Outlet connection | NW16 | ||
| Direction of inlet | Vertical | ||

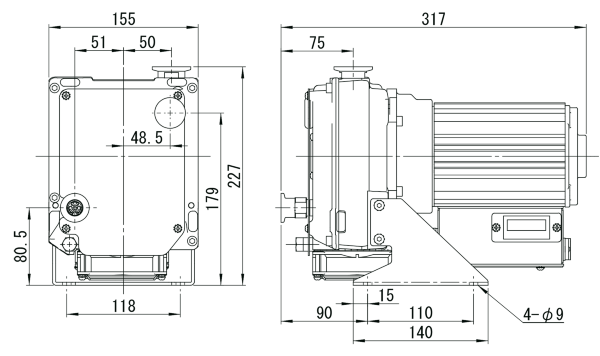

| Dimensions | 317 x 155 x 227 mm 12.4 x 6.1 x 8.9 in |
||
| Mass | 12 kg (26.4 lbs) | ||
| Cooling system | Air-cooled | ||
| Others | w/ hour counter and air-flush |
| Type | Label | Description | Download |
|---|---|---|---|
|
ANEST IWATA ISP-50 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
ANEST IWATA ISP-50 Dry Scroll Vacuum Pump - NEW
