CTI-Cryogenics On-Board WP 350 - REBUILT
Call for Price
| Weight | 50 to 90 lbs |
|---|---|
| Pumping Speed | 450 to 7,200 l/s |

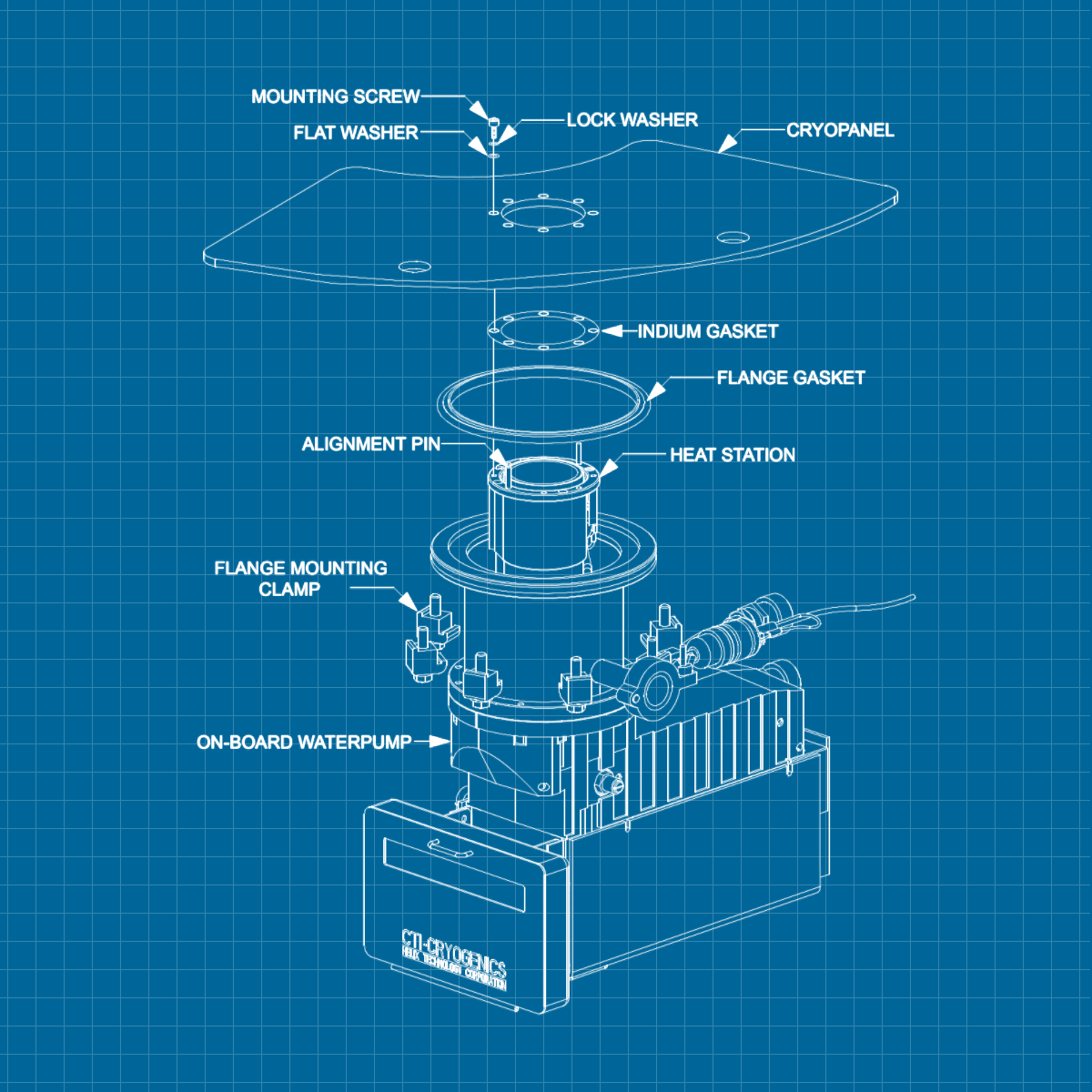

Brooks CTI-Cryogenics On-Board WP 350 Waterpump - REBUILT
The Brooks CTI On-Board waterpump increases water vapor pumping speed with the advantage of being microprocessor controlled. The pump frees the operating chamber of water vapor as specified by the temperature control feature, giving flexibility to the operator without having to valve off the pump. Integration is the same as any On-Board pump since the interface and communications protocol is the same.
We have In Situ, Inline, LowProfile and Appendage waterpumps to match many different vacuum systems. Call us with the configuration that you require.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
On-Board InLine Waterpump Specifications
| Inlet Flange Size (in/mm) |
Water Pumping Speed (liters/second) |
Nitrogen Conductance (liters/second) |
Weight (lb./kg) |
| 4 / 100 | 1,100 | 450 | 50 / 22.7 |
| 6 / 160 | 2,500 | 1,000 | 50 / 22.7 |
| 8 / 200 | 4,000 | 1,800 | 55 / 24.9 |
| 10 / 250 | 7,000 | 2,800 | 70 / 31.8 |
| 16 / 400 | 16,000 | 7,200 | 90 / 40.8 |
On-Board LowProfile Waterpump Specifications
| Inlet Flange Size (in/mm) |
Water Pumping Speed (liters/second) |
Nitrogen Conductance (liters/second) |
Weight (lb./kg) |
| 4 / 100 | 800 | 500 | 50 / 22.7 |
| 6 / 160 | 1 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Brooks CTI-Cryogenics On-Board Waterpump Series - REBUILT | Installation & Maintenance Instructions | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
