Dimplex Thermal Solutions JHI-1500-M - NEW
Call for Price
In stock
SKU
NEW_JHI1500M
| Pump standard flow | 4 GPM @ 50 PSI |
|---|---|
| Weight | 570 lbs |
| Dimensions (LxWxH) | 25x31x33 |

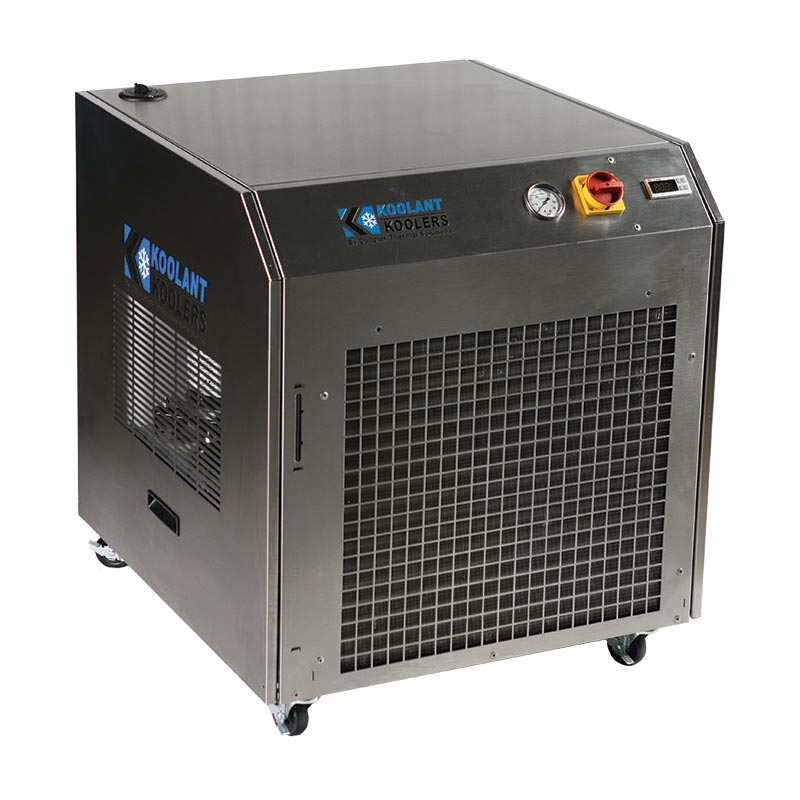

Dimplex Thermal Solutions Koolant Koolers JHI-1500-M Portable Chiller - NEW
This compact air-cooled unit provides reliable temperature control of process fluids from 50-80°F in ambient temperatures up to 105°F. Its casters yield effortless portability and allow for use with several machines in a process.
Its size, simple operation and ease of maintenance make it the chiller of choice for hundreds of applications. Most models need no special wiring – it is truly a plug and play design.
- Air cooled, closed-loop refrigeration circuit for water or water/glycol operations
- Provides from 1/8 to 2 tons of cooling for indoor use
- Optimized layout of internal components for ease of service
- Various voltage options available
- High pressure models available larger units
- Streamlined manufacturing process for short lead-times
- State-of-the-art 18 month comprehensive warranty
- 24/7 service and support with next days parts service
- Ongoing support offered for the life of the equipment
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| J Series | JHI-180-M | JHI-500-M | JHI-1000-M | JHI-1500-M | JHI-2000-M |
| 1/8 Ton | 1/2 Ton | 1 Ton | 11/2 Ton | 2 Ton | |
| Cooling | |||||
| Refrigerant | R513a | ||||
| Compressor type | Hermetic condensing unit | ||||
| Condenser type | Fin and tube | ||||
| Fluid Circuit | |||||
| Cooling capacity 60 Hz | 2,100 BTU | 5,500 BTU | 12,000 BTU | 18,000 BTU | 24,000 BTU |
| Pump flow/pressure (standard) | 2 GPM @ 50 PSI | 4 GPM@ 50 PSI | 10 GPM@ 35 PSI | ||
| Fluid temperature (outlet) | 65°F | ||||
| Temperature stability | 3°F | ||||
| Cooling medium | Water or water/glycol (70/30) | ||||
| Tank capacity | 5 gallon | 10 gallon | |||
| Wetted component material | Non-ferrous, polyethylene | ||||
| Evaporator | Stainless steel copper brazed plate | ||||
| Climatic Data | |||||
| Site of installation | Indoor | ||||
| Ambient conditions | 50-95°F | ||||
| Noise level | 65-68 dB(A) | ||||
| Electrical Data | |||||
| Voltage options | |||||
| 115/1/60 | • | • | |||
| 230/1/60 | • | • | • | • | |
| 230/3/60 | • | ||||
| 460/3/60 | • | • | • | ||
| Certifications/Standards | UL1995 | ||||
| Controller type | Carel IR33 | ||||
| Additional Data | |||||
| Dimensions | 21 x 213/4 x 281/2" | 251/8 x 305/8 x 351/4" | 323/4 x 373/4 x 331/4" | ||
| Finish | 430 Stainless steel | ||||
| Crated weight | 245 | 450 | 490 | 630 | |
| Wet weight | 290 | 530 | 570 | 645 | |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Dimplex Thermal Solutions Koolant Koolers JHI-1500-M J Series Portable Chiller - NEW 800054 JHI-1500-M 180,000 BTU/HR 4 GPM @ 50 PSI 800392 JHI-1500-M 180,000 BTU/HR 4 GPM @ 50 PSI
