Dimplex Thermal Solutions SVI-20000-M - NEW
Call for Price
| Pump standard flow | 60 GPM @ 45 PSI |
|---|---|
| Weight | 2,550 lbs |
| Dimensions (LxWxH) | 57x61.5x65.5 |

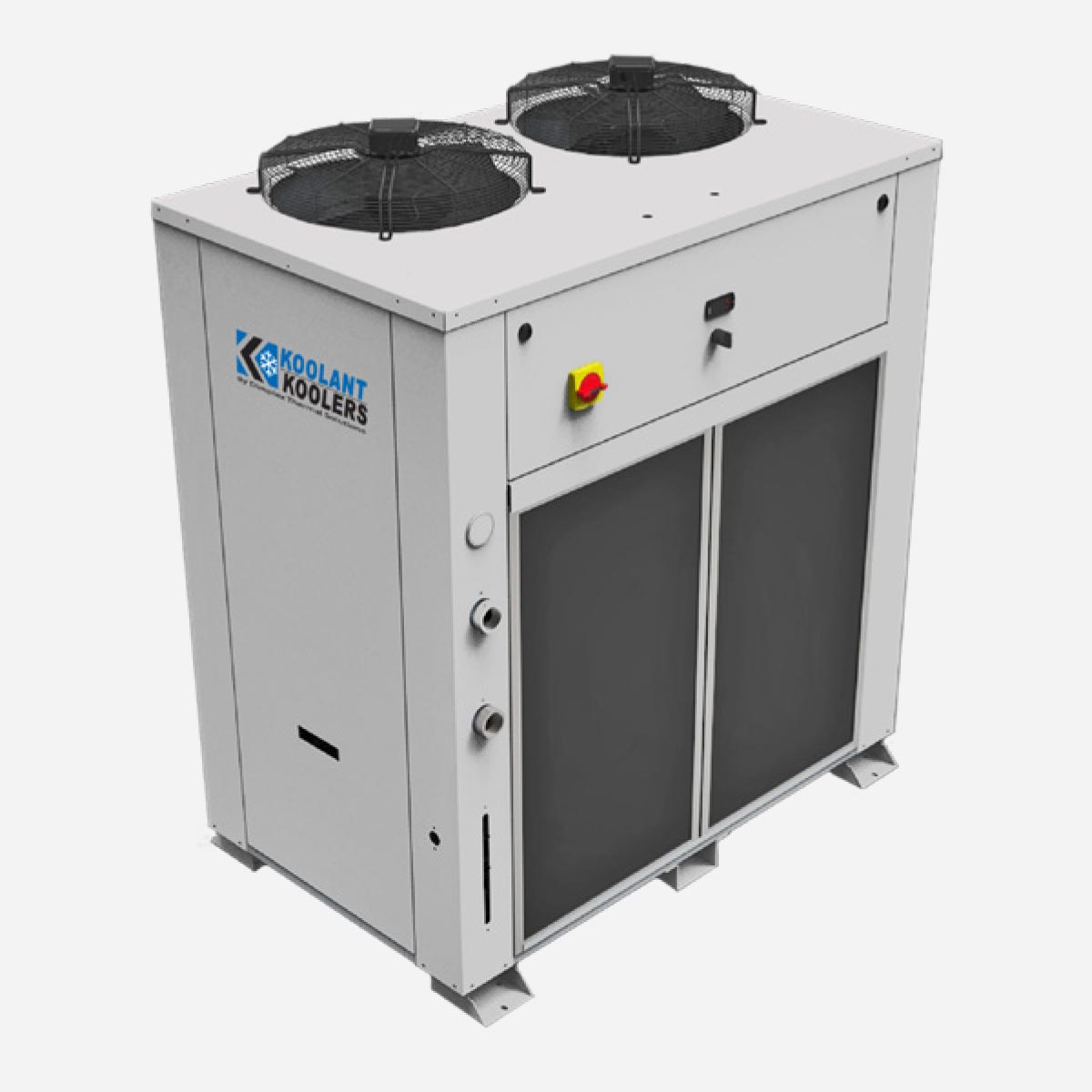

Dimplex Thermal Solutions Koolant Koolers SVI-20000-M S Series Chiller - NEW
This standard closed-loop chiller is the quick, reliable solution for process cooling. It offers indoor or outdoor designs from 3 to 20 tons of cooling with a range of voltage and flow options, making it easily adaptable to virtually any application. It has a digital temperature controller for quick verification, vertical air discharge for operator comfort, cleanable air filters for ease of maintenance, and a brazed plate evaporator for the most efficient thermal transfer available. This unit is a powerhouse of cooling.
Features
- Air-cooled, closed loop
- Indoor or outdoor styles available
- Digital temperature controller
- Hermetic compressor
- Brazed plate evaporator
- Hot gas regulator
- Fused disconnect
- Vertical air discharge
- Cleanable air filters
- Manual fluid bypass
- Fluid level sight glass
- Seamless plastic tank
- Remotely located controller (outdoor units only)
High-Flow Package:
- Auto water fill
- Inlet water filter
- High flow pump
Options:
- Anti-back flow
- Inlet water filter
- Casters (indoor up to 5 tons)
- Service/maintenance packages
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| S Series | SVI-3000-M | SVI-5000-M | SVI-7500-M | SVI-10000-M | SVI-15000-M | SVI-20000-M |
| 3 Ton | 5 Ton | 7.5 Ton | 10 Ton | 15 Ton | 20 Ton | |
| Cooling | ||||||
| Refrigerant | 407C | |||||
| Refrigerant capacity | 7 lbs | 15 lbs | 18 lbs | 21 lbs | 22 lbs | |
| Compressor type | Scroll compressor | |||||
| Compressor hp | 3 | 5 | 7.5 | 10 | 2 @ 7.5 ea | 2 @ 10 ea |
| Condenser type | Fin and tube | |||||
| Fluid Circuit | ||||||
| Cooling capacity 60 Hz | 36,000 BTU | 60,000 BTU | 90,000 BTU | 120,000 BTU | 180,000 BTU | 240,000 BTU |
| Fluid temperature (outlet) | 65°F | |||||
| Temperature stability | 3°F | |||||
| Cooling medium | Water or water/glycol (70/30) | |||||
| Tank capacity | 36 gal | 60 gal | 86 gal | |||
| Fluid connections | 1.5 in | 2 in | ||||
| Wetted component material | Non-ferrous | |||||
| Evaporator | Copper brazed plate with stainless steel plates | |||||
| Climatic Data | ||||||
| Site of installation | Indoor & Outdoor | |||||
| Ambient conditions | Indoor: 50-95°F / Outdoor: -20-95°F | |||||
| Noise level | 70-75 dB(A) | |||||
| Electrical Data | ||||||
| Voltage options | ||||||
| 230/3/60 | • | |||||
| 460/3/60 | • | • | • | • | • | • |
| Certifications/Standards | UL1995 | |||||
| Controller type | Indoor: Carel EZ / Outdoor: Ranco | |||||
| Additional Data | ||||||
| Dimensions w/ casters | 35 x 37 x 68" | 57 x 37 x 68" | 57 x 60 x 68" | |||
| Finish | Indoor: RAL 7035 powdercoat / Outdoor: Galvanized | |||||
| Crated weight | 690 | 1,100 | 3,000 | |||
| Wet weight | 1,100 | 1,900 | 3,900 | |||
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
