EBARA EBT350 - NEW
| Weight | 19.8 lbs |
|---|---|
| Pumping Speed | 330 l/s |
| Ultimate Pressure | 7.50 x 10-9 Torr |
EBARA EBT350 Compound Turbomolecular Vacuum Pump - NEW
The Model EBT350 Series are mechanical ceramic bearing compound turbomolecular pumps. The Model EBT350 series are highly efficient, cost-effective solutions that provide clean and reliable vacuum generation for your high vacuum applications.
Each model in the Model EBT350 range offers exceptional value and is equipped with precision ceramic bearings for years of trouble-free operation (>30,000 hrs before replacement). The new compound design rotors can withstand infrequent shock treatment during high flow or vent conditions. Improved efficiency results in higher pumping speeds and gas compression. This accommodates higher foreline pressures making them ideal for multiple applications including UHV, mobile vacuum carts and analytical systems.

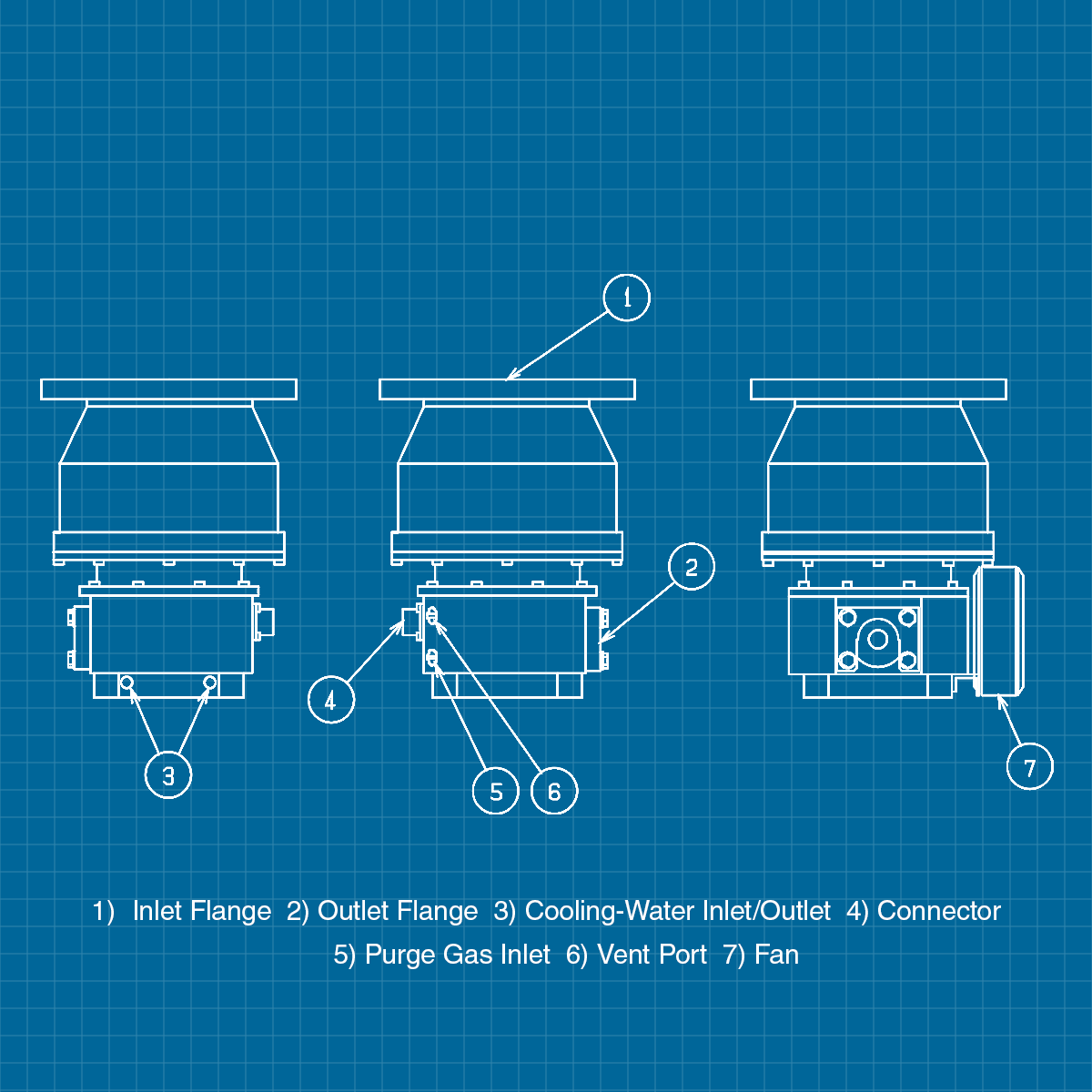

All EBARA EBT Series compound turbomolecular pumps are available with optional water or fan cooling and various flange configurations ISO-K, ISO-F, and Conflat.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Flange | Inlet | CF100 |
| Outlet | KF25 | |
| Volume Flow Rate | N2 (l/s) | 330 |
| N2 with protective screen (l/s) | 310 | |
| H2 (l/s) | 210 | |
| Maximum Compression Ratio | N2 | 1 x 108 |
| H2 | 2 x 103 | |
| Ultimate Pressure | Torr | < 7.5 x 10-9 |
| Pa | < 1 x 10-6 | |
| Maximum Throughput | N2 (sccm) | 500 |
| N2 (Pa x l/s) | 920 | |
| Ar (sccm) | 250 | |
| Ar (Pa x l/s) | 460 | |
| Maximum Backing Pressure | Torr | 2.0 |
| Pa | 260> | |
| Recommended Backing Pump | L/min | ≥ 80 |
| CFM | ≥ 2.8> | |
| Startup Time | min | 2.0 - 2.5 |
| Shutdown Time | min | 5.0 - 6.5 |
| Vibration Level (0 - peak) | μm | ≤ 0.2 |
| Rated Rotational Speed | min-1 | 45,000 |
| Installation Position | Any | |
| Cooling System | Forced Air Cooling | |
| Bearing System | Grease-Lubricated Ball Bearing | |
| Permissible Ambient Temperature | Deg C | 10.0-32.0 |
| Deg F | 50-90 | |
| Major Materials | Al Alloy | |
| Weight | kg | 9.0 |
| lb | 19.8> | |
| Bearing Life | hours | 20,000 |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
EBARA EBT350 Compound Turbomolecular Vacuum Pump - NEW EBT350FCAB CF100 inlet flange, air cooled (fan), pump only EBT350FCWB CF100 inlet flange, water cooled, pump only EBT350FRAB ISO-K100 inlet flange, air cooled (fan), pump only EBT350FRWB ISO-K100 inlet flange, water cooled, pump only
-

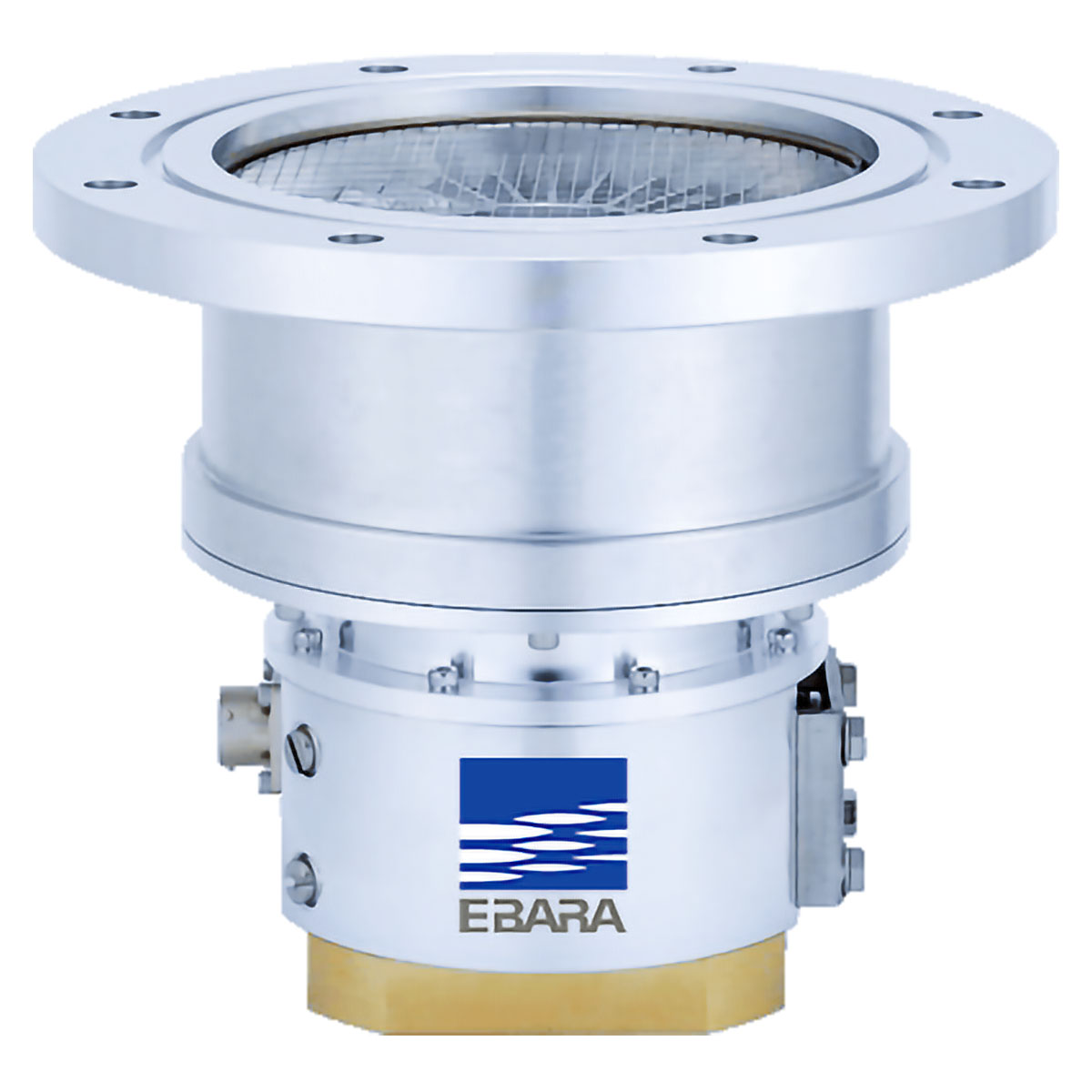

EBARA EBT450 - NEWStarting at $8,830 -
