EBARA EMT2400 Mag Lev - NEW
Call for Price
| Weight | 118 lbs |
|---|---|
| Pumping Speed | 2,400 l/s |
| Ultimate Pressure | < 7.5 x 10-9 Torr |
EBARA EMT2400 Magnetically Levitated Turbomolecular Vacuum Pump - NEW
The Model EMT2400 Series are magnetically levitated bearing compound turbomolecular pumps. The Model EMT2400 series offer highly efficient, cost-effective solutions that provide clean and reliable vacuum generation for your high vacuum applications.
Each model in the Model EMT2400 range offers exceptional value and is equipped with the latest active maglev technology for years of reliable trouble-free operation. Many maglev turbos are still in the field after 20 years operation. Our robust design can withstand infrequent shock treatment during high flow or vent conditions and the special coating of corrosive resistant models can handle the harshest chemistries. Improved rotor efficiency results in higher pumping speeds and gas compression. This accommodates higher foreline pressures making them ideal for multiple applications including semiconductor processes, in line coaters, UHV, beamlines and analytical systems.
All EBARA EMT Series maglev turbomolecular pumps are available with optional water or fan cooling and various flange configurations ISO-K, ISO-F, and Conflat.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Flange | Inlet | ISO-B250 |
| Outlet | NW 40 | |
| Volume Flow Rate | N2 (l/s) | 2,400 |
| N2 with protective screen | 2,300 | |
| Ar (l/s) | 2,100 | |
| H2 (l/s) | 1,100 | |
| Maximum Compression Ratio | N2 | 1 x 108 |
| H2 | 1.4 x 103 | |
| Ultimate Pressure CF / ISO-B | Torr | < 7.5 x 10-9 |
| Pa | < 1 x 10-6 | |
| Allowable Outlet Pressure | Torr | 1.5 |
| Pa | 200 | |
| Maximum Throughput | N2 (sccm) | 3,000 |
| N2 (Pa x l/s) | 5,520 | |
| Ar (sccm) | 2,000 | |
| Ar (Pa x l/s) | 3,680 | |
| Revolution Speed | RPM | 31,200 |
| Startup Time | Minutes | 4 - 5 |
| Shutdown Time | Minutes | 4 - 5 |
| Installation Position | Any | |
| Vibration Level (0 - peak)7 | μm | < 0.005 |
| Pump Bake Out Temperature | Deg C | Max 120 |
| Bearing System | 5-axis magnetic bearing | |
| Cooling System | Water/Air | |
| Cooling Water Flow Rate | L/min | 1.5 |
| Recommended Backing pump | L/min | ≥ 500 |
| N2 Gas Throughput for Purging | sscm | 20 |
| Pa-l/sec | 36.8 | |
| Weight ISO-B/CF | lb | 99/118 |
| kg | 45/54 | |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
EBARA EMT2400 Magnetically Levitated Turbomolecular Vacuum Pump - NEW EMT2400MBAB ISO-F250 inlet, air cooled (fan) EMT2400MBAC ISO-F250 inlet, corrosive resistant, air cooled (fan) EMT2400MBWB ISO-F250 inlet, water cooled EMT2400MBWC ISO-F250 inlet, corrosive resistant, water cooled EMT2400MIBWC ISO-F250 inlet, corrosive resistant, heated, water cooled
-

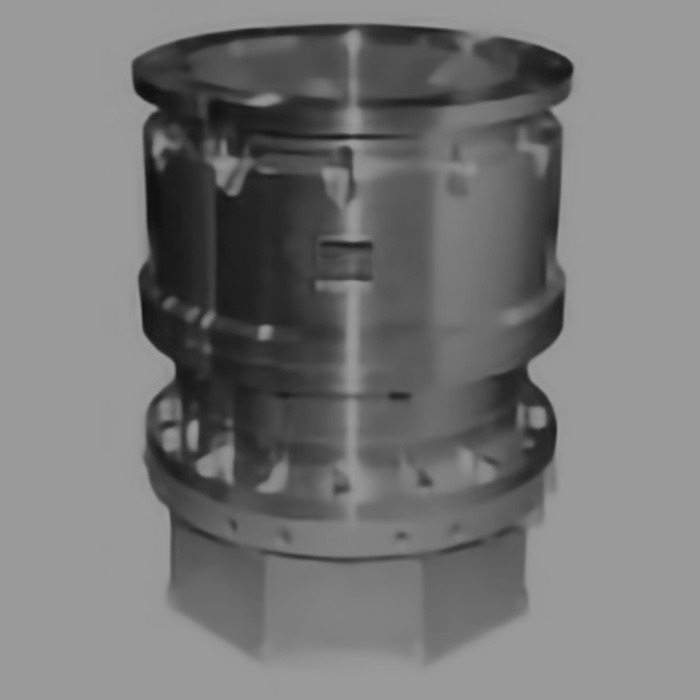

EBARA EMT2200 Mag Lev - NEWCall for Price
