EBARA EMT907 Mag Lev - NEW
Call for Price
| Weight | 99 lbs |
|---|---|
| Pumping Speed | 900 l/s |
| Ultimate Pressure | < 7.5 X 10-9 |
EBARA EMT907 Magnetically Levitated Turbomolecular Vacuum Pump - NEW
The EMT Series offers five major types of turbomolecular pumps - temperature-controlled, corrosion resistant, ultra low vibration, radiation resistant, and ultra high vacuum.
The EMT Series turbomolecular pumps features a wide pressure range with maximum back pressure up to 3 Torr.
The temperature controlled model turbomolecular pumps reduce the rate condensation of the byproduct and process effluent build up commonly found inside a turbomolecular pump. The patented thermal insulation structure with integrated temperature management system is the most energy efficient temperature controlled turbomolecular pump on the market today.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Models | EMT397 | EMT427 | EMT907 | EMT1307 | EMT2400 |
| Pumping speed N2 (l/s) | 340 | 400 | 900 | 1,300 | 2,400 |
| Ultimate pressure (Torr) | < 7.5 X 10-9 | ||||
| Recommended backing pump (l/min) | 250 | 500 | |||
| Inlet flange diameter | DN100 | DN160 | DN200 | DN250 | |
| Throughput N2 (sccm) | 2,000 | 3,000 | |||
| Startup time (min) | < 3 | < 5 | |||
| Stop time (min) | < 5 | ||||
| Height in mm | 288 - 294 | 250 - 255 | 401 - 407 | 349 - 410 | 340 |
| Size in mm (diameter) | Ø186 | Ø180 | Ø264 | Ø310 | |
| Weight in kg | 16 - 19 | 37 - 45 | 45 | ||
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
EBARA EMT907 Magnetically Levitated Turbomolecular Vacuum Pump - NEW EMT907MBAB ISO-F160 inlet, air cooled (fan) EMT907MBAC ISO-F160 inlet, corrosive, air cooled (fan) EMT907MBWB ISO-F160 inlet, water cooled EMT907MBWC ISO-F160 inlet, corrosive, water cooled EMT907MCAB CF160 inlet, air cooled (fan) EMT907MCAC CF160 inlet, corrosive, air cooled (fan) EMT907MCWB CF160 inlet, water cooled EMT907MCWC CF160 inlet, corrosive, water cooled EMT907MIBWC ISO-F160 inlet, corrosive resistant, heated, water cooled
-

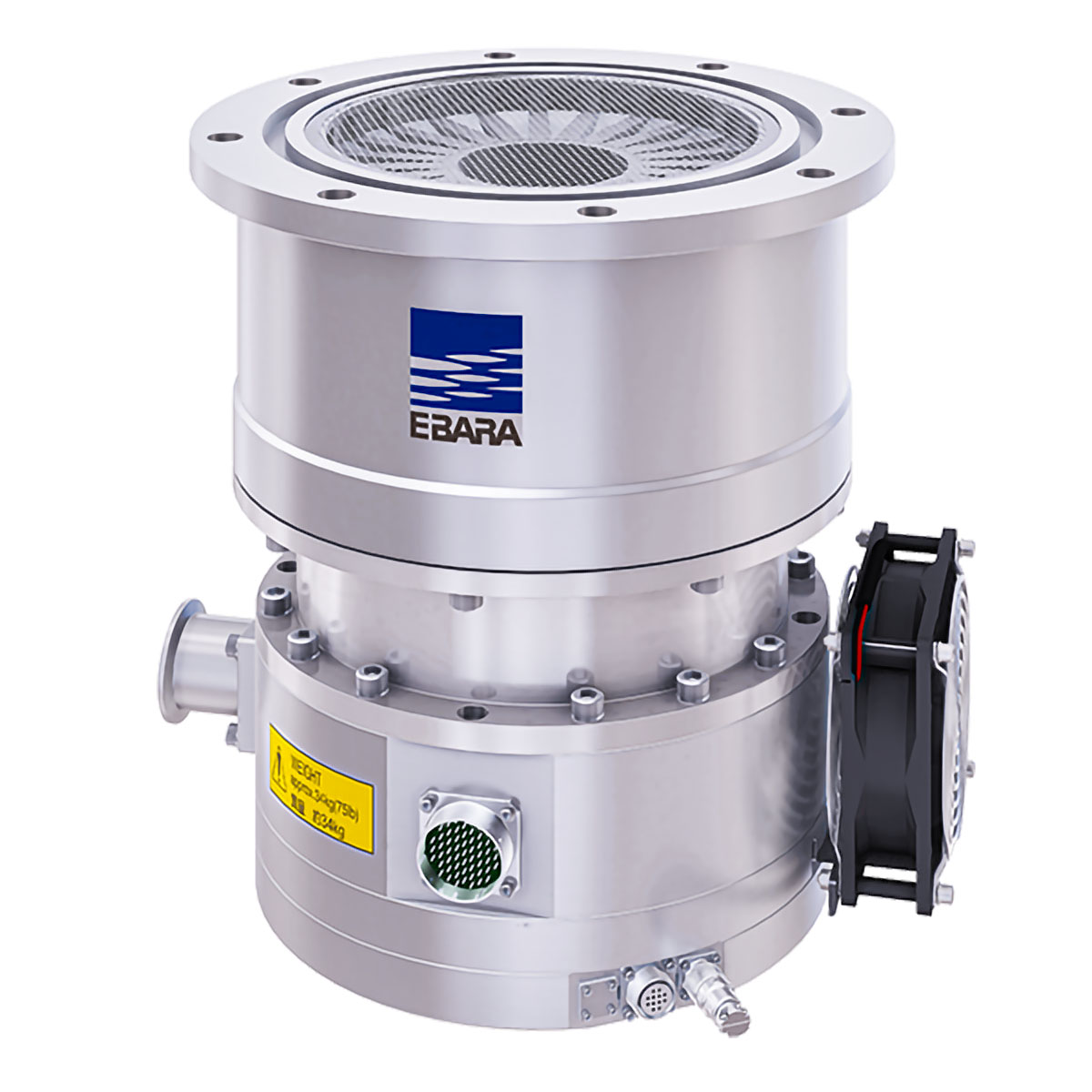

EBARA EMT1307 Mag Lev - NEWCall for Price
