EBARA EV-A06 - NEW
$10,250
In stock
SKU
NEW_EV-A06
| Weight | 119 lbs |
|---|---|
| Pumping Speed | 600 l/min |
| Ultimate Pressure | 1 x 10-2 mbar |
EBARA EV-A06 Air-Cooled Dry Vacuum Pump - NEW

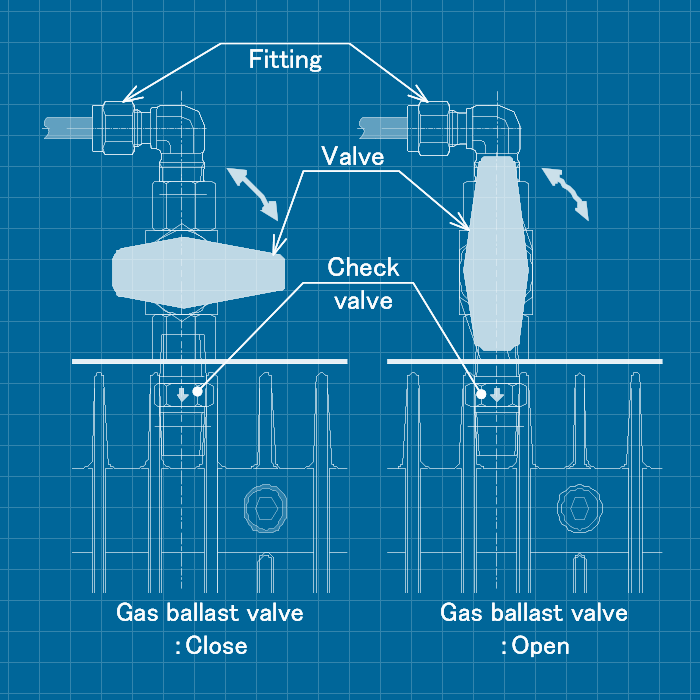

The Model EV-A06 air-cooled dry pump offers high pumping speed (21.6 cfm) and high water vapor pumping (350 g/hr) when used with the optional gas ballast valve. The pump is available with optional casters/levelers.
Features
- Small air-cooling pump
- No-contact design
- High pumping speeds at atmosphere
- Highest water vapor pumping of any air-cooled dry pump
- UL, CE, and NRTL rated
- Single- and three-phase versions available
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Max pumping speed | 600 l/min |
| Atmospheric open pumping speed | 480 l/min |
| Ultimate pressure w/o gas ballast | 1.0 Pa |
| Ultimate pressure w/ gas ballast | 10.0 |
| Max inlet pressure | Atmospheric pressure |
| Max water vapor pumping rate | 350 g/hr |
| Inlet connection | NW40 |
| Outlet connection | NW25 |
| Approx. power at ultimate pressure | 0.59 kW |
| Weight | 54 kg / 119 lbs |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
EBARA EV-A06 Air-Cooled Dry Vacuum Pump - NEW EV-A06-1 / EVA061 single-phase 100V EV-A06-2 / EVA062 1-phase 200V EV-A06-3 / EVA063 3-phase 200V
