Edwards Diffstak 100/300M - NEW
Call for Price
| Weight | 27 lbs |
|---|---|
| Pumping Speed | 280 l/s-1 |
| Ultimate Pressure | 1,300 mbar |
Edwards Diffstak 100/300M Vapour Diffusion Vacuum Pump - NEW
The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation. The Edwards Diffstak 100 (ISO-100 inlet) design has been proven over many years with thousands of pumps installed. This pump has a manually operated high vacuum isolation valve and is supplied with: NW-25 elbow, NW-25 centering-ring, NW-25 clamp, water pipe couplings and ferrules, inlet ISO-100 Co-Seal.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed | |
| N2 | 280 l/s |
| H2 | 500 l/s |
| Min. backing pump displacement | 5 m3h-1 |
| Recommended backing pumping | RV5 or RV8 |
| Recommended fluid | Santovac® 5 |
| Fluid charge (dry) | 125 ml |
| Inlet | ISO-100 |
| Exhaust | NW-25 |
| Cooling water connection | 6 mm compression fittings |
| Heater power | 0.65 kW |
| Minimum cooling-water flow at 20°C | 60 l/h |
| Weight | 12 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards Diffstak Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Diffstak 100/300M Vapour Diffusion Vacuum Pump - NEW B34631976 / B346-31-976 110-125V single-phase 50/60Hz B34631977 / B346-31-977 210-225V 1-phase 50/60Hz B34631978 / B346-31-978 230-250V 1-phase 50/60Hz
-

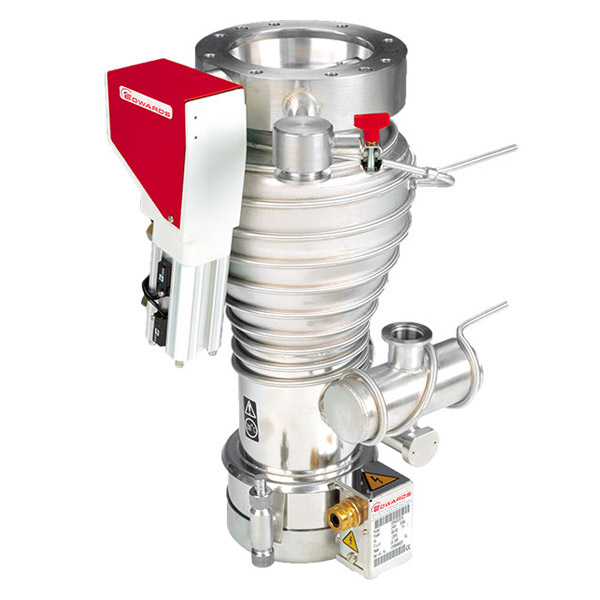

Edwards Diffstak 100/300P - NEWCall for Price
-
