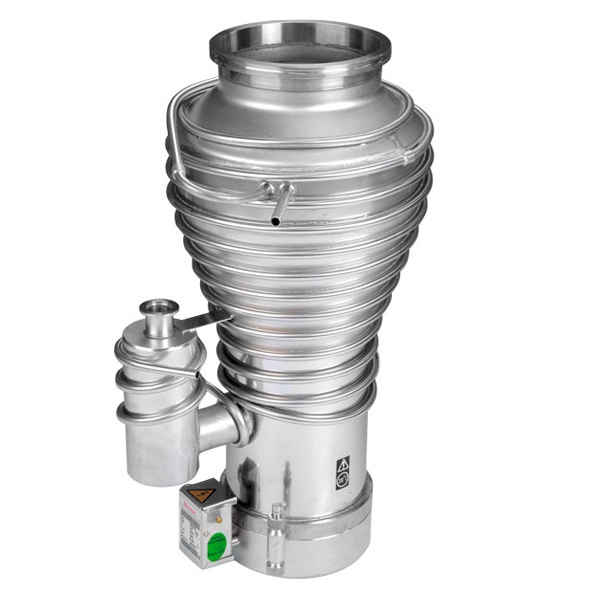

Edwards Diffstak 160/700P - NEW
Call for Price
| Weight | 57.4 lbs |
|---|---|
| Pumping Speed | 700 l/s-1 |
| Ultimate Pressure | 1300 mbar |
Edwards Diffstak 160/700P Vapour Diffusion Pump - NEW
The compact water-cooled Diffstak pumps with an integral cooled baffle offer exceptionally clean pumping with very low backstreaming, reduced outgassing, and a reduction in the number of elastomer seals required for installation. The Edwards Diffstak 160 (ISO-160 inlet) design has been proven over many years with thousands of pumps installed. This pump has a pneumatically actuated high vacuum isolation valve and is supplied with: NW-25 elbow, NW-25 centering-ring, NW-25 clamp, water pipe couplings and ferrules, inlet ISO-160 Co-Seal.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Pumping speed | |
| N2 | 700 l/s |
| H2 | 1,300 l/s |
| Min. backing pump displacement | 12 m3h-1 |
| Recommended backing pumping | RV12 |
| Recommended fluid | Santovac 5 |
| Fluid charge (dry) | 255 ml |
| Inlet | ISO-160 |
| Exhaust | NW-25 |
| Cooling water connection | 10 mm compression fittings |
| Heater power | 1.35 kW |
| Minimum cooling-water flow at 20°C | 115 l/s |
| Weight | 26 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards Diffstak Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards Diffstak 160/700P Vapour Diffusion Pump - NEW B34832976 / B348-32-976 110-125V single-phase 50/60Hz B34832976 / B348-32-976 110-125V 1-phase 50/60Hz B34832976 / B348-32-976 110-125V 1-phase 50/60Hz
