Edwards E2M2 - REBUILT
Call for Price
In stock
SKU
REBUILT_E2M2
| Weight | 40.10 lbs |
|---|---|
| Pumping Speed | 2.4 m3/h |
| Ultimate Pressure | 1 x 10-3 mbar |

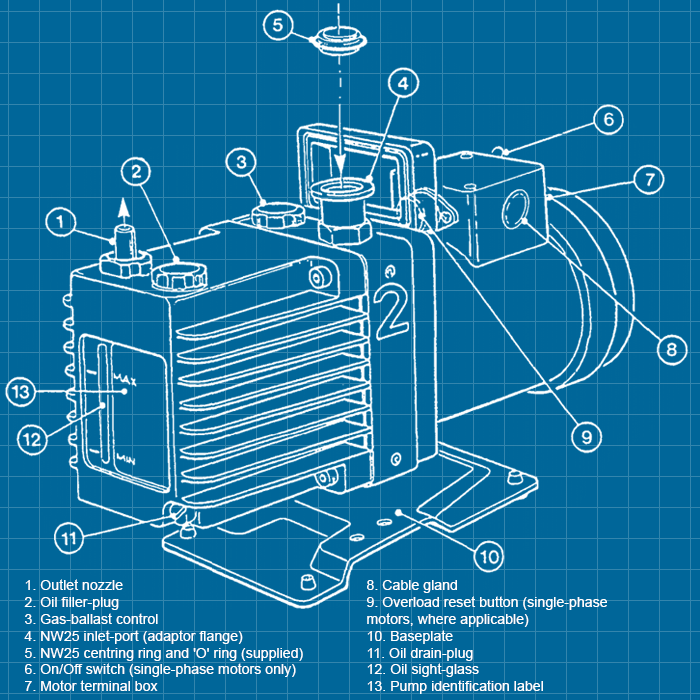

Edwards E2M2 Two Stage Rotary Vane Vacuum Pump - REBUILT
The E2M2, E1/E2M5 and 8, and E2M12 pumps are single and two-stage, direct drive, sliding vane pumps. The pumps are oil-sealed and designed for reliable, long-term operation in both laboratory and industrial environments. The pumps are free-standing units. The drive is provided through a flexible coupling by a single-phase or three-phase (four pole) motor.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 1.6 cfm |
| 60 Hz | 2 cfm |
| Speed (Pneurop 6602) | |
| 50 Hz | 1.4 cfm / 2.4 m3/h |
| 60 Hz | 1.7 cfm / 2.9 m3/h |
| Ultimate vacuum | |
| w/out gas ballast (partial pressure) | 1.9 x 10-4 Torr / 2.5 x 10-4 mbar |
| w/out gas ballast (total pressure) | 7.5 x 10-4 Torr / 1 x 10-3 mbar |
| w/ gas ballast (partial pressure) | 2.3 x 10-2 Torr / 3 x 10-2 mbar |
| Inlet connection | NW25 flange w/ 0.59 in/15mm nozzle alternative |
| Outlet connection | Nozzle 0.59 in/15mm external diameter removable from 3/4" BSP tapped hole |
| Maximum permitted pressure at outlet | 7.3 psi gauge |
| Maximum inlet pressure for water vapour | 11.3 Torr |
| Maximum water vapour pumping rate | 0.07 lbh-1 |
| Weight | 40.1 lbs |
| Oil capacity - max | 0.55 litre |
| min | 0.35 litre |
| Recommended oil | Supergrade A |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards E2M Series - REBUILT | Instruction Manual | Download |
|
|
Edwards E2M2, E2M5, E2M8 & E2M12 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M2 Two Stage Rotary Vane Vacuum Pump - REBUILT CODE NO. A360-01-981 / A36001981 E2M2 115 or 230V 50/60Hz single-phase CODE NO. A360-01-982 / A36001982 E2M2 208/230/460V 50/60Hz three-phase
