Edwards E2M80 - NEW
Call for Price
In stock
SKU
NEW_E2M80
| Weight | 229.3 lbs |
|---|---|
| Motor Power | 2.2 hp |
| Pumping Speed | 74 m3/h |
| Ultimate Pressure | 3.0 x 10-3 Torr |

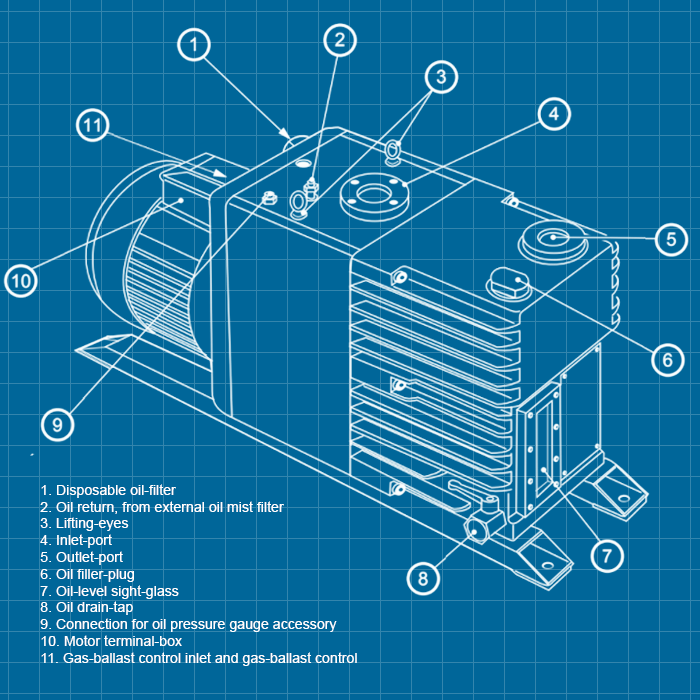

Edwards E2M80 Two Stage Rotary Vane Vacuum Pump - NEW
Edwards E2M series two stage oil sealed rotary vane vacuum pumps are renowned for their high ultimate vacuum, rapid pumping speeds, quiet operation and ability to handle water vapour. These direct drive rotary vane pumps are inherently compact and vibration free, and with their finger-proof fan and coupling housings they offer excellent operator protection.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Displacement (swept volume) | |
| 50 Hz | 80 m3h-1 / 47.1 ft3min-1 |
| 60 Hz | 96 m3h-1 / 56.5 ft3min-1 |
| Speed (Pneurop 6602) | |
| 50 Hz | 74 m3h-1 / 43.6 ft3min-1 |
| 60 Hz | 90 m3h-1 / 53 ft3min-1 |
| Number of stages | 2 |
| Ultimate vacuum | |
| w/out gas ballast (total pressure) | 1 x 10-3 mbar / 7.7 x 10-4 Torr |
| w/ gas ballast (partial pressure) | 5 x 10-3 mbar / 3.8 x 10-3 Torr |
| Ultimate w/ Fomblin® | |
| w/out gas ballast | 1 x 10-2 mbar / 7.7 x 10-3 Torr |
| Inlet connection | ISO40 |
| Outlet connection | 25 mm flange suitable for NW25 |
| Maximum permitted pressure at outlet | 0.5 bar gauge |
| Maximum inlet pressure for water vapour | 5 mbar / 3.8 Torr |
| Maximum water vapour pumping rate | 0.3 kg h-1, 0.7 lb h-1 |
| Motor power | |
| 50 Hz | 2.2 kW / 3 hp |
| 60 Hz | 3 kW / 4 hp |
| Motor protection rating | IP55 |
| Weight | 102 kg / 224 lbs |
| Noise | 70 dB(A) @ 50 Hz |
| Standard oil capacity | |
| maximum | 6.3 litre |
| minimum | 4 litre |
| PFPE oil capacity | |
| maximum | 4 litre |
| minimum | 2.2 litre |
| Recommended oil | Ultragrade 70 |
| PFPE prepared version | Fomblin® Y06/6 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards E2M40 & E2M80 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL E2M80 Two Stage Rotary Vane Vacuum Pump - NEW
CODE NO. A365-01-934 / A36501934 E2M80 200/380V three-phase 50/60Hz
CODE NO. A365-01-935 / A36501935 E2M80 220-240/380-415V 3-phase 50Hz
CODE NO. A365-02-982 / A36502982 E2M80 208-230/440-460V 3-phase 60Hz
A365-11-934 / A36511934 E2M80FX 200/380V 3-phase 50/60Hz
A365-11-935 / A36511935 E2M80FX 220-240/380-415V 3-phase 50Hz
A365-12-982 / A36512982 E2M80FX 208-230/440-460V 3-phase 60Hz
A365-18-993 / A36518993 E2M80T4 400V 3-phase 50Hz
Atlas Copco GVD 80 3-phase 230/460V 50/60Hz
