Edwards EH-250 - REBUILT

Name: Edwards EH-250 - REBUILT
Brand: Edwards
SKU: REBUILT_ EH250

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_ EH250

Request For Quote

Weight	152 lbs
Motor Power	3 hp
Pumping Speed	216 m³/h
Ultimate Pressure	4 x 10^-3 mbar

Dimensions

Description

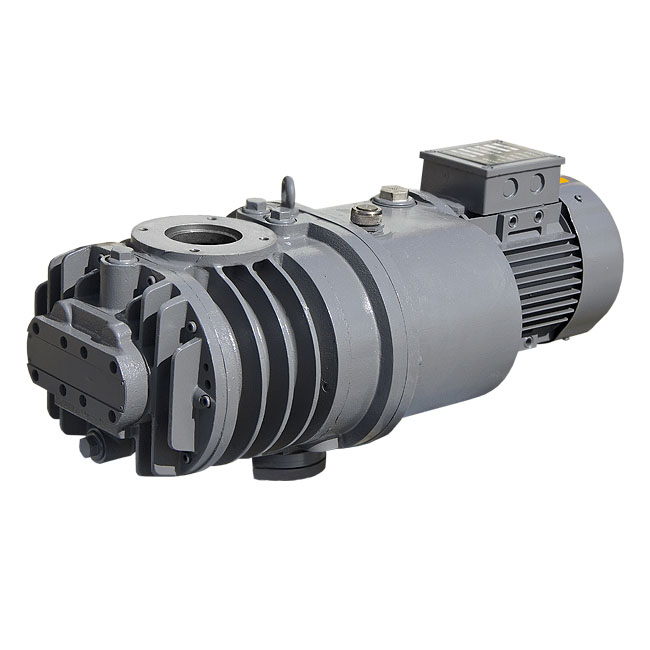

Edwards EH-250 Mechanical Vacuum Blower - REBUILT

Rebuilt with one year warranty. View our inventory of Edwards blowers.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Pumping speed (N₂) 50/60 Hz	3,000 / 3,600 l/min
Pumping speed (N₂) 50/60 Hz	180 / 216 m³/h
Ultimate pressure 50/60 Hz	4 x 10^-3 / 3 x 10^-3mbar
Ultimate pressure 50/60 Hz	0.4 / 0.3 Pa
Water consumption	3.5 l/min
Nitrogen consumption	10-13 slm
Nitrogen consumption	17-22 Pa m³/sec
Voltages ranges	200-220/380-415 V
Motor power, installed	1.5+2.2 kW
Weight, approx.	330 kg
Dimensions	895 x 400 x 485 mm
Inlet flange size	DN 50 KF
Outlet flange size	DN 40 KF

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards EH Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards EH-250 Mechanical Vacuum Blower - REBUILT

A30151945 / A301-51-945  EH-250  50Hz Industrial, 220-240V or 380-415V, three-phase, 2.2kW
A30152946 / A301-52-946  EH-250  60Hz Industrial, 208-230V or 460V, 3-phase, 2.2kW
A30151935 / A301-51-935  EH-250  50Hz Standard, 220-240V or 380-415V, 3-phase, 1.5kW
A30153935 / A301-53-935  EH-250  50Hz PFPE, 220-240V or 380-415V, 3-phase, 1.5kW
A30152936 / A301-52-936  EH-250  60Hz Standard, 208-230V or 460V, 3-phase, 1.5kW
A30154936 / A301-54-936  EH-250  60Hz PFPE, 208-230V or 460V, 3-phase, 1.5kW
