Edwards EH-500 - REBUILT

Name: Edwards EH-500 - REBUILT
Brand: Edwards
SKU: REBUILT_EH500

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_EH500

Request For Quote

Weight	233 lbs
Motor Power	3 hp
Pumping Speed	505 m³/h
Ultimate Pressure	8.3 x 10¹ Torr

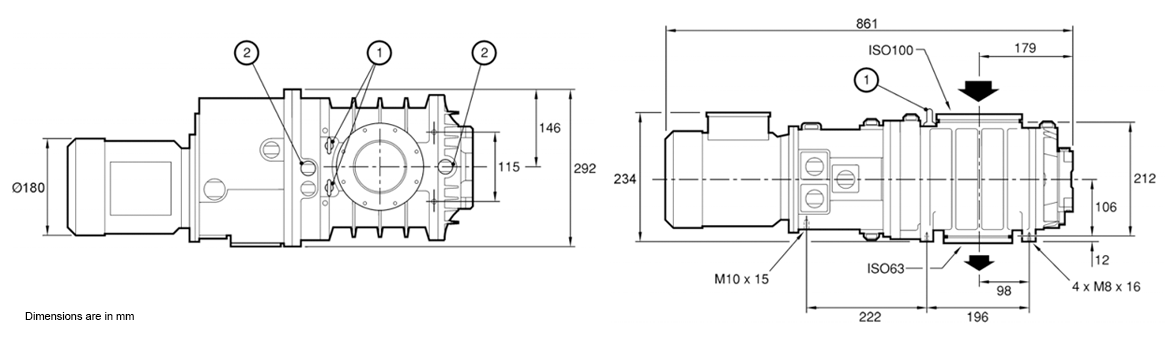

Dimensions

Description

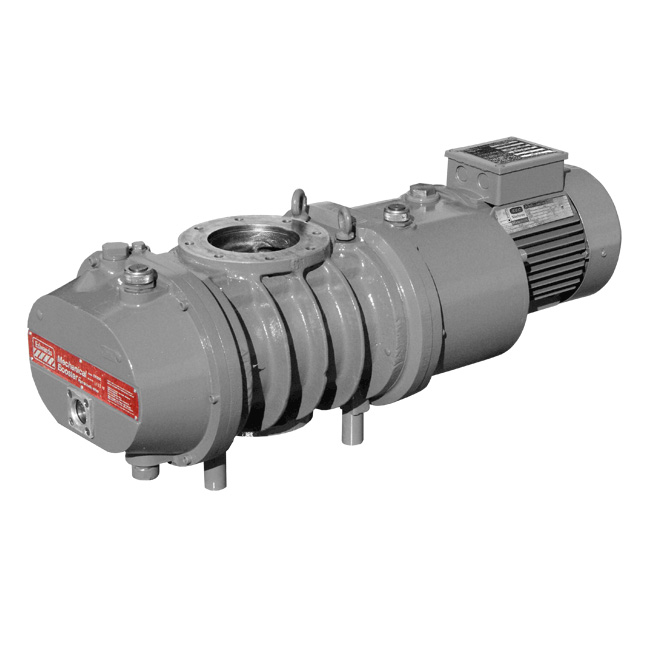

Edwards EH-500 Mechanical Vacuum Blower - REBUILT

Rebuilt with one year warranty. View our inventory of Edwards blowers.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Displacement (swept volume)
50 Hz	505 m³h^-1 / 300 ft³min^-1
60 Hz	605 m³h^-1 / 335 ft³min^-1
Effective pumping speed with backing pump
E2M40	350 m³h^-1 / 206 ft³min^-1
E2M80	400 m³h^-1 / 236 ft³min^-1
Pressure differential across pump
50 Hz	110 mbar / 83 Torr
60 Hz	90 mbar / 68 Torr
Inlet connection	ISO100
Outlet connection	ISO63
Rotating speed
50 Hz	2,900 rpm
60 Hz	3,500 rpm
Operating continuous inlet pressure	1,000 mbar / 760 Torr
Maximum outlet pressure	1,000 mbar / 760 Torr
Recommended backing pumps	GV80, E2M80, nES200, nES300
Motor power
Hydrocarbon	2.2 kW / 3 hp
PFPE	2.2 kW / 3 hp
ATEX	2.2 kW / 3 hp
Explosion proof	2.2 kW / 3 hp
Ambient temp. range
Operating	5 to 40°C / 40 to 104°F
Storage	-10 to 80°C / 14 to 176°F
Max. operating humidity	90% RH
Recommended oil
Standard version	Ultragrade 20
PFPE version	Fomblin YVAC 16/6
Oil capacity
Coupling cover	1.5 l / 1.6 qt
Shaft seal reservoir	0.125 l
Weight	106 kg / 233 lb

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards EH Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards EH-500 Mechanical Vacuum Blower - REBUILT

A30273935 / A302-73-935  EH-500  50Hz PFPE, 220-240V or 380-415V, three-phase, 1.5kW
A30274936 / A302-74-936  EH-500  60Hz PFPE, 208-230V or 460V, 3-phase, 1.5kW
A30271945 / A302-71-945  EH-500  50Hz Industrial, 220-240V or 380-415V, 3-phase, 2.2kW
A30272946 / A302-72-946  EH-500  60Hz Industrial, 208-230V or 460V, 3-phase, 2.2kW
