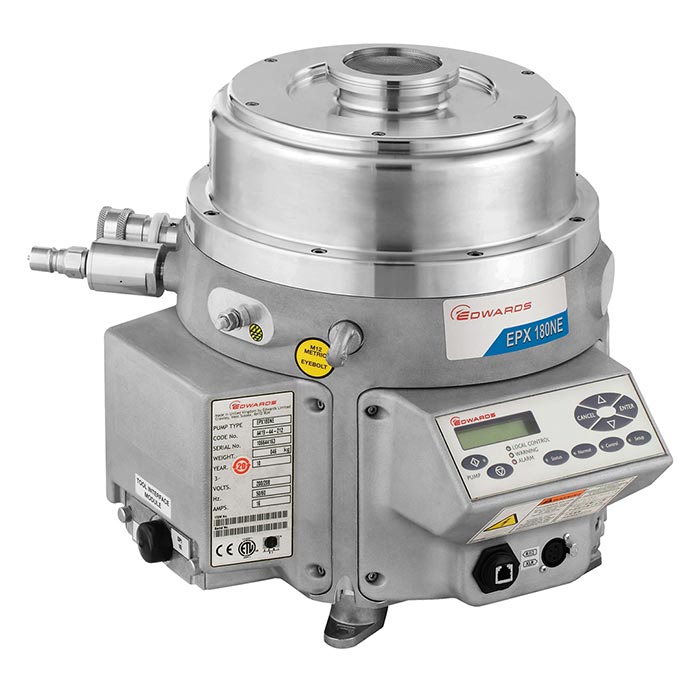

Edwards EPX180NE - NEW
Call for Price
In stock
SKU
NEW_EPX180NE
| Weight | 96 lbs |
|---|---|
| Pumping Speed | 170 m3h-1 |
| Ultimate Pressure | <1 x 10-4 mbar |
Edwards EPX180NE 208V Semiconductor Dry Vacuum Pump - NEW
The new compact EPX180 high vacuum drypump offers enhanced performance with reduced cost of ownership. Using a unique patent protected mechanism the EPX180 is capable of pumping from atmosphere to ultimate pressures of < 7.5 x 10-5 Torr. The EPX NE series of pumps has an End User Controller (EUC). The End User Controller enables local control for stand-alone use as well as the ability to connect to a fab-wide network for remote control and monitoring.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak Speed | 170 m3h-1 / 105 ft3min-1 / 2,835 lmin-1 |
| Ultimate Vacuum | < 1 x 104 mbar / < 7.5 x 10-5 / < 1 x 10-2 Pa Torr |
| Warm up time (to nominal performance) | 30 min |
| Inlet Flange | ISO63 |
| Outlet flange | NW25 |
| Noise | < 59 dB(A) |
| Minimum cooling water flow rate | 2 lmin-1 |
| Cooling water temperature | 15 - 35°C |
| Nitrogen supply interface | 1/4 in (6.5 mm) tube |
| Nitrogen supply pressure | 3 x 105 - 7 x 105 pa |
| Minimum nitrogen purity | 99.95% |
| Electrical supply | 400 V, 50/60 Hz 3-phase |
| Power at ultimate | 1.4 kW |
| Rated motor power | 3.0 kW |
| TIM | None |
| Weight | 43.5 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards EPX HiVac Series | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards EPX180NE 208V Semiconductor Dry Vacuum Pump - NEW A41944014 / A419-44-014 EPX180NE 400V No TIM 3/8 water connector A41944212 / A419-44-212 EPX180NE 208V SPI TIM 3/8 water connector A41944224 / A419-44-224 EPX180NE 400V SPI TIM 1/4 water connectors A41944412 / A419-44-412 EPX180NE 208V TEL TIM 3/8 water connector A41944414 / A419-44-414 EPX180NE 400V TEL TIM 3/8 water connectors A41944424 / A419-44-424 EPX180NE 400V TEL TIM 1/4 water connectors A41944512 / A419-44-512 EPX180NE 208V LAM TIM 3/8 water connector A41944514 / A419-44-514 EPX180NE 400V LAM TIM 3/8 water connectors A41944712 / A419-44-712 EPX180NE 208V MCM TIM 3/8 water connector A41944714 / A419-44-714 EPX180NE 400V MCM TIM 3/8 water connectors A41944724 / A419-44-724 EPX180NE 400V MCM TIM 1/4 water connectors A41944012 / A419-44-012 EPX180NE 208V No TIM 3/8 water connector
OBSOLETED A40902977 / A409-02-977 IPX100 A40902973 / A409-02-973 IPX100 A40904977 / A409-04-977 IPX100A A40904973 / A409-04-973 IPX100A A40924977 / A409-24-977 IPX180A A40924973 / A409-24-973 IPX180A A40914977 / A409-14-977 IPX500A A40914973 / A409-14-973 IPX500A
