Edwards EPX500L - NEW
Call for Price
In stock
SKU
NEW_EPX500L
| Weight | 100 lbs |
|---|---|
| Pumping Speed | 500 m3h-1 |
| Ultimate Pressure | <1 x 10-6 mbar |

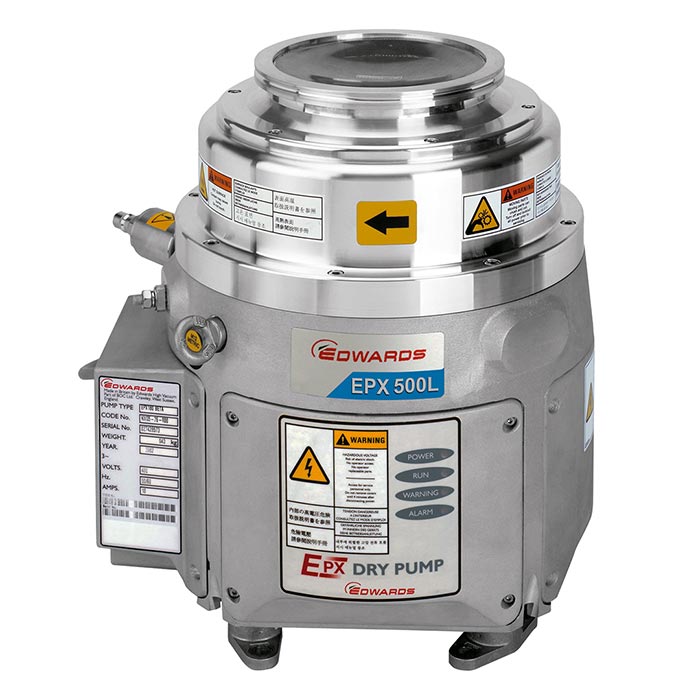

Edwards EPX500L 208V Semiconductor Dry Vacuum Pump - NEW
The new compact EPX500 high vacuum drypump offers enhanced performance with reduced cost of ownership. Using a unique patent protected mechanism the EPX500 is capable of pumping from atmosphere to ultimate pressures of < 7 x 10-7 Torr. Based on the successful award winning IPX range, the modular EPX500 offers outstanding performance in a package that is 20% lighter, 30% smaller and requires 40% less power than the IPX.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak Speed | 500 m3h-1 / 295 ft3min-1 / 8,338 lmin-1 |
| Ultimate Vacuum | < 1 x 10-6 mbar / < 7 x 10-7 Torr / < 1 x 10-4 Pa |
| Warm up time (to nominal performance) | 30 min |
| Inlet Flange | ISO160 |
| Outlet flange | NW25 |
| Noise | < 59 dB(A) |
| Minimum cooling water flow rate | 2 lmin-1 |
| Cooling water temperature | 15 - 35°C |
| Nitrogen supply interface | 1/4 in (6.5 mm) tube |
| Nitrogen supply pressure | 3 x 105 - 7 x 105 pa |
| Minimum nitrogen purity | 99.95% |
| Electrical supply | 200/208 V, 50/60 Hz 3-phase |
| Power at ultimate | 1.4 kW |
| Rated motor power | 3.0 kW |
| TIM | C3 |
| Weight | 45.2 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards EPX HiVac Series | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards EPX500L 208V Semiconductor Dry Vacuum Pump - NEW A41951212 / A419-51-212 EPX500L 208V SPI TIM 3/8 water connector A41951214 / A419-51-214 EPX500L 400V SPI TIM 3/8 water connectors A41951222 / A419-51-222 EPX500L 208V SPI TIM 1/4 water connector A41951314 / A419-51-314 EPX500L 400V E73 TIM 3/8 water connectors A41951514 / A419-51-514 EPX500L 400V LAM TIM 3/8 water connectors A41951704 / A419-51-704 EPX500L 400V MCM TIM No water connectors A41951712 / A419-51-712 EPX500L 208V MCM TIM 3/8 water connector A41951714 / A419-51-714 EPX500L 400V MCM TIM 3/8 water connectors A41951112 / A419-51-112 EPX500L 208V C3 TIM 3/8 water connector A41951002 / A419-51-002 EPX500L 200V A41951004 / A419-51-004 EPX500L 400V A41951014 / A419-51-014 EPX500L 400V SPI TIM 3/8 water connectors
OBSOLETED A40902977 / A409-02-977 IPX100 A40902973 / A409-02-973 IPX100 A40904977 / A409-04-977 IPX100A A40904973 / A409-04-973 IPX100A A40924977 / A409-24-977 IPX180A A40924973 / A409-24-973 IPX180A A40914977 / A409-14-977 IPX500A A40914973 / A409-14-973 IPX500A
