Units |
GXS160 |
GXS160/1750 |
|
| Peak Pumping Speed |
m3h-1 (cfm) |
160 (94) |
1200 (706) |
|
| Ultimate Pressure (without purge) |
mbar (Torr) |
7x10-3 (5.3x10-3) |
7x10-4 (5.3x10-4) |
|
| Full Load Power |
@ ultimate pressure |
kW (hp) |
3.8 (5.1) |
5.1 (6.8) |
|
| @ peak pumping load |
kW (hp) |
5.0 (6.7) |
7.4 (9.9) |
|
| Electrical |
Supply options |
High volt |
380-460V 3Ø 50/60Hz |
|
| Low volt |
200-230V 3Ø 50/60Hz |
|
| Connection |
High volt |
Harting Han K 4/4-F |
|
| Low volt |
|
| Vacuum Couplings |
Inlet |
|
ISO63 |
ISO100 |
|
| Exhaust |
|
NW40 |
|
| Cooling Water |
Supply pressure (max) |
bar (psig) |
6.9 (100) |
|
| DP across pump (min) |
bar (psig) |
1.0 (14.7) |
|
| Flow @ min DP |
lmin-1 (gal/min) |
4.0 (1.1) |
7.0 (1.9) |
|
| Temperature |
°C (°F) |
5-40 (41-104) All variants |
|
| |
| Connection |
|
3/8" BSP Male (G 3/8”) |
|
| Purge Gas* |
Pressure |
bar (psig) |
2.5-6.9 (36-100) |
|
| Light Duty |
sl/min |
12 |
|
| Medium Duty |
sl/min |
18-52 |
|
| Connection |
|
Swagelok® Ø ¼” tube with olive |
|
| High Flow Purge/ Solvent Flush |
Supply pressure |
bar (psig) |
2.5-6.9 (36-100) |
|
| Control valve connection |
|
Swagelok® Ø 3/8" tube with olive |
|
| Filter connection |
|
½" NPT Male |
|
| Solvent connection |
|
3/8" BSP Male (G 3/8") |
|
| Mass |
kg (lbs) |
305 (672) |
475 (1047) |
|
| Noise (with suitable exhaust pipe) |
dB(A) |
<64 |
|
| Operating Temperature |
°C (°F) |
5-40 (41-104) |
|
| Exhaust Back Pressure (MAX) |
mbar (psia) |
1400 (20) |
|
| System IP rating |
Standard |
31 |
|
| Lubrication |
Type |
|
PFPE Drynert® 25/6 |
|
| Volume |
l (gal) |
0.7 (0.2) |
1.4 (0.4) |
|
Monitoring &
Control |
Standard |
Control |
Front panel "Dashboard"
Serial - RS232 |
|
| Monitoring |
Ethernet Webserver |
|
| Option |
Control |
Parallel - MCM MicroTIM |
|
| Control & Monitoring |
Profibus DP
Pump Display Terminal (PDT) |
|
| Monitoring |
FabWorks® |
|
| *Pump combinations |
Light duty |
Shaft Seal Purge only |
|
| Medium duty |
Shaft Seal Purge, High Vac Purge, Inlet Purge, variable Gas Ballast & Exhaust Purge (with Exhaust Pressure Sensor) |
|
| Medium duty + |
As Medium duty, plus High Flow Purge / Solvent Flush |
|
* Purge Gas information
Light duty: shaft seal purge only
Medium duty: Shaft seal purge
Specifications
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

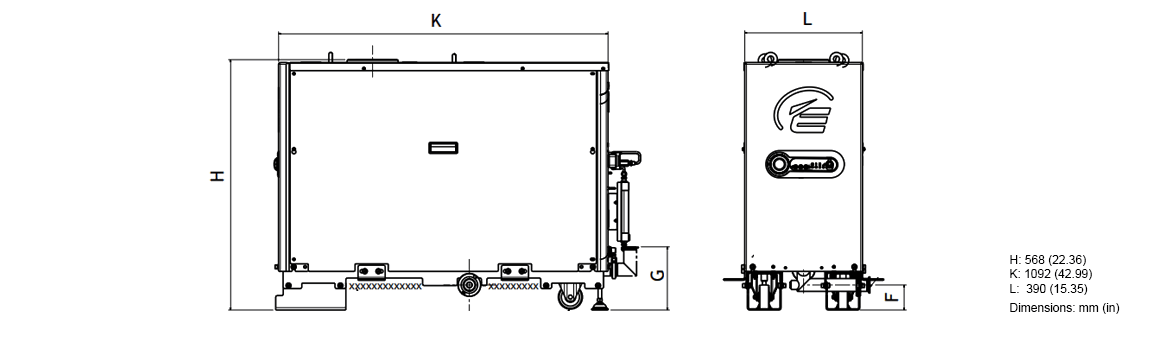

Edwards GXS160 Industrial Dry Screw Vacuum Pump - NEW
GS210002 200-230V, light duty, side exhaust
GS210005 380-460V, light duty, side exhaust
GS210302 200-230V, medium duty, side exhaust
GS210305 380-460V, medium duty, side exhaust
GS210402 200-230V, medium duty + purge, side exhaust
GS210405 380-460V, medium duty + purge, side exhaust
GS215002 200-230V, light duty, rear exhaust
GS215005 380-460V, light duty, rear exhaust
GS215302 200-230V, medium duty, rear exhaust
GS215305 380-460V, medium duty, rear exhaust
GS215402 200-230V, medium duty + purge, rear exhaust
GS215405 380-460V, medium duty + purge, rear exhaust
