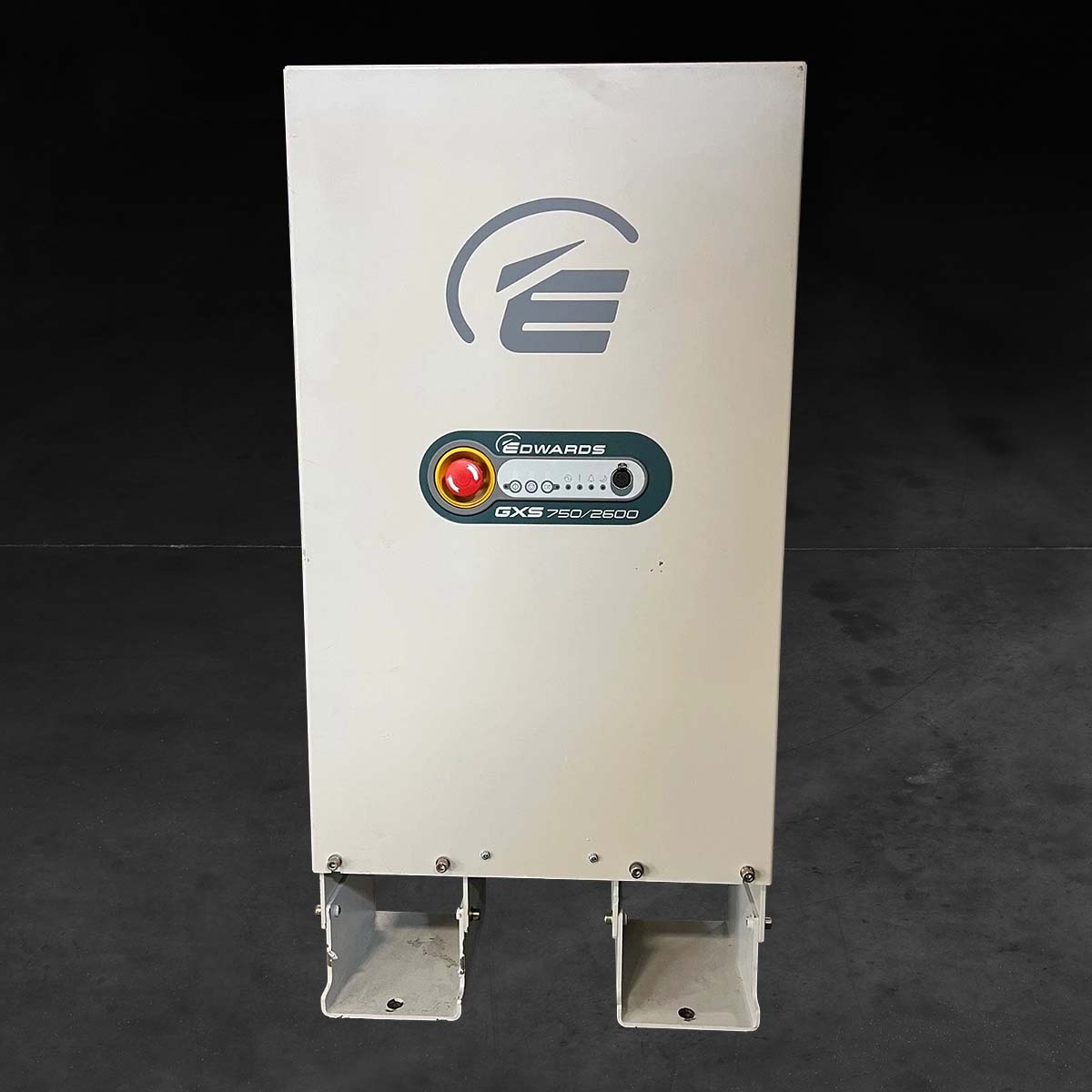

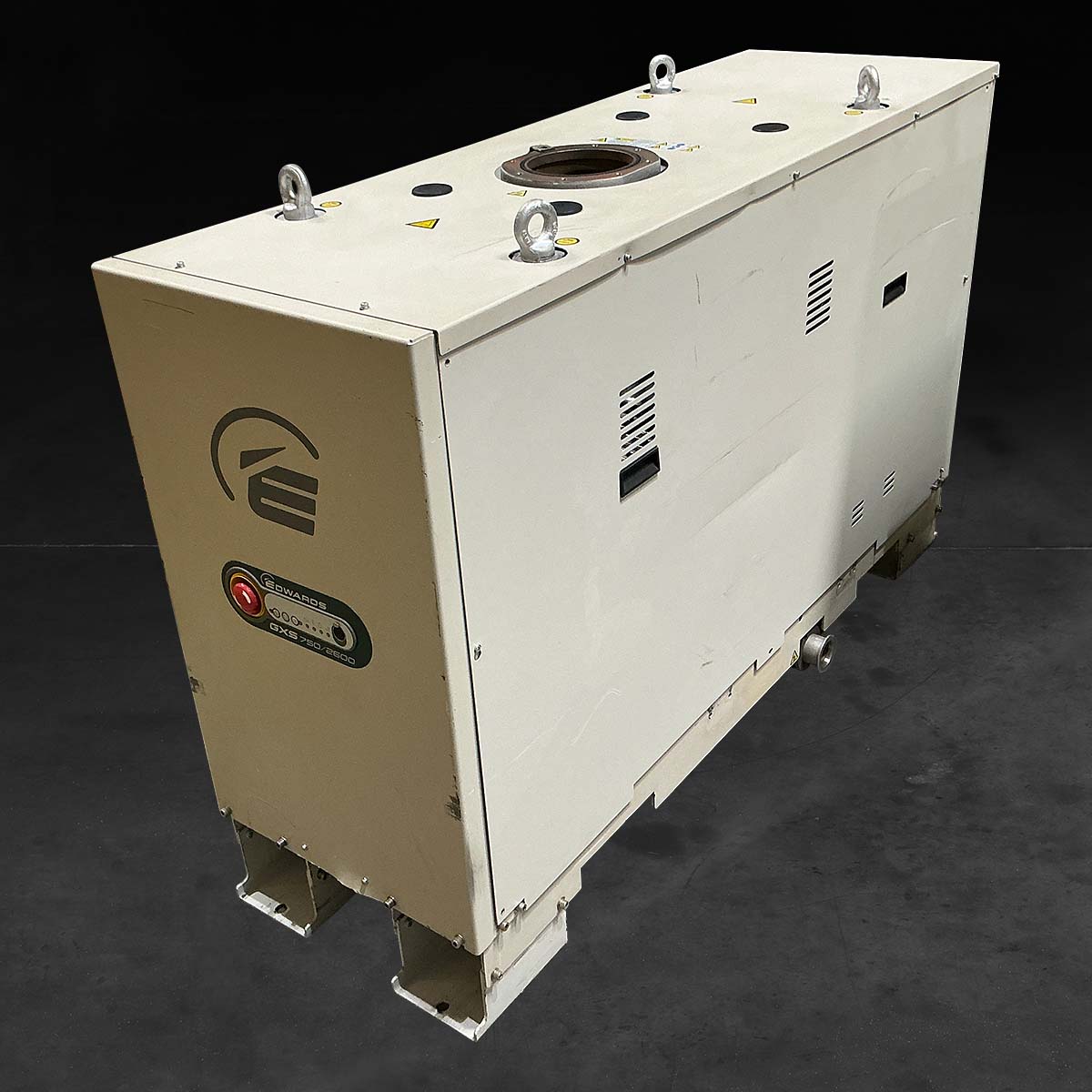

Edwards GXS750/2600 - NEW

Name: Edwards GXS750/2600 - NEW
Brand: Edwards
SKU: NEW_GXS750/2600

Be the first to review this product

Call for Price

In stock

SKU

NEW_GXS750/2600

Request For Quote

Weight	2,002 lbs
Motor Power	53.6 hp
Pumping Speed	2,300 m³/h
Ultimate Pressure	3.8 x 10^-4 Torr

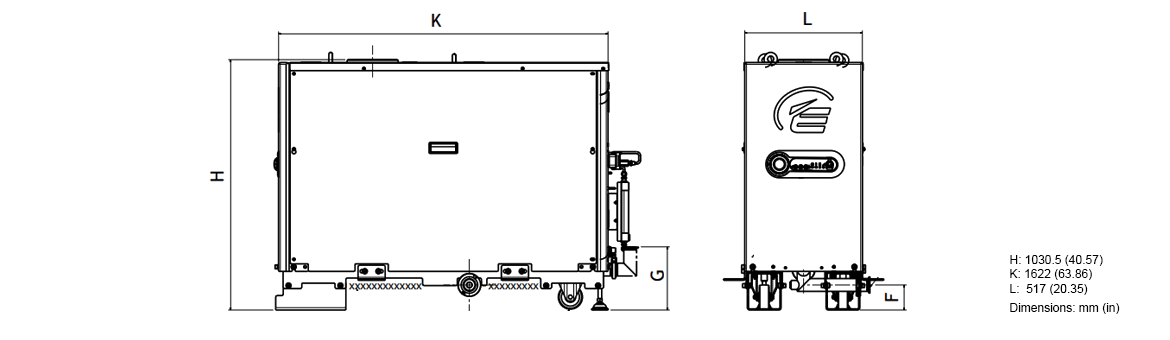

Dimensions

Description

Edwards GXS750/2600 Industrial Dry Screw Vacuum Pump - NEW

With more than 90 years vacuum experience and over 150,000 dry pumps installed world wide, Edwards leads the way in every vacuum application including those handling harsh dust and process contaminants. Edwards GXS range incorporates our unique screw technology with a world leading high efficiency drive to achieve excellent vacuum performance and low running costs. With advanced temperature control, low maintenance and long service intervals, the GXS is the most robust and economical vacuum pump that establishes a new standard in dry pumping.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Units			GXS750	GXS750/2600	GXS750/4200
Peak pumping speed		m³h^-1 (cfm)	740 (436)	2,300 (1,354)	3,450 (2,031)
Ultimate pressure (without purge)		mbar (Torr)	3 x 10^-3 (2.3 x 10^-3)	5 x 10^-4 (3.8 x 10^-4)
Full load power	@ ultimate pressure	kW (hp)	10.0 (13.4)	11.1 (14.9)	11.5 (15.4)
Full load power	@ peak pumping load	kW (hp)	37.0 (49.6)	40.0 (53.6)	40.0 (53.6)
Electrical	Supply options	High volt	380-460V 3Ø 50/60Hz
	Supply options	Low volt	200-230V 3Ø 50/60Hz
	Connection	High volt	Harting Han 100A-F
	Connection	Low volt	Harting Han 200A-F
Vacuum couplings	Inlet		ISO100	ISO160
Vacuum couplings	Exhaust		NW50
Cooling water	Supply pressure (max)	bar (psig)	6.9 (100)
	DP across pump (min)	bar (psig)	2.0 (29)	2.5 (36)
	Flow @ min DP	lmin^-1 (gal/min)	10 (2.6)	12 (3.2)
	Temperature	°C (°F)	5-40 (41-104) High Volt variants 5-40 (41-86) Low Volt variants
	Connection		3/8" BSP Male (G 3/8")
Purge gas*	Pressure	bar (psig)	2.5-6.9 (36-100)
	Light duty	sl/min	12
	Medium duty	sl/min	18-146
	Connection		Swagelok® Ø ¼” tube with olive
High flow purge/ solvent flush	Supply pressure	bar (psig)	2.5-6.9 (36-100)
	Control valve connection		Swagelok® Ø 3/8" tube with olive
	Filter connection		½" NPT Female
	Solvent connection		3/8" BSP Male (G 3/8")
Mass		kg (lbs)	640 (1,411)	908 (2,002)	953 (2,101)
Noise (with suitable exhaust pipe)		dB(A)	< 70
Operating temperature		°C (°F)	5-40 (41-104)
Exhaust back pressure (MAX)		mbar (psia)	1,400 (20)
System IP rating	Standard		31
Lubrication	Type		PFPE Drynert® 25/6
Lubrication	Volume	l (gal)	2.4 (0.6)	3.1 (0.8)	4.2 (1.1)
Monitoring & Control	Standard	Control	Front panel "Dashboard" Serial - RS232
	Standard	Monitoring	Ethernet Webserver
	Option	Control	Parallel - MCM MicroTIM
		Control & monitoring	Profibus DP Pump Display Terminal (PDT)
		Monitoring	FabWorks®
*Pump combinations		Light duty	Shaft Seal Purge & High Vac Purge only
		Medium duty	Shaft Seal Purge, High Vac Purge, Inlet Purge, variable Gas Ballast & Exhaust Purge (with Exhaust Pressure Sensor)
		Medium duty + purge	As Medium duty, plus High Flow Purge / Solvent Flush

Specifications

Digital Manuals

Type	Label	Description	Download
	Edwards GXS Series - REBUILT	Instruction Manual	Download

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards GXS750/2600 Industrial Dry Screw Vacuum Pump - NEW

GSN150000000  380-460V, light duty, side exhaust
GSN150050000  380-460V, light duty, rear exhaust
GSN150300000  380-460V, medium duty, side exhaust
GSN150350000  380-460V, medium duty, rear exhaust
GSN150400000  380-460V, medium duty + purge, side exhaust
GSN150450000  380-460V, medium duty + purge, rear exhaust
