Edwards GXS750 - REBUILT
Weight
1,411 lbs
Pumping Speed
740 m3 /h
Ultimate Pressure
3 x 10-3 mbar

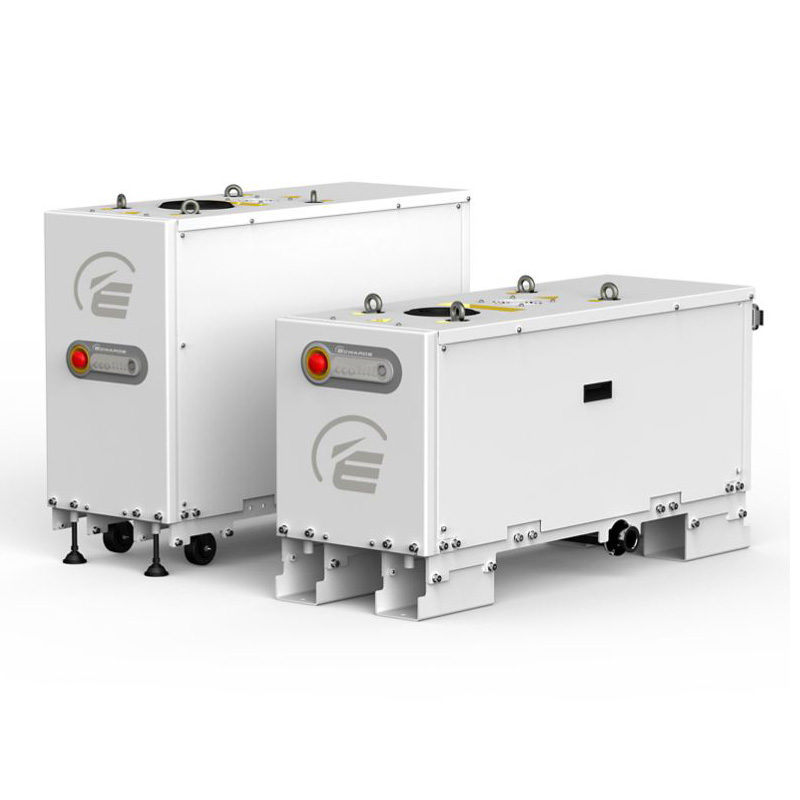

Edwards GXS750F Industrial Dry Screw Vacuum Pump - REBUILT
With more than 90 years vacuum experience and over 150,000 dry pumps installed world wide, Edwards leads the way in every vacuum application including those handling harsh dust and process contaminants. Edwards GXS range incorporates our unique screw technology with a world leading high efficiency drive to achieve excellent vacuum performance and low running costs. With advanced temperature control, low maintenance and long service intervals, the GXS is the most robust and economical vacuum pump that establishes a new standard in dry pumping.
Questions? send an email to our sales team!
Units
GXS750
GXS750/2600
GXS750/4200
Peak pumping speed
m3 h-1 (cfm)
740 (436)
2,300 (1,354)
3,450 (2,031)
Ultimate pressure (without purge)
mbar (Torr)
3 x 10-3 (2.3 x 10-3 )
5 x 10-4 (3.8 x 10-4 )
Full load power
@ ultimate pressure
kW (hp)
10.0 (13.4)
11.1 (14.9)
11.5 (15.4)
@ peak pumping load
kW (hp)
37.0 (49.6)
40.0 (53.6)
40.0 (53.6)
Electrical
Supply options
High volt
380-460V 3Ø 50/60Hz
Low volt
200-230V 3Ø 50/60Hz
Connection
High volt
Harting Han 100A-F
Low volt
Harting Han 200A-F
Vacuum couplings
Inlet
ISO100
ISO160
Exhaust
NW50
Cooling water
Supply pressure (max)
bar (psig)
6.9 (100)
DP across pump (min)
bar (psig)
2.0 (29)
2.5 (36)
Flow @ min DP
lmin-1 (gal/min)
10 (2.6)
12 (3.2)
Temperature
°C (°F)
5-40 (41-104) High Volt variants
Connection
3/8" BSP Male (G 3/8")
Purge gas*
Pressure
bar (psig)
2.5-6.9 (36-100)
Light duty
sl/min
12
Medium duty
sl/min
18-146
Connection
Swagelok® Ø ¼” tube with olive
High flow purge/ solvent flush
Supply pressure
bar (psig)
2.5-6.9 (36-100)
Control valve connection
Swagelok® Ø 3/8" tube with olive
Filter connection
½" NPT Female
Solvent connection
3/8" BSP Male (G 3/8")
Mass
kg (lbs)
640 (1,411)
908 (2,002)
953 (2,101)
Noise (with suitable exhaust pipe)
dB(A)
< 70
Operating temperature
°C (°F)
5-40 (41-104)
Exhaust back pressure (MAX)
mbar (psia)
1,400 (20)
System IP rating
Standard
31
Lubrication
Type
PFPE Drynert® 25/6
Volume
l (gal)
2.4 (0.6)
3.1 (0.8)
4.2 (1.1)
Monitoring &
Standard
Control
Front panel "Dashboard" Serial - RS232
Monitoring
Ethernet Webserver
Option
Control
Parallel - MCM MicroTIM
Control & monitoring
Profibus DP Pump Display Terminal (PDT)
Monitoring
FabWorks®
*Pump combinations
Light duty
Shaft Seal Purge & High Vac Purge only
Medium duty
Shaft Seal Purge, High Vac Purge, Inlet Purge, variable Gas Ballast & Exhaust Purge (with Exhaust Pressure Sensor)
Medium duty + purge
As Medium duty, plus High Flow Purge / Solvent Flush
Specifications
Type
Label
Description
Download
Edwards GXS Series - REBUILT
Instruction Manual
Download
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards GXS750F MKII HV MD Industrial Dry Screw Vacuum Pump - REBUILT
CODE No GSL152350000
