Edwards iGX100L - REBUILT
Call for Price
| Weight | 264.5 lbs |
|---|---|
| Pumping Speed | 62 cfm |
| Ultimate Pressure | 5 x 10-3 mbar |

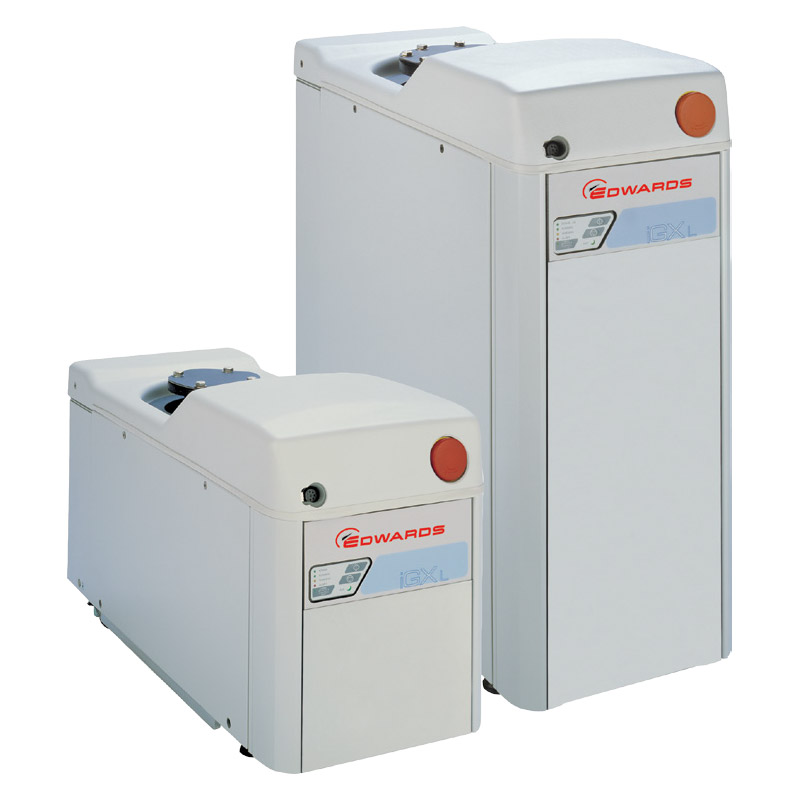

Edwards iGX100L Semiconductor Dry Vacuum Pump - REBUILT
The iGX dry vacuum pump series sets new standards for zero maintenance between major overhauls. Improved efficiency lowers the cost of ownership and provides continuous pumping duty throughout the pressure range.
iGX dry pumps include Ethernet connectivity allowing key data to be viewed via web pages, as well as a comprehensive set of networking options to assure continuous pump availability.
iGX pumps are available in a wide range of peak speeds and variants to address applications from clean through to medium-duty processes. A modular design allows users to configure iGX drypumps to suit individual fab requirements. An ultra-compact footprint allows installation options including on-tool, close proximity, or remote.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak speed | 105 m3h-1 |
| 62 cfm | |
| 1,750 l min-1 | |
| Ultimate pressure | 5.00E-03 mbar |
| 3.75E-03 Torr | |
| 0.50 Pa | |
| Power at 700 Torr exhaust | |
| Ultimate | 1 kW |
| AUC (Active Utility Controller) | 0.05 kW |
| Water inlet* | 1 slm |
| Nitrogen | 0 slm |

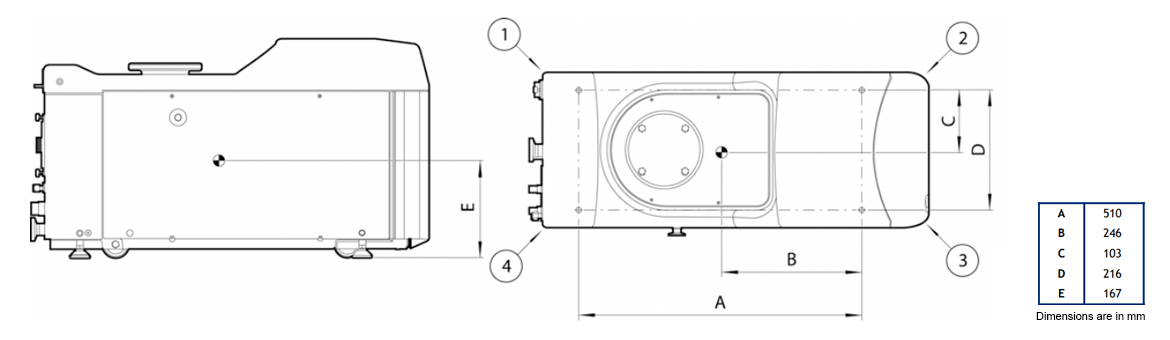

| Footprint excluding exhaust | 0.20 m2 |
| Weight | 120 kg / 264.5 lbs |
| Inlet connection | ISO63 |
| Outlet connection | NW25 |
| Noise at ultimate | < 55 dB(A) |
* Requires constant flow valve accessory.
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards iGX Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards iGX100L Semiconductor Dry Vacuum Pump - REBUILT A54610958 / A546-10-958 iGX100L 200-230V 50/60Hz A54610959 / A546-10-959 iGX100L 380-460V 50/60Hz A54810958 / A548-10-958 iGX100L 200-230V 50/60Hz SS A54810959 / A548-10-959 iGX100L 380-460V 50/60Hz SS NRA947000 / NRA9-47-000 iGX100L 200-230V 50/60Hz NRB246158 / NRB2-46-158 iGX100L 200-230V 50/60Hz A59110958 / A591-10-958 iGX100L 200-230V 50/60Hz INT NRB241958 / NRB2-41-958 iGX100L 200-230V 50/60Hz SS A53610958 / A536-10-958 iGX100L 200-230V 50/60Hz A53610959 / A536-10-959 iGX100L 380-460V 50/60Hz A53640958 / A536-40-958 iGX100LT 200-230V 50/60Hz A53640959 / A536-40-959 iGX100LT 380-460V 50/60Hz A53647958 / A536-47-958 iGX100LTI 200-230V 50/60Hz A53810958 / A538-10-958 iGX100L 200-230V 50/60Hz
