Edwards iGX600L - NEW
Call for Price
| Weight | 485 lbs |
|---|---|
| Motor Power | 2.1 hp |
| Pumping Speed | 620 m3h-1 |
| Ultimate Pressure | 5.2x 10-4 torr |

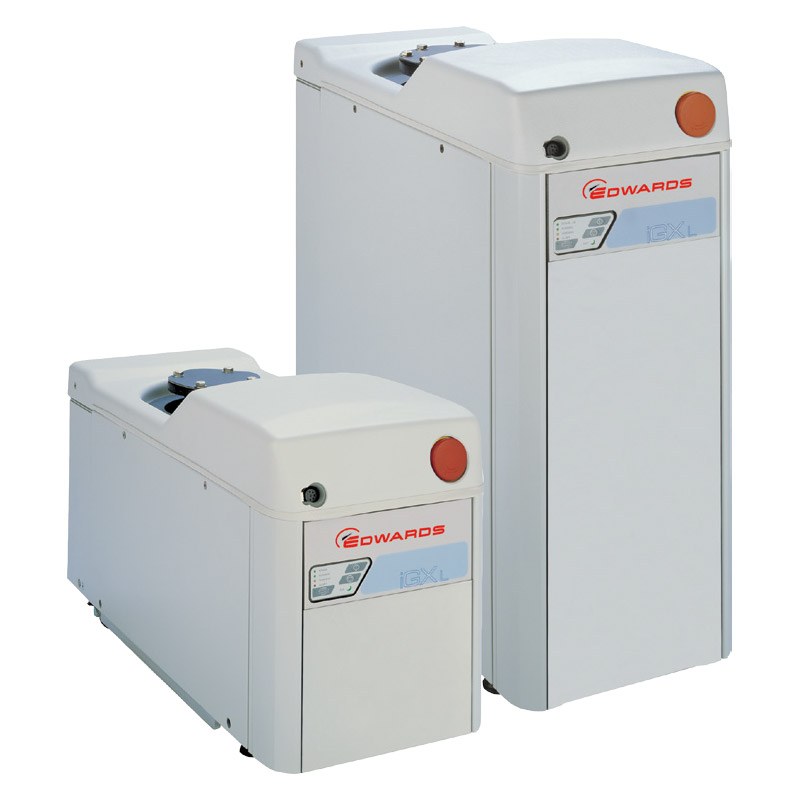

Edwards iGX600L Semiconductor Dry Vacuum Pump - NEW
The iGX dry vacuum pump series sets new standards for zero maintenance between major overhauls. Improved efficiency lowers the cost of ownership and provides continuous pumping duty throughout the pressure range.
iGX dry pumps include Ethernet connectivity allowing key data to be viewed via web pages, as well as a comprehensive set of networking options to assure continuous pump availability.
iGX pumps are available in a wide range of peak speeds and variants to address applications from clean through to medium-duty processes. A modular design allows users to configure iGX drypumps to suit individual fab requirements. An ultra-compact footprint allows installation options including on-tool, close proximity, or remote.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak Speed | 620 m3h-1 / 365 cfm |
| Ultimate Pressure | 7.00E-04 mbar / 5.25E-04 Torr |
| Power at 700 Torr exhaust | |
| Ultimate | 1.6 kW |
| AUC (Active Utility Controller) | 0.05 kW |
| Water inlet | 2 slm |
| Nitrogen | 0 slm |
| Footprint excluding exhaust | 0.20 m2 |
| Weight | 220 kg |
| Inlet connectiom | ISO100 |
| Outlet connection | NW25 |
| Noise at ultimate | < 55 dB(A) |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards iGX600L Semiconductor Dry Vacuum Pump - NEW A54630958 / A546-30-958 iGX600L 200-230V 50/60 Hz A54630959 / A546-30-959 iGX600L 380-460V 50/60 Hz
