Edwards nEXT 300D - NEW
| Weight | 25 lbs |
|---|---|
| Pumping Speed | 300 l/s |
| Ultimate Pressure | < 6 x 10-8 mbar |
Edwards nEXT300D Turbomolecular Vacuum Pump - NEW
The nEXT300D is a hybrid bearing compound turbo pump available with either an ISO-100 or a CF-100 inlet flange and has a N2 pumping speed of 300 l/s. nEXT pumps combine our proven bearing technology (oil lubricated ceramic lower bearing with dry permanent magnetic upper bearing), an improved rotor design with a new molecular drag stage to deliver improved pumping speed and compression ratios, and true user serviceability. They feature 24V to 48 VDC sensor less motors with a built in drive that is fully compatible our range of TAG and TIC controllers. They are available pre-set for 80W or 160W maximum power, the former enabling use with our 100W TIC controllers are also recommended for pumping Argon, but with a longer ramp time to full operating speed. A basic pump system would require a nEXT300D pump, a TAG or TIC controller, either an air or water cooling accessory or a suitable backing pump.
- Value for money - exceptional pumping speeds and compression ratios
- No unplanned downtime - field proven reliability in the most demanding environments
- Easy integration - standard fit in many scientific instruments
- Reliability for peace of mind - over 200,000 turbomolecular pumps installed
- Low cost of ownership - end user serviceable
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

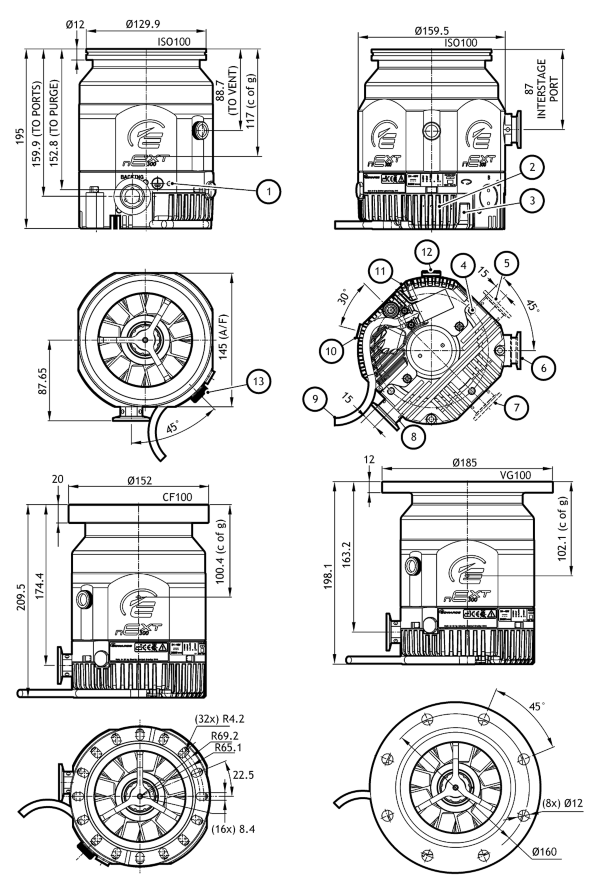

| Inlet flange | DN 100 ISO-K / DN 100 CF |
| Outlet flange | DN 25 NW |
| Pumping speed | |
| N2 | 300 l/s |
| He | 340 l/s |
| H2 | 280 l/s |
| Compression ratio D / T | |
| N2 | >1 × 1011 |
| He | 1 x 108 / > 1 x 108 |
| H2 | 5 x 105 / 1 x 106 |
| Ultimate pressure with RV backing pump ISO / CF | < 6 x 10-8 / < 5 x 10-10 mbar |
| Recommended backing pump* | RV12 / nXDS10i |
| Vent port | 1/8 inch BSP female |
| Purge port | 1/8 inch BSP female |
| Max continuous inlet flow (Nitrogen)† | |
| Water cooling (water at 15°C, ambient temp at 40°C) | 95 sccm |
| Forced air cooled, 35 °C ambient | 115 sccm |
| Pump rotational speed | |
| Nominal rotational speed | 60,000 rpm |
| Standby rotational speed | Variable from 33,000 to 60,000 rpm (42,000 rpm default) |
| Programmable power limit settings | Variable from 50 - 200 W (160 W default) |
| Start time to 90% speed D / T 160 W | 155 / 175 |
| Analogue outputs | Pump rotational speed; Power consumption; Pump temp; Controller temp |
| Cooling method | Forced air / water |
| Ambient air temp for forced air cooling | 5 - 35°C |
| Min cooling water flow rate (water 15°C) | 15 l/h-1 |
| Water temp range | 10 - 20°C |
| Max inlet flange temp | 80°C |
| Operating attitude | Vertical and upright, through to Horizontal +/- 2° |
| Noise level at 1 metre | < 45 dB(A) |
| Max magnetic field pump can tolerate | 5 mT |
| Recommended controller | TIC 200 turbo and instrument controller |
| Quiescent electrical power | Typically 20W |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nEXT 240, 300, 400 - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL: nEXT300D Turbomolecular Vacuum Pump - NEW
CODE: B822-00-101 / B82200101 nEXT300D ISO-100 80W
CODE: B822-00-201 / B82200201 nEXT300D CF-100 80W
CODE: B822-00-100 / B82200100 nEXT300D ISO-100 160W
B822-00-200 / B82200200 nEXT300D CF-100 160W
B823-00-100 / B82300100 nEXT300T HC ISO-100 160W
B823-00-101 / B82300101 nEXT300T HC ISO-100 80W
B823-00-200 / B82300200 nEXT300T HC CF-100 160W
B823-00-201 / B82300201 nEXT300T HC CF-100 80W
