Edwards nEXT85D ISO-63 - REBUILT
Call for Price
| Weight | 9.5 lbs |
|---|---|
| Pumping Speed | 47-86 l/s |
| Ultimate Pressure | < 5 x 10-9 mbar |
Edwards nEXT85D Compound Turbomolecular Vacuum Pump - REBUILT

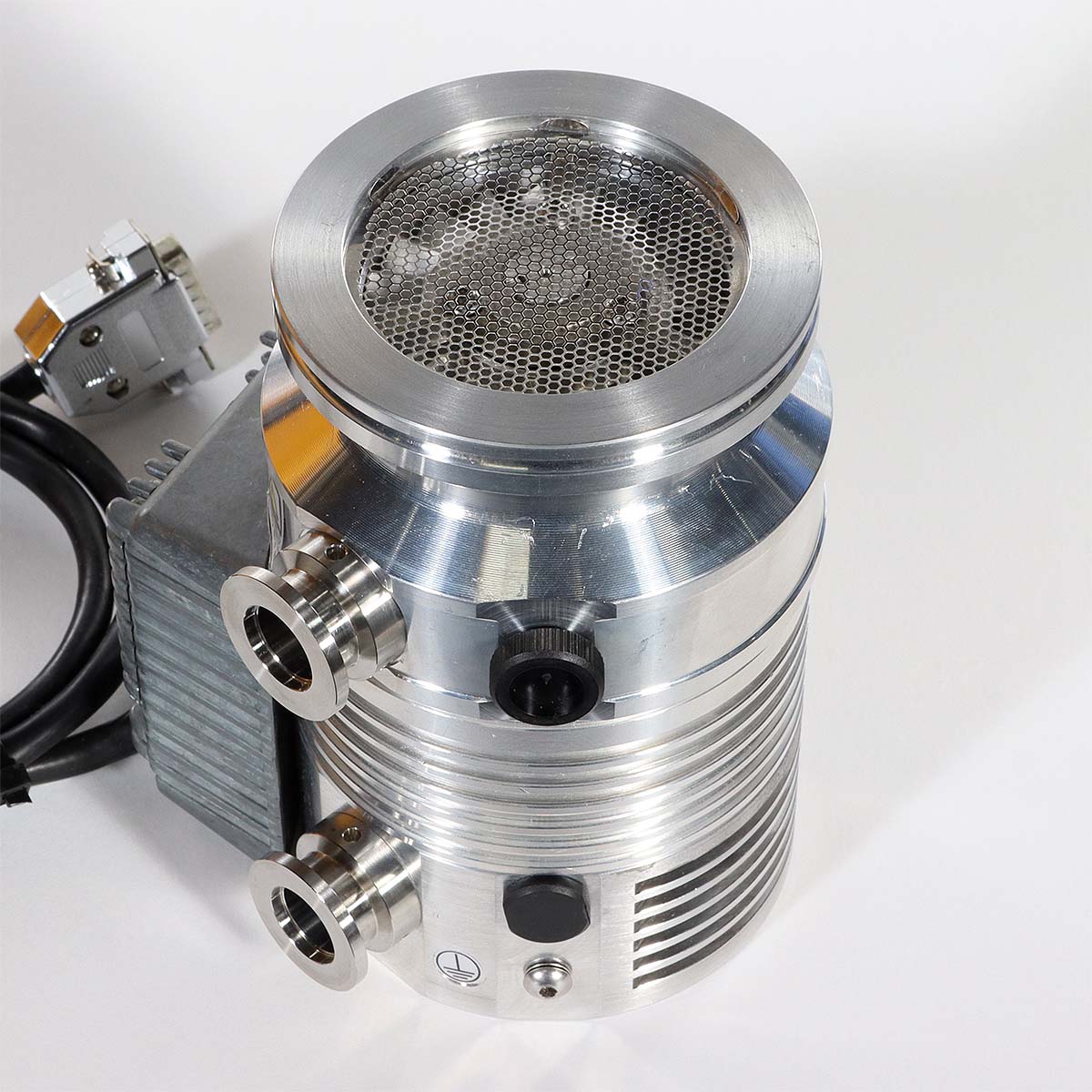

The nEXT85 turbomolecular pump builds upon the success of the highly successful EXT75DX to deliver a pump with significantly improved performance in a smaller package.
The rotor has been totally re-designed to optimise pump performance and achieve both higher speeds and higher compression while maintaining high levels of reliability.
In addition to enhanced performance nEXT85 benefits from the same service and operational functionalities from the larger nEXT range, including field serviceability and in-built intelligence, for a truly class leading product.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Specifications | nEXT85D NW-40 |
nEXT85H NW-40 |
nEXT85D ISO-63 |
nEXT85H ISO-63 |
nEXT85D CF-63 |
nEXT85H CF-63 |
nEXT85D ISO-100 |
nEXT85H ISO-100 |
|---|---|---|---|---|---|---|---|---|
| Main inlet pumping speed l/s | ||||||||
| N2 | 47 | 84 | 86 | |||||
| He | 61 | 78 | 80 | 78 | ||||
| H2 | 49 | 44 | 60 | 54 | 60 | 54 | 60 | 54 |
| Ar | 44 | 80 | 84 | |||||
| Peak compression ratio from the backing port to the main inlet port | ||||||||
| N2 | > 1011 | |||||||
| He | 8 x 106 | 2 x 107 | 8 x 106 | 2 x 107 | 8 x 106 | 2 x 107 | 8 x 106 | 2 x 107 |
| H2 | 2 x 105 | |||||||
| Ar | > 1011 | |||||||
| Ultimate pressure mbar (Torr) |
< 5 x 10-9 (< 3.8 x 10-9) | < 5 x 10-10 (< 3.8 x 10-10) | < 5 x 10-9 (< 3.8 x 10-9) | |||||
| Weight | 2.9 kg (6.4 lbs) | 3 kg (6.6 lbs) | 4.4 kg (9.7 lbs) | 3.2 kg (7 lbs) | ||||
| Forced air cooling (20°C Ambient) | Natural convection (35°C Ambient) | Forced air cooling (40°C Ambient) | Water cooling (40°C Ambient) | |||||
| Maximum continuous backing pressure at ultimate inlet pressure mbar | ||||||||
| N2 | 18 | 10 | 11 | 17 | ||||
| Maximum input flow sccm | ||||||||
| N2 | 60 | 22 | 25 | 42 | ||||
| Ar | 21 | 7 | 15 | |||||
| He | 232 | 96 | 128 | 191 | ||||
| Operation | Vertical and upright to horizontal ± 2° | |||||||
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards MODEL: nEXT85D Compound Turbomolecular Vacuum Pump - REBUILT CODE: B8G2-10-B01 / B8G210B01 nEXT85D ISO-63 NW-16 80W
-

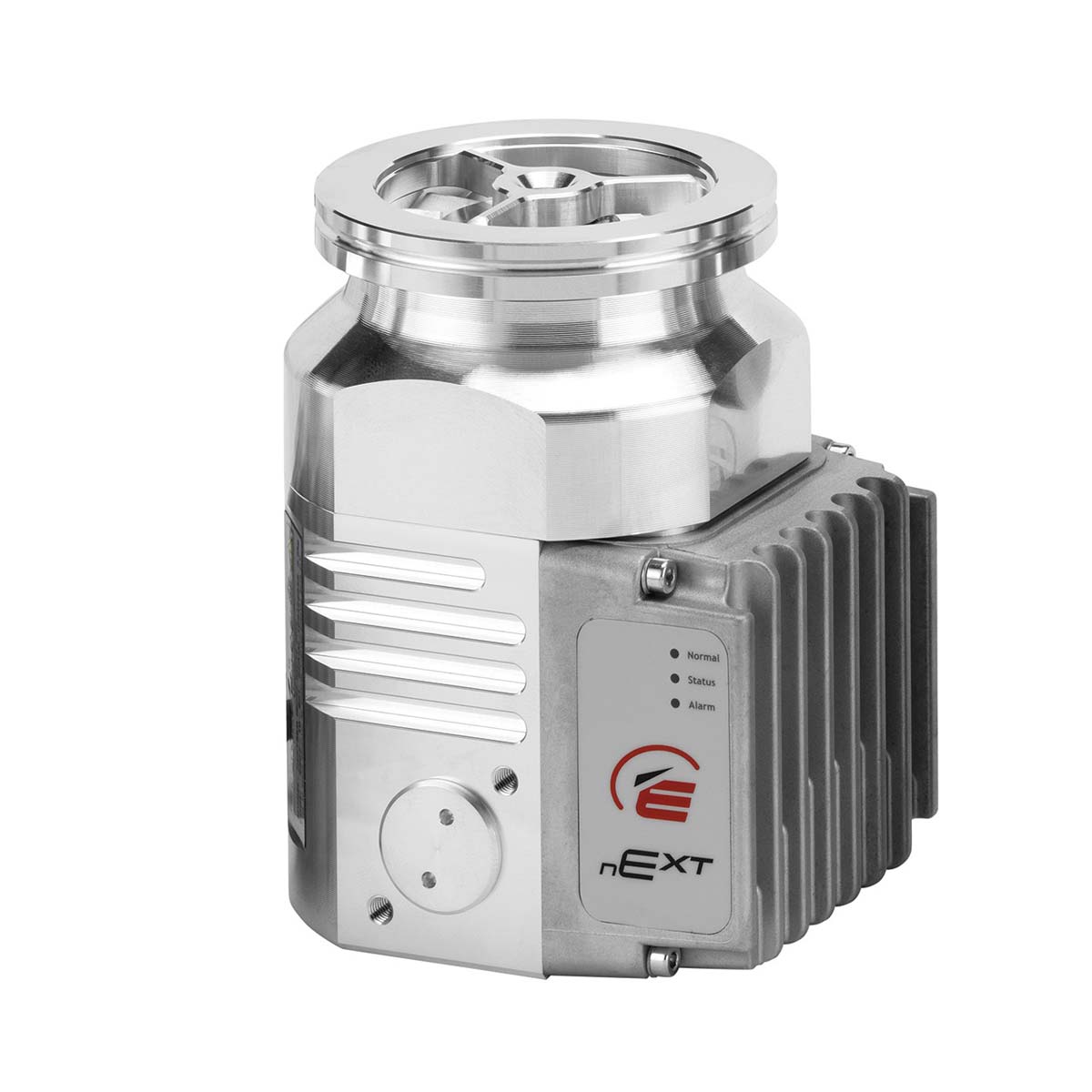

Edwards nEXT85 - NEWStarting at $8,104 -

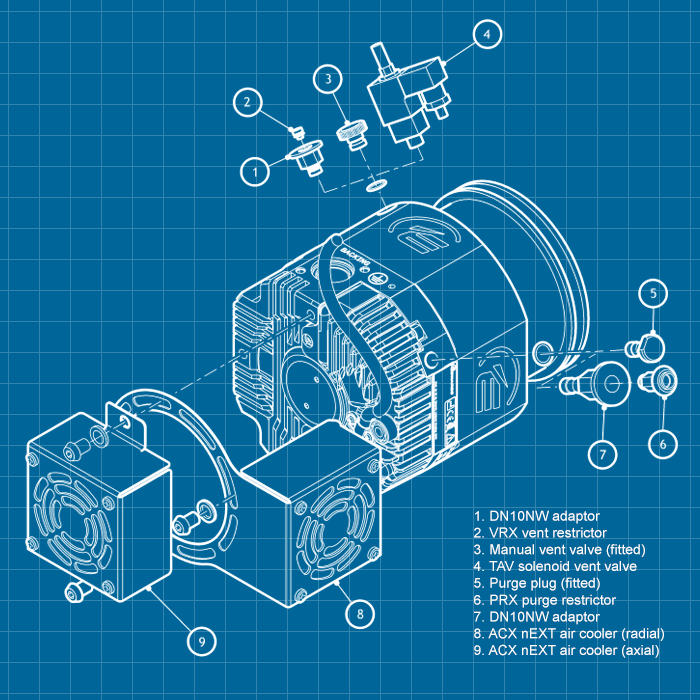

Edwards nEXT85 - SERVICECall for Price
