Edwards nXL110i - NEW
Call for Price
In stock
Only %1 left
SKU
NEW_nXL110i
| Weight | 165 lbs |
|---|---|
| Motor Power | 0.87 hp |
| Pumping Speed | 110 m3h-1 |
| Ultimate Pressure | <2 x 10-2 mbar |

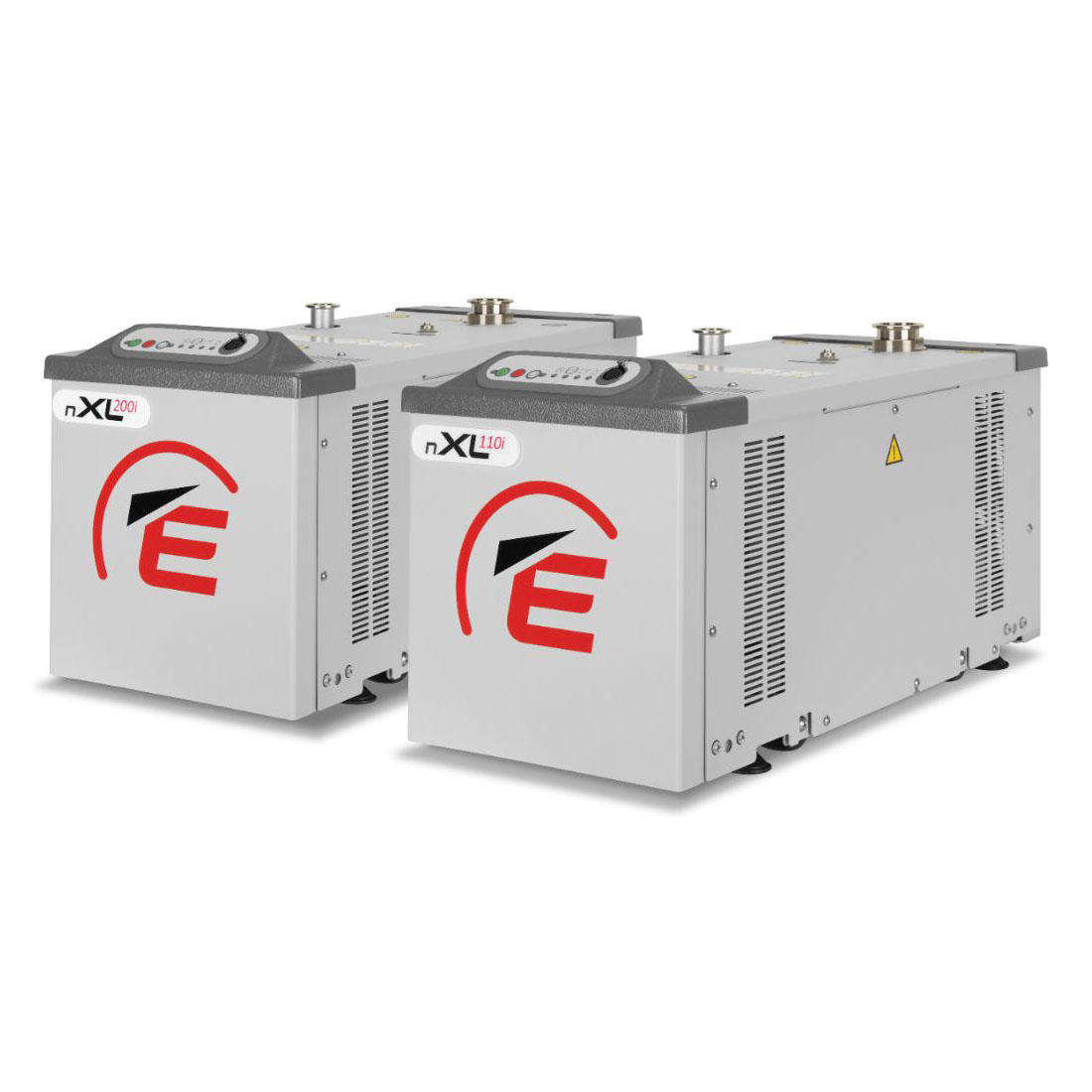

Edwards nXL110i Dry Multistage Roots Vacuum Pump - NEW
Edwards is delighted to introduce the new air cooled nXLi dry pump range, designed to deliver a consistent performance worldwide with complete user flexibility in mind. This new single phase pump is available in two options: nXL110i and nXL200i. Both are optimised for LCMS and ICPMS duties and are capable of handling gas loads of up to 25 slm. nXLi can also be used on chambers up to 100 litres, at continuous inlet pressures up to 15 mbar with occasional pump down.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Units | nXL110i | nXL200i | ||
|---|---|---|---|---|
| Peak pumping speed | m3h-1 | < 2 x 10-2 | ||
| Ultimate Vacuum (total pressure) | mbar (Torr) | 7 x 10-3 (5.3 x 10-3) | 7 x 10-4 (5.3 x 10-4) | |
| Displacement (50/60hz) | m3h-1 | 131 | 283 | |
| Inlet | NW 40 | |||
| Outlet | NW 25 | |||
| Maximum permitted outlet pressure | bar gauge/psig | 0.5 / 7.0 | ||
| Operating temperature range | Celsius | 10 - 40 | ||
| Nominal rotational speed | rpm | 9,000 | ||
| Power connector 1-phase | IEC EN60320 C19 | |||
| Power at ultimate | kW | 0.65 | ||
| Power at typical application condition (2-10 mbar) | kW | 0.7 - 0.9 | ||
| Flow at typical application condition | slm | 3 - 15 | 6 - 22 | |
| Max power during ramp up | kW | 1.1 | ||
| Leak tightness | mbar l/s | 1.0 x 10-5 | ||
| Weight | kg | 75 | 81 | |
| Noise (pressure) | dB(a) | 56.7 | ||
| Vibration at inlet flange | mms-1 (rms) | < 2.5 | ||
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nXL Series - NEW | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Edwards nXL110i Dry Multistage Roots Vacuum Pump - NEW A77012320 / A770-12-320 NW40 200-230V 50/60 Hz A77012420 / A770-12-420 NW50 200-230V 50/60 Hz
