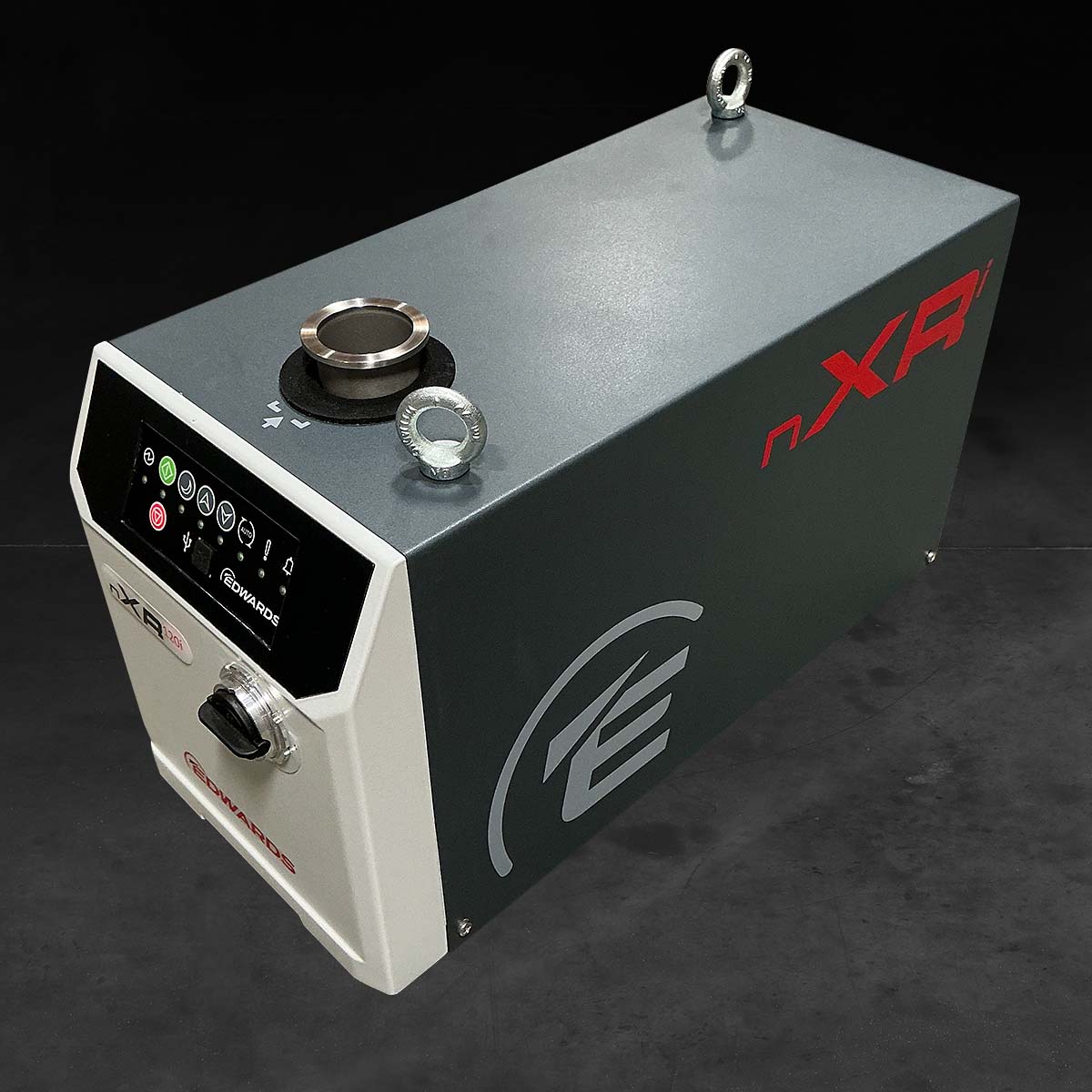

Edwards nXR120i - NEW
Call for Price
In stock
SKU
NEW_nXR120i-NW40
| Weight | 64 lbs | Pumping Speed | 120 m3/h |
|---|---|
| Ultimate Pressure | 2 x 101 mbar |
Edwards nXR120i NW40 Multi Stage Roots Dry Pump - NEW
Edwards has revolutionised the vacuum pump market with the new nXRi high performance, compact dry pump. It delivers unrivalled pumping speeds in the most compact package, with pumping speeds of 30 to 120 m3h-1. The nXRi's lower input power and zero maintenance create real performance improvements and cost benefits across a range of applications.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Peak pumping speed | |
| nXR30i | 30 m3h-1 |
| nXR40i | 40 m3h-1 |
| nXR60i | 60 m3h-1 |
| nXR90i | 90 m3h-1 |
| nXR120i | 120 m3h-1 |
| Ultimate vacuum (total pressure) | 0.03 mbar (0.022 Torr) |
| Inlet flange | |
| nXR30/40i | NW25 |
| nXR60/90/120i | NW40 |
| Outlet flange | |
| All variants | NW25 |
| Maximum permitted outlet pressure | |
| nXR30/40/60/90/120i | 0.2 bar gauge |
| Maximum continuous inlet pressure | |
| nXR30-90i | 1013 mbar |
| nXR120i | 20 mbar |
| Operating temperature range | +5 to +40°C (+41 to +104°F) |
| Nominal rotational speed | 15000 rpm |
| Voltage input | 100-127/200-240 V (+/-10%), switchable |
| Mains frequency | 50/60 Hz |
| Power connector 1-ph | IEC EN60320 C19 |
| Power at ultimate | 450 W |
| Leak tightness | < 1x10-6 mbar ls-1 |
| Weight | |
| nXR30/40i | 27 kg (60 lbs) |
| nXR60/90/120i | 29 kg (64 lbs) |
| Noise at ultimate vacuum | 55 dB(A) |
| Vibration at inlet flange | < 2.0 mm/s |
| Type | Label | Description | Download |
|---|---|---|---|
|
Edwards nXR Series - NEW | Instruction Manual | Download |
