Edwards SCU 350 - NEW

Call for Price

In stock

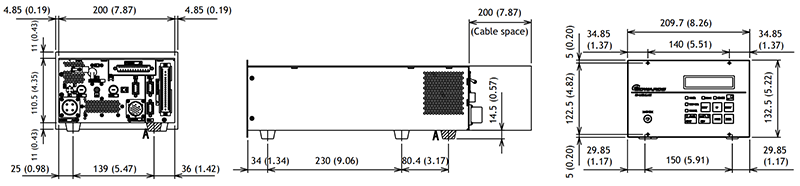

Height 132.5 mm
Width 209.7 mm
Length 400 mm
Weight 17.6 lbs

Edwards SCU-350 Turbomolecular Vacuum Pump Control Unit - NEW

The Edwards new SCU-350 control unit is a EU-RoHS compliant controller for small sized turbo pumps. It is fully compatible with the current control unit models, but has an improved vibration property at low frequency range. It also has lower input voltage, which contributes to a reduction in electric capacity and tool power consumption. The SCU-350 has improved noise immunity and is equipped with universal voltage function for operation with supply voltage from 100-240 VAC without switching.

  • Better vibration property
  • No peak vibration movement across all frequencies
  • Compact design
  • Smallest size control unit in its class
  • Energy saving
  • Low input power translates into low power consumption on the tool
      Universal voltage for range 100-240VAC.
      No switching required between 100-120V and 200-240V.
      Minimizes number of back up units stocked
  • Full compatibility with existing control unit
  • Same size
      Same cables can be used
      No change to pumping performance
  • Better noise immunity
  • Electrostatic discharge withstand voltage up to 30kV with standard specification
      Applicable for ion implant tools
  • Compliant with international standards

CE Marked, UL marked, SEMI-S2 and EU-RoHS Compliant

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Magnetic bearing control system Digital control
Input voltage 100 - 120 V / 200 - 240 VAC
Power consumption (start up) Max 350 VA
Power consumption (continuous) Max 150 VA
Input frequency 50/60 ±2 Hz
Leak current 3.5 mA
Main breaker rated current 5 A
Motor drive system 3 phase DC
Allowable ambient temperature 0 to 40°C (32 to 104°F)
Weight 8 kg
Panel display LCD

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards SCU-350 Turbomolecular Vacuum Pump Control Unit - NEW

YT21Z0Z01 / YT21-Z0-Z01  SCU-350
YT21ZEZC0 / YT21-ZE-ZC0  SCU-350  RS232
YT21ZCZC0 / YT21-ZC-ZC0  SCU-350A  ABS
