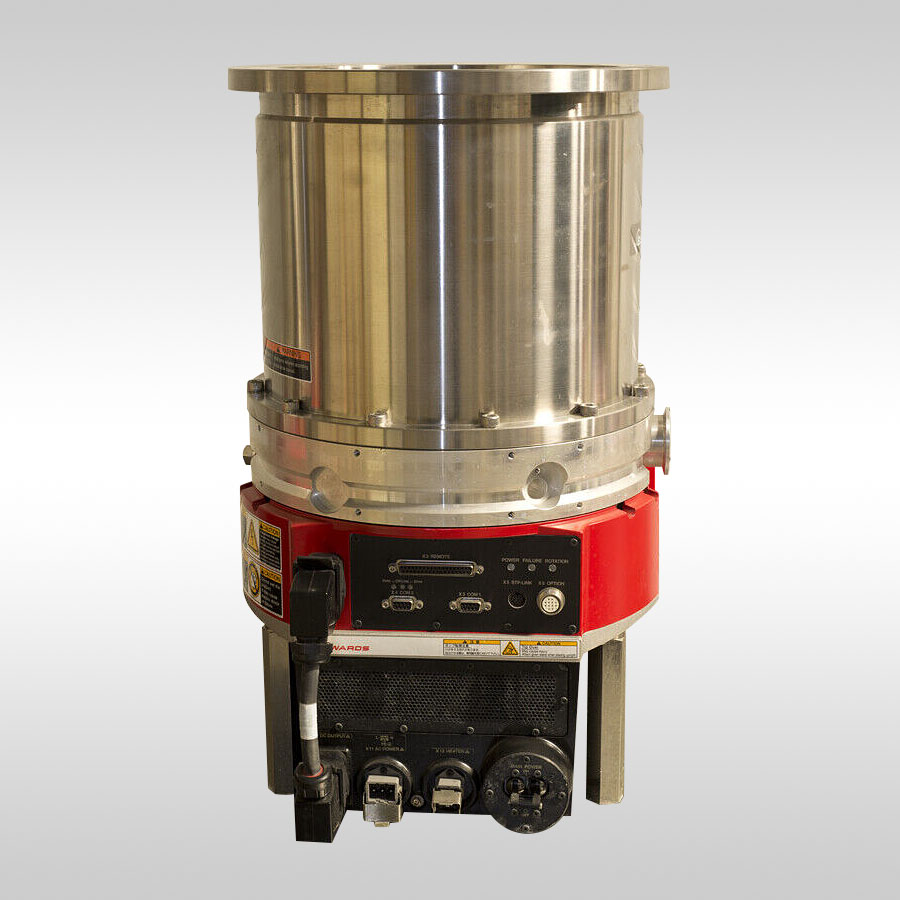

Edwards STP-iXA2206C - REBUILT

Name: Edwards STP-iXA2206C - REBUILT
Brand: Edwards
SKU: REBUILT_STPIXA2206C

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_STPIXA2206C

Request For Quote

Weight	136.68 lbs
Pumping Speed	1,900 to 2,200 l/s
Ultimate Pressure	10^-9 Torr

Description

Edwards STP-IXA2206C Turbomolecular Vacuum Pump - REBUILT

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange size	ISO250F / VG250 / ICF305
Backing port size	KF40
Pump speed N₂/ Ar	2,200/1,900 l/s
Compression ratio N₂/ H₂	> 10⁸ / 1 x 10⁴
Ultimate pressure	10^-7 Pa (10^-9Torr)
Allowable backing pressure	266 Pa (2 Torr)
Max gas flow N₂ * (water cooled only)	3,000 sccm
	(5.07 Pam³s^-1)
Max gas flow Ar * (water cooled only)	1,400 sccm
	(2.36 Pam³s^-1)
Rated speed	27,000 rpm
Run-up time to 90% rated speed	< 8 minutes
Mounting position	Any orientation
Input voltage	200-240 V
Max input power (without TMS)	1,200 VA
Weight	62 kg

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards STP-iXA2206C Turbomolecular Vacuum Pump - REBUILT

P/N YT81-0Z-010 / YT810Z010  STP-iXA2206C  ISO-250F
P/N YT81-0Z-020 / YT810Z020  STP-iXA2206C  VG-250
P/N YT81-0Z-030 / YT810Z030  STP-iXA2206C  DN 250 CF
    YT81-0Z-040 / YT810Z040  STP-iXA2206C  ISO-250F Profibus
