Edwards STP-iXA3306B - REBUILT

Name: Edwards STP-iXA3306B - REBUILT
Brand: Edwards
SKU: REBUILT_STPiXA3306B

Be the first to review this product

Call for Price

In stock

SKU

REBUILT_STPiXA3306B

Request For Quote

Weight	176 lbs
Pumping Speed	2,650-3,200 l/s
Ultimate Pressure	10^-9 Torr

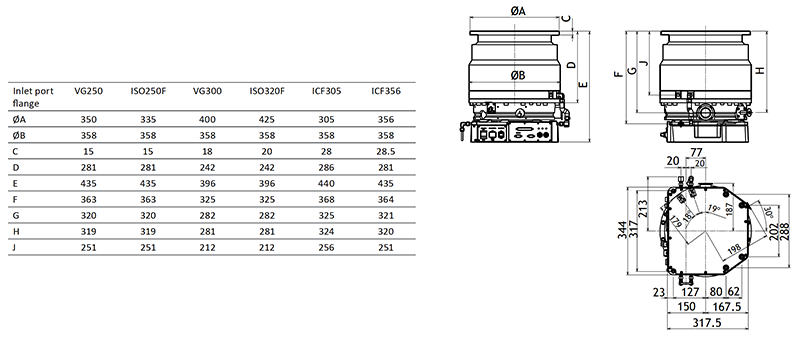

Dimensions

Description

Edwards STP-iXA3306B Turbomolecular Vacuum Pump - REBUILT

The STP-iXA3306 series magnetically levitated turbomolecular pump provides industry-leading performance and incorporates a small power supply into the onboard control unit – the latest technology of the well-established STPiXA3305 series.

The height of the pump is equal to the STP-XA2703/XA3203 and is also equal to the height of the STP-iXA3305 series without its power supply (iPS-1200). This fully integrated product offers easy installation and a small footprint as an all-in-one solution for all application tools.

Compact design including a fully integrated controller
Innovative, self-sensing magnetic bearing system
Digital 5-axis control
Vibration levels reduced by 50% compared to the existing turbo pumps
Can be configured to run corrosive processes

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Inlet flange size	ISO250F / VG250 / ICF305	ISO320F / VG300 / ICF356
Backing port size	KF40	K40
Pumping speed N₂	2,650 l/s	3,200 l/s
Pumping speed Ar	2,300 l/s	2,800 l/s
Weight	80 kg	83 kg
Compression ratio N₂/H₂	> 10⁸ / 2 x 10³
Ultimate pressure	10^-7 Pa (10^-9Torr)
Allowable backing pressure	266 Pa (2 Torr)
Max gas flow N₂ *(water cooled only)	4,000 sccm
	(6.76 Pam³s^-1)
Max gas flow Ar * (water cooled only)	2,100 sccm
	(3.55 Pam³s^-1)
Rated speed	27,700 rpm
Starting time	< 10 minutes
Mounting position	Any orientation
Input voltage	200-240 V
Max input power without TMS	1,500 VA
Max input power with TMS	1,800 VA

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Edwards STP-iXA3306B Turbomolecular Vacuum Pump - REBUILT

P/N YT82-5Z-010 / YT825Z010  STP-iXA3306B
P/N YT82-0Z-100 / YT820Z100  STP-iXA3306C
P/N YT82-0Z-140 / YT820Z140  STP-iXA3306C  ISO-320F
    YT82-20-350 / YT8220350  STP-iXA3306CV
    YT82-20-350 / YT8220350  STP-iXA3306CV  117025493
    YT77-0Z-170 / YT770Z170  STP-iXA3305CP
