Kinney A130 - NEW
| Weight |
250 lbs |
| Motor Power |
10 hp |
| Pumping Speed |
140 cfm |
| Ultimate Pressure |
2.50 x 101 Torr |

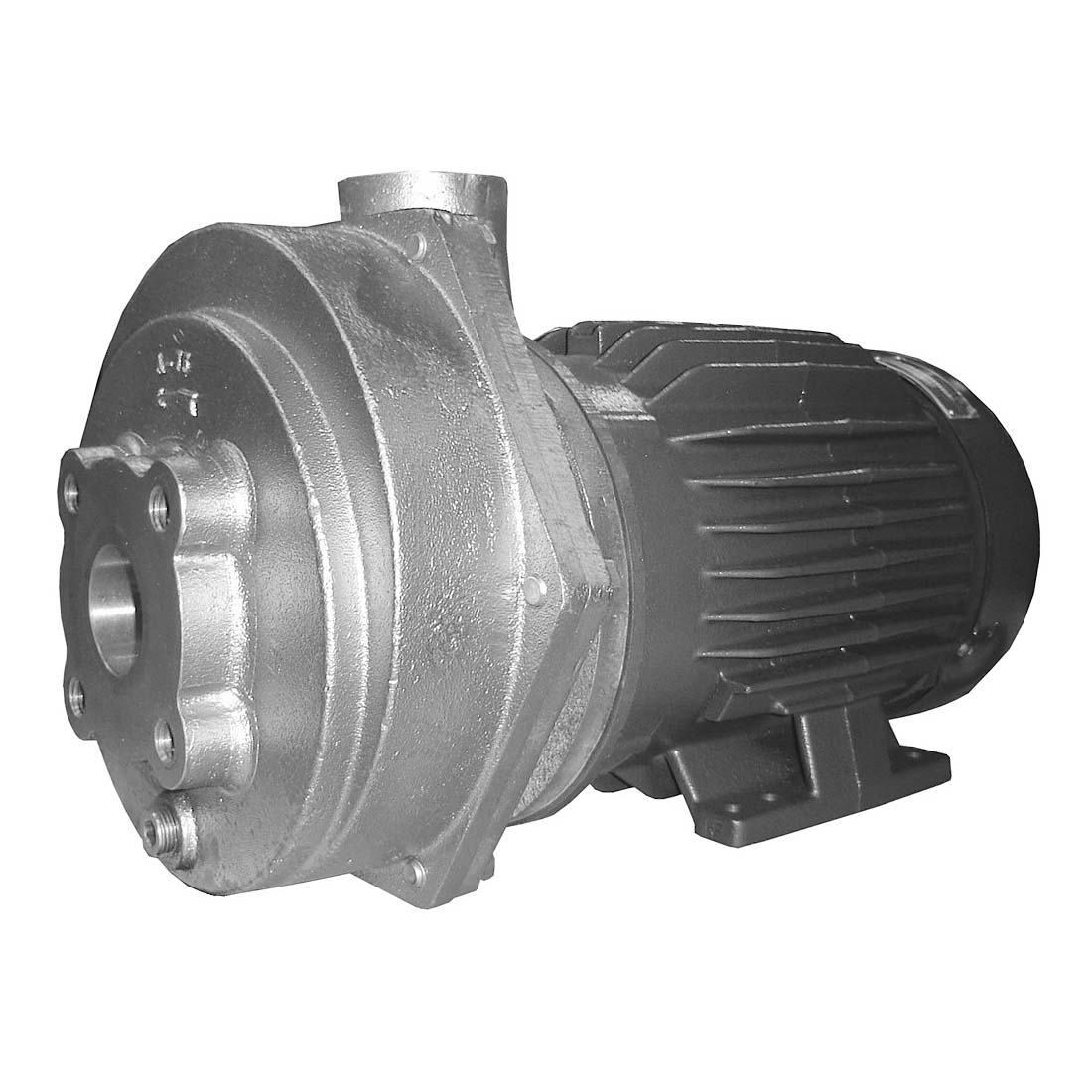

Kinney A130 Single Stage Liquid Ring Vacuum Pump - NEW
A-Series liquid ring vacuum pumps are designed to minimize downtime by allowing for fast in-the-field repair. Time- and money-saving features include:
Features:
- No contact between operating components in the casing
- Flat power curve over entire vacuum range prevents motor overload
- Reduced stress on motor shaft and bearings
- Increased water handling capability prevents heat buildup, extends life of mechanical seals
- Compact, close-coupled design eliminates need for interstage manifold or motor alignment
- Shrouded rotor increases pumping efficiency for high vacuum and low water consumption
- Fast delivery on standard materials and local support
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| |
UNIT
|
A5
|
A10
|
A15
|
A20
|
A75
|
A100
|
A130
|
A200
|
A300
|
|
Speed
|
RPM
|
3450
|
3450
|
3450
|
3450
|
1725
|
1725
|
1725
|
1160
|
1160
|
|
Drive
|
Type
|
Direct
|
Direct
|
Direct
|
Direct
|
Direct
|
Direct
|
Direct
|
Direct
|
Direct
|
|
Standard Motor
|
HP (kW)
|
1
(0.75)
|
1.5
(1.1)
|
2
(1.5)
|
3
(2.2)
|
5
(3.7)
|
7.5
(5.6)
|
10
(7.5)
|
15
(11.2)
|
20
(15)
|
|
Sealant Liquid Required (at 60°F w/ no sealant recovery)
|
GPM
(L/min)
|
2
(7.6)
|
2
(7.6)
|
3
(11.4)
|
3
(11.4)
|
4
(15.1)
|
4
(15.1)
|
5
(18.9)
|
8
(30.3)
|
10
(37.9)
|
|
Sealant Liquid Connections
|
NPT
|
3/8 in.
|
3/8 in.
|
3/8 in.
|
3/8 in.
|
1/2 in.
|
1/2 in.
|
1/2 in.
|
1 in.
|
1 in.
|
|
Inlet/Outlet Connections
|
ANSI 150
Class
|
3/4 in.
|
1 in.
|
1 in.
|
1 in.
|
2 in.
|
2 in.
|
2 in.
|
3 in.
|
3 in.
|
|
Overall Length
(w/ Standard Motor)
|
in. (mm)
|
14
(356)
|
16.6
(422)
|
17
(432)
|
18.5
(470)
|
20.2
(513)
|
23.1
(587)
|
25.3
(642)
|
32.4
(823)
|
33.7
(856)
|
|
Overall Height
(w/ Standard Motor)
|
in. (mm)
|
7.25
(184)
|
7.25
(184)
|
7.25
(184)
|
7.25
(184)
|
11.5
(292)
|
12.25
(311)
|
12.25
(311)
|
18.38
(467)
|
18.38
(467)
|
|
Weight, Complete Pump, Dry
|
lb (kg)
|
50
(23)
|
62
(28)
|
69
(31)
|
85
(39)
|
180
(82)
|
195
(89)
|
250
(114)
|
560
(254)
|
600
(272)
|
Specification Sheet
| Type |
Label |
Description |
Download |
|
|
Kinney A-Series - NEW |
OPERATOR’S MANUAL |
Download
|
