Kinney A200 - NEW
| Weight | 560 lbs |
|---|---|
| Motor Power | 15 hp |
| Pumping Speed | 205 cfm |
| Ultimate Pressure | 2.50 x 101 Torr |

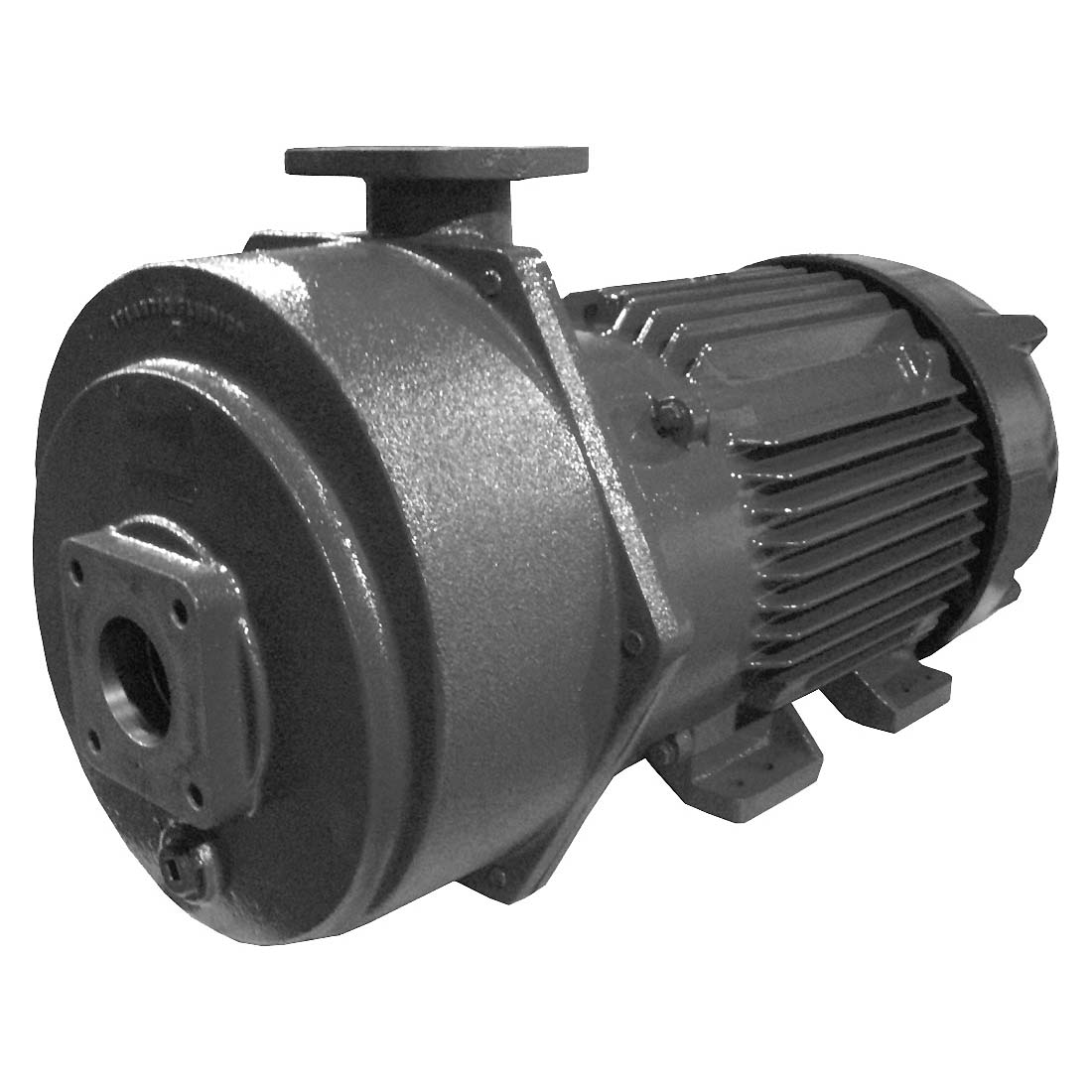

Kinney A200 Single Stage Liquid Ring Vacuum Pump - NEW
A-Series liquid ring vacuum pumps are designed to minimize downtime by allowing for fast in-the-field repair. Time- and money-saving features include:
Features:
- Flat power curve over entire vacuum range prevents motor overload
- Reduced stress on motor shaft and bearings
- Increased water handling capability prevents heat build-up, extends life of mechanical seals
- Compact, close-coupled design eliminates need for interstage manifold or motor alignment
- Shrouded rotor increases pumping efficiency for high vacuum and low water consumption
- Fast delivery on standard materials and local support
- Manufactured in Springfield, Missouri USA
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
|
UNIT |
A5 |
A10 |
A15 |
A20 |
A75 |
A100 |
A130 |
A200 |
A300 |
|
|
Speed |
RPM |
3450 |
3450 |
3450 |
3450 |
1725 |
1725 |
1725 |
1160 |
1160 |
|
Drive |
Type |
Direct |
Direct |
Direct |
Direct |
Direct |
Direct |
Direct |
Direct |
Direct |
|
Standard Motor |
HP (kW) |
1 (0.75) |
1.5 (1.1) |
2 (1.5) |
3 (2.2) |
5 (3.7) |
7.5 (5.6) |
10 (7.5) |
15 (11.2) |
20 (15) |
|
Sealant Liquid Required (at 60°F w/ no sealant recovery) |
GPM (L/min) |
2 (7.6) |
2 (7.6) |
3 (11.4) |
3 (11.4) |
4 (15.1) |
4 (15.1) |
5 (18.9) |
8 (30.3) |
10 (37.9) |
|
Sealant Liquid Connections |
NPT |
3/8 in. |
3/8 in. |
3/8 in. |
3/8 in. |
1/2 in. |
1/2 in. |
1/2 in. |
1 in. |
1 in. |
|
Inlet/Outlet Connections |
ANSI 150 Class |
3/4 in. |
1 in. |
1 in. |
1 in. |
2 in. |
2 in. |
2 in. |
3 in. |
3 in. |
|
Overall Length (w/ Standard Motor) |
in. (mm) |
14 (356) |
16.6 (422) |
17 (432) |
18.5 (470) |
20.2 (513) |
23.1 (587) |
25.3 (642) |
32.4 (823) |
33.7 (856) |
|
Overall Height (w/ Standard Motor) |
in. (mm) |
7.25 (184) |
7.25 (184) |
7.25 (184) |
7.25 (184) |
11.5 (292) |
12.25 (311) |
12.25 (311) |
18.38 (467) |
18.38 (467) |
|
Weight, Complete Pump, Dry |
lb (kg) |
50 (23) |
62 (28) |
69 (31) |
85 (39) |
180 (82) |
195 (89) |
250 (114) |
560 (254) |
600 (272) |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney A-Series - NEW | OPERATOR’S MANUAL | Download |
