Kinney KC 5 - NEW
| Weight | 115 lbs |
|---|---|
| Motor Power | 0.33 hp |
| Pumping Speed | 5 cfm |
| Ultimate Pressure | 2 x 10-4 Torr |

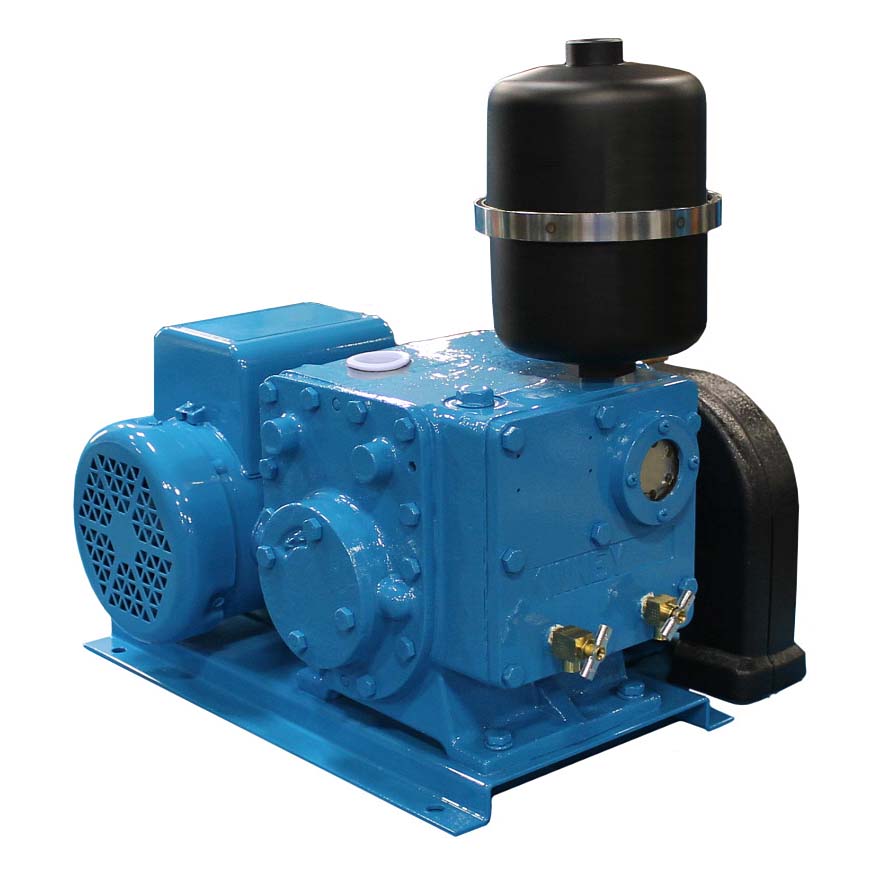

Kinney KC5 Rotary Piston Vacuum Pumps - NEW
KC pumps are air-cooled. Adjustable gas ballast valves are standard for handling water and other vapor loads.
Features:
- Recommended for applications where operating pressure is below 0.1 Torr (0.13 mbar)
- Achieve lowest possible pressures from mechanical pumps
- Rugged and reliable
- No metal-to-metal contact between pump piston & cylinder - clearances are filled with oil
- Unequaled durability, even in dirty applications
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
|
MODEL |
NOMINAL DISPLACEMENT ACFM / m3/h |
MOTOR HP / kW |
RPM |
OIL CAPACITY Quarts/Liters |
MAX. GAS BALLAST FLOW % |
GAS BALLAST PRESSURE Torr / mbar |
ULTIMATE PRESSURE MICRONS / mbar |
NOISE LEVEL AT 0.1 TORR (0.13 mbar) dB(A) |
|
KC-5 |
5 / 8.5 |
0.33 / 0.25 |
638 |
0.8 / 0.76 |
15 |
0.02 / 0.027 |
0.2 / 0.00027 |
75 |
|
KC-8 |
8 / 13.6 |
1-Phase: 0.75 / 0.56 3-Phase: 0.5 / 0.37 |
1022 |
0.8 / 0.76 |
15 |
0.02 / 0.027 |
0.2 / 0.00027 |
78 |
|
KC-15 |
15 / 25.5 |
1 / 0.75 |
572 |
3.0 / 2.84 |
15 |
0.02 / 0.027 |
0.2 / 0.00027 |
75 |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KC Series - NEW | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Kinney KC 5 Rotary Piston Vacuum Pump - NEW
