Kinney KDH 130 - REBUILT
Call for Price
| Weight | 755 lbs |
|---|---|
| Motor Power | 5 hp |
| Pumping Speed | 134 cfm |
| Ultimate Pressure | 1.3 x 10-2 mbar |

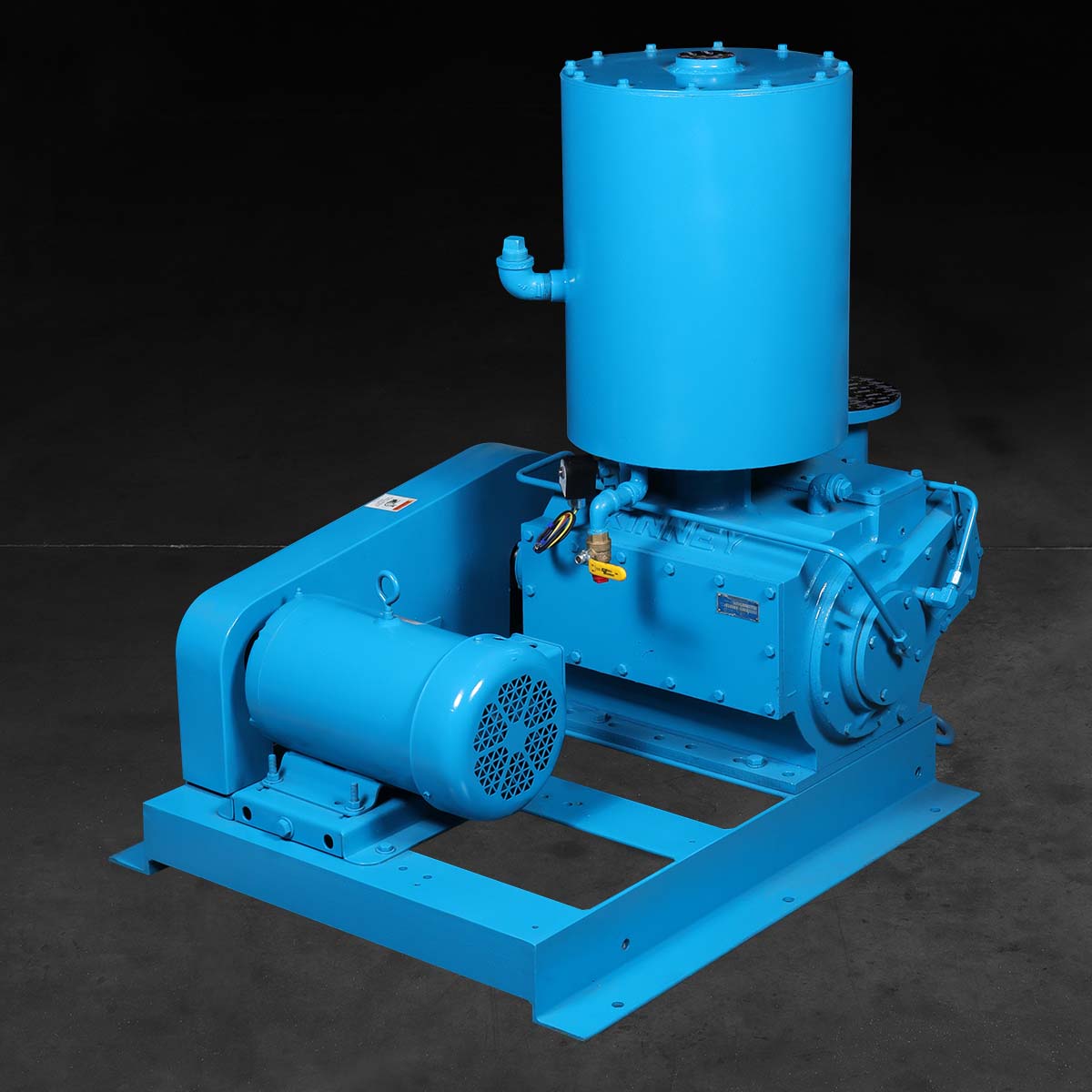

Kinney KDH 130 Oil Sealed Rotary Piston Vacuum Pump - REBUILT
KD pumps are air-cooled and KDH pumps are water-cooled.
Features:
• Absolute pressures down to the low micron range
• Belt-driven, low-speed rotary piston pumps
• No small orifices to plug up
• Rugged and reliable
• No metal-to-metal contact between pump piston & cylinder - clearances are filled with oil
• Adjustable gas ballast permits handling of condensible vapors
Motor Power (hp): 5
Ultimate Pressure (Torr): 0.009
Pumping Speed (cfm): 134
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
|
MODEL |
CAPACITY ACFM / m3/h |
HP / kW |
RPM |
OIL CAPACITY GAL / Liter |
WATER (80°F) GPM / L/min |
GAS BALLAST FLOW (MAX) % |
BLANK-OFF (5% GAS) Torr / mbar |
ULTIMATE PRESSURE MICRONS / mbar |
|
KD-30 |
33 / 56 |
1.5 / 1.11 |
571 |
1 / 3.78 |
Air-cooled |
8% |
1.5 / 2 |
10 / 0.013 |
|
KD-50 |
52 / 88 |
2 / 1.5 |
900 |
3 / 11.34 |
6% |
|||
|
KDH-130 |
134 / 227 |
5 / 3.7 |
546 |
6 / 22.68 |
.75* / 3 |
6% |
1.0 / 1.3 |
|
|
KDH-150 |
165 / 280 |
7.5 / 5.6 |
684 |
.75 / 3 |
5% |
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KDH Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Tuthill Kinney KDH 130 Oil Sealed Rotary Piston Vacuum Pump - REBUILT
