Kinney MB 2700 - REBUILT
Call for Price
| Weight | 790 lbs |
|---|---|
| Pumping Speed | 2,700 cfm |

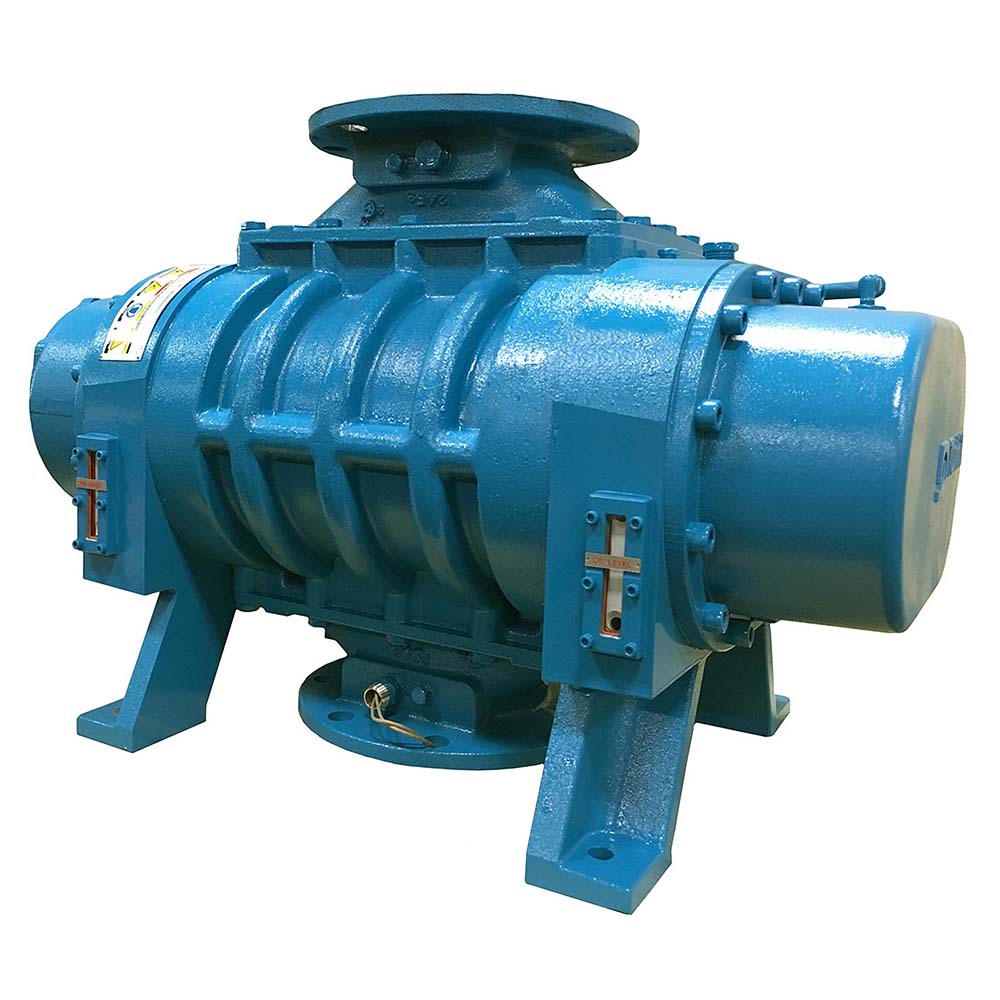

Kinney MB 2700-90L2CM008 Mechanical Vacuum Blower - REBUILT
Bareshaft blowers, no motor.
Kinney KMBD mechanical boosters are available in flow ranges from 400 - 12,700 cfm with mechanical noise of 82 dB(A) or less.
The Kinney MB 2700 is a high-capacity mechanical vacuum booster designed to maximize the performance of vacuum systems in industrial applications. Manufactured by Tuthill Vacuum & Blower Systems, the MB 2700 is engineered for reliability, efficiency, and durability, making it an ideal choice for industries such as chemical processing, vacuum metallurgy, semiconductor manufacturing, and more. This booster is built to deliver high pumping speeds and achieve deeper vacuum levels, ensuring optimal performance for demanding processes.
Key Features:
- High Pumping Speed: The MB 2700 significantly enhances the throughput of primary vacuum pumps, enabling faster processing and improved system efficiency.
- Durable Construction: Built with a cast iron housing, end plates, and ductile iron rotors, the MB 2700 is designed to withstand harsh industrial environments and ensure long service life.
- Low Noise Operation: Operates at 82 dB(A) or less at blank-off, ensuring a quieter and safer working environment.
- Precision Engineering: Features heat-treated alloy steel, helical-cut gears, and precision-ground components for smooth and efficient operation.
- Oil Splash Lubrication System: Provides consistent lubrication to internal components, reducing wear and extending operational life.
- Individually Tested: Each MB 2700 unit undergoes rigorous testing, including blank-off and heat run tests, to meet ISO 9001 quality standards.
The MB 2700 is ideal for a variety of industrial applications, including:
- Vacuum distillation
- Vacuum drying
- Freeze-drying
- Semiconductor manufacturing
- Thin-film coating
- Degassing processes
- Vacuum metallurgy
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
- Housing: Cast iron
- End Plates: Cast iron
- End Covers: Cast iron
- Rotors: Ductile iron
- Shafts: Ductile iron cast integrally with rotors
- Drive Shaft: SAE 4140 forged alloy steel
- Bearings: Gear end - Double row ball, both rotors / Back end - Cylindrical roller
- Drive Shaft: Single row ball
- Gears: Alloy steel, helical cut and precision ground
- Seals: Drive shaft - Mechanical
- Rotor shafts: Mechanical or Non-contacting slinger
- Lubrication: Oil splash system, both ends
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney KMBD Series - REBUILT | Installation Operational Maintenance Repair Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Tuthill Kinney MB 2700-90L2CM008 Mechanical Vacuum Blower - REBUILT
