Kinney MB 400 - NEW
Call for Price
| Weight | 270 lbs |
|---|---|
| Pumping Speed | 120-400 cfm |

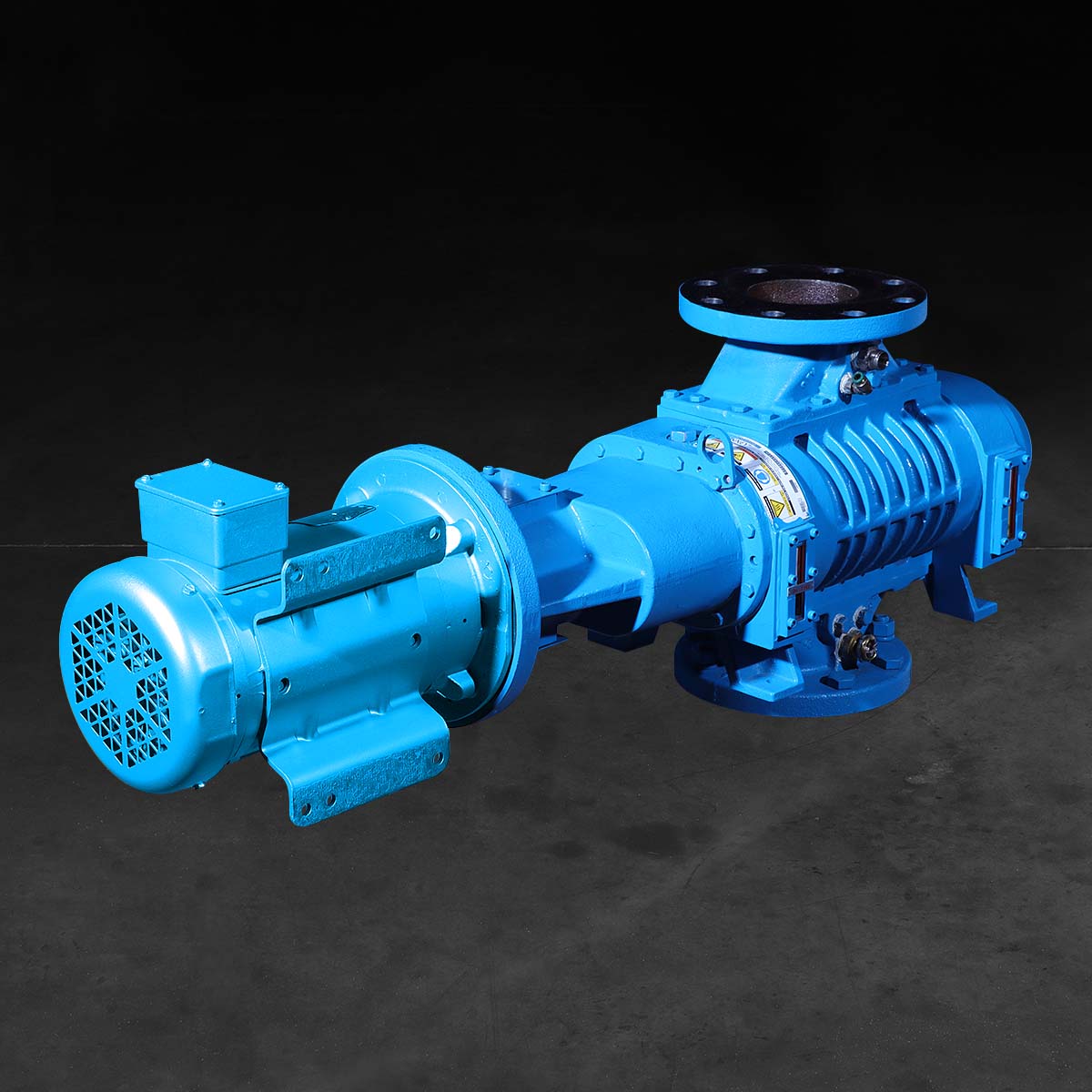

Kinney MB 400 Mechanical Vacuum Booster - NEW
Mechanical Seals:
These series incorporate mechanical sealing on the rotor shafts and the drive shaft, flanged port fittings, water cooled drive shaft seal, and cooling coils in the end covers. Water cooled drive shaft seal not included with optional motor mounting flange versions.
Slinger Seals:
These series utilize a mechanical drive shaft seal in conjunction with a non-contacting, non-wearing slinger seal on the rotor shafts, water cooled drive shaft seal, flanged port fittings, and are dependable performers for air and many gas applications. Cooling coils are not included. Water cooled drive shaft seal not included with optional motor mounting flange versions.
Also available with metric drive shaft and process connections.
Kinney is now part of MD-Kinney, which was formerly known as Tuthill Springfield.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
|
MODEL |
APPROXIMATE OIL CAPACITY |
PORT SIZE |
MAXIMUM RPM |
APPROXIMATE WEIGHT |
||
|
VERTICAL |
HORIZONTAL |
VERTICAL |
HORIZONTAL |
|||
|
150 |
1 qt (0.95 L) |
0.5 qt (0.47 L) |
2 in. (50 mm) |
3,600 |
145 lb (65 kg) |
130 lb (59 kg) |
|
240 |
3 in. (80 mm) |
160 lb (73 kg) |
145 lb (66 kg) |
|||
|
400 |
4 in. (100 mm) |
195 lb (88 kg) |
180 lb (82 kg) |
|||
|
540 |
1.5 qt (1.42 L) |
1 qt (0.95 L) |
4 in. (100 mm) |
3,600 |
260 lb (118 kg) |
240 lb (109 kg) |
|
720 |
4 in. (100 mm) |
300 lb (136 kg) |
280 lb (127 kg) |
|||
|
850 |
4 qt (3.79 L) |
2.5 qt (2.37 L) |
6 in. (150 mm) |
3,600 |
450 lb (204 kg) |
430 lb (195 kg) |
|
1200 |
6 in. (150 mm) |
520 lb (236 kg) |
490 lb (222 kg) |
|||
|
1600 |
6 in. (150 mm) |
580 lb (263 kg) |
540 lb (245 kg) |
|||
|
2000 |
8 in. (200 mm) |
685 lb (310 kg) |
645 lb (293 kg) |
|||
|
2700 |
10 in. (250 mm) |
790 lb (358 kg) |
750 lb (340 kg) |
|||
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Kinney MB 150 - 2700 - NEW | OPERATOR’S MANUAL | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Kinney MB 400 Mechanical Vacuum Booster - NEW 120-400 cfm / 204-680 m3/h
