Leybold CONE.TROL 200 - REBUILT
Call for Price
In stock
SKU
REBUILT_CT200
| Height | 130 mm |
|---|---|
| Width | 105 mm |
| Length | 310 mm |
| Weight | 5 lbs |
Leybold Vacuum CONE.TROL 200 Frequency Converter - REBUILT
View our inventory of Leybold turbo controllers.
Dimensions: 310 x 105 x 130 mm
Voltage Range: 100-240 V -15% +10%
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Voltage range | 100-240 V -15% +10% |
| Mains frequency | 50/60 Hz |
| Power consumption | |
| Momentary (acceleration) | 230 VA (210 W) |
| Continuously (nominal speed) | 165 VA (160 W) |
| Idle | 26 VA (16 W) |
| Output voltage | 24 V |
| Max. pump current (acceleration) | 6.5 A |
| Continuous pump current | 5.0 A |
| Max. frequency | 1,200 Hz |
| Max. load relay output | 42 V, 1 A |
| Max. load signal output | 15 V, 100 mA |

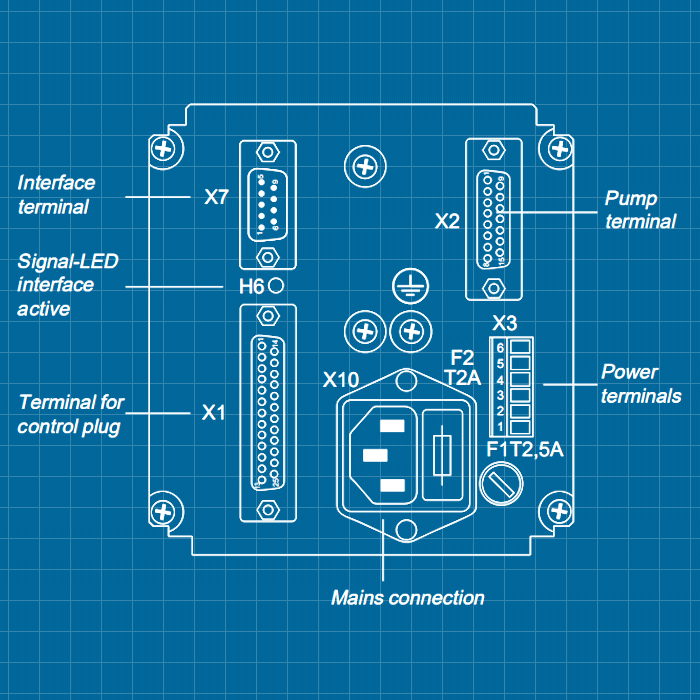

| Max. cont. current via power terminal X3,2 | 0.2 A |
| Max. cont. current via terminal x1,17 | 0.15 A |
| Ambient temperatures | |
| In operation | 10-40°C |
| During storage | -10 to +60°C |
| Noise emission | < 70 dB(A) |
| Degree of protection / Humidity | IP 20 / Class F, DIN0470 (Protection against the ingress of solid foreign matter > 12,5 mm in diameter (finger). Not protected against the penetration of water with damaging consequences.) |
| Weight | 2.2 kg |
| Dimensions | 310 x 105 x 130 mm (1/4 19", 3 HU) |
| Cut-out for the table-top unit | 111 x 105 mm |
Specifications
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold CONE.TROL 200 - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum CONE.TROL 200 Frequency Converter - REBUILT 86270 / 862 70 85-265V 50/60 Hz w/ RS 232C/485C interface CT 200 ECE
