Leybold CVS160 - NEW

Name: Leybold CVS160 - NEW
Brand: Leybold
SKU: NEW_CVS160

Be the first to review this product

In stock

Only %1 left

SKU

NEW_CVS160

Request For Quote

Weight	650 lbs
Motor Power	3 hp
Pumping Speed	90 m³/h
Ultimate Pressure	≤ 5 x 10^-1 mbar

Description

Leybold CVS160 - 160 L Vessels Vacuum Pump - NEW

SOGEVAC Central Vacuum Stations cover the demands of numerous small vacuum consumers, increasing the availability of the vacuum service. They provide the essential performance and reliability to succeed under challenging production conditions.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Specification

Volume vacuum vessel:	160 l

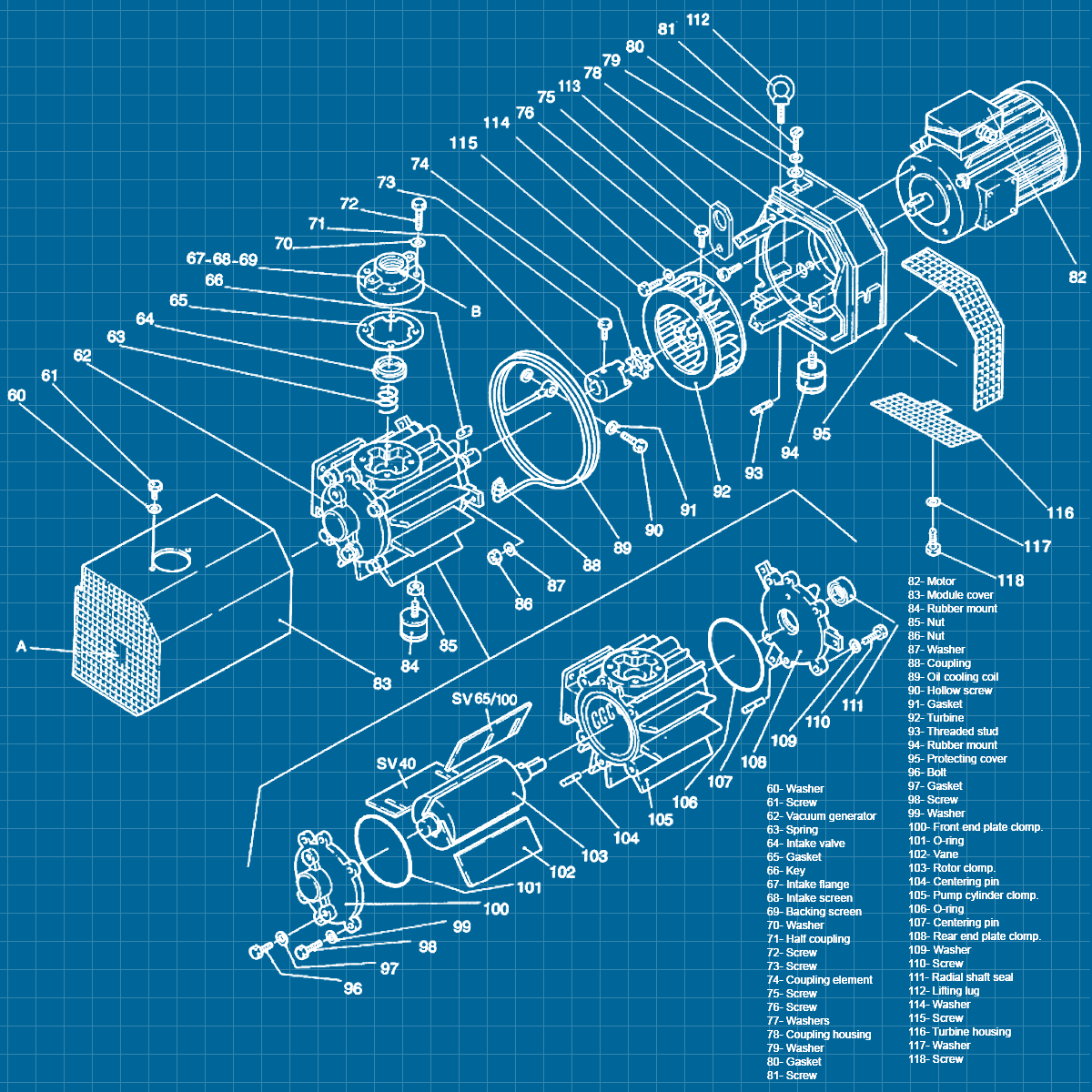

Installed vacuum pump:	1 x SOGEVAC SV 100 B
Inlet connection vacuum vessel:	G 1 1/4", Inside thread
Outlet connection:	G 1 1/4", Inside thread
Nominal pumping speed at 50 Hz:	97,5 m³/h
Nominal pumping speed at 60 Hz:	117 m³/h
Pumping speed at 50 Hz:	90 m³/h
Pumping speed at 60 Hz:	105 m³/h
Ultimate total pressure without gas ballast:	≤ 0,5 mbar
Ultimate total pressure with gas ballast:	≤ 1,5 mbar
Water vapor tolerance at 50 Hz:	30 mbar
Water vapor tolerance at 60 Hz:	30 mbar
Water vapor capacity at 50 Hz:	1600 g/h
Water vapor capacity at 60 Hz:	1700 g/h
Operating fluid:	LVO 130
Operating fluid capacity:	2 l
Noise level to DIN 45 635:	61 dB(A), without gas ballast
Mains connection:	3-ph, 400 V, 50 Hz // 460 V, 60 Hz
Installed motor rating at 50 Hz:	2.2 kW
Installed motor rating at 60 Hz:	3.5 kW
Electrical control:	Basic-Controller
Admissible ambient temperature:	+12 to +40°C
Dimensions (LxBxD):	1542 x 766 x 1050 mm
Weight:	295 kg / 650 lbs

Specifications

RFQ/Configuration

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold CVS160 - 160 L Vessels Vacuum Pump - NEW
