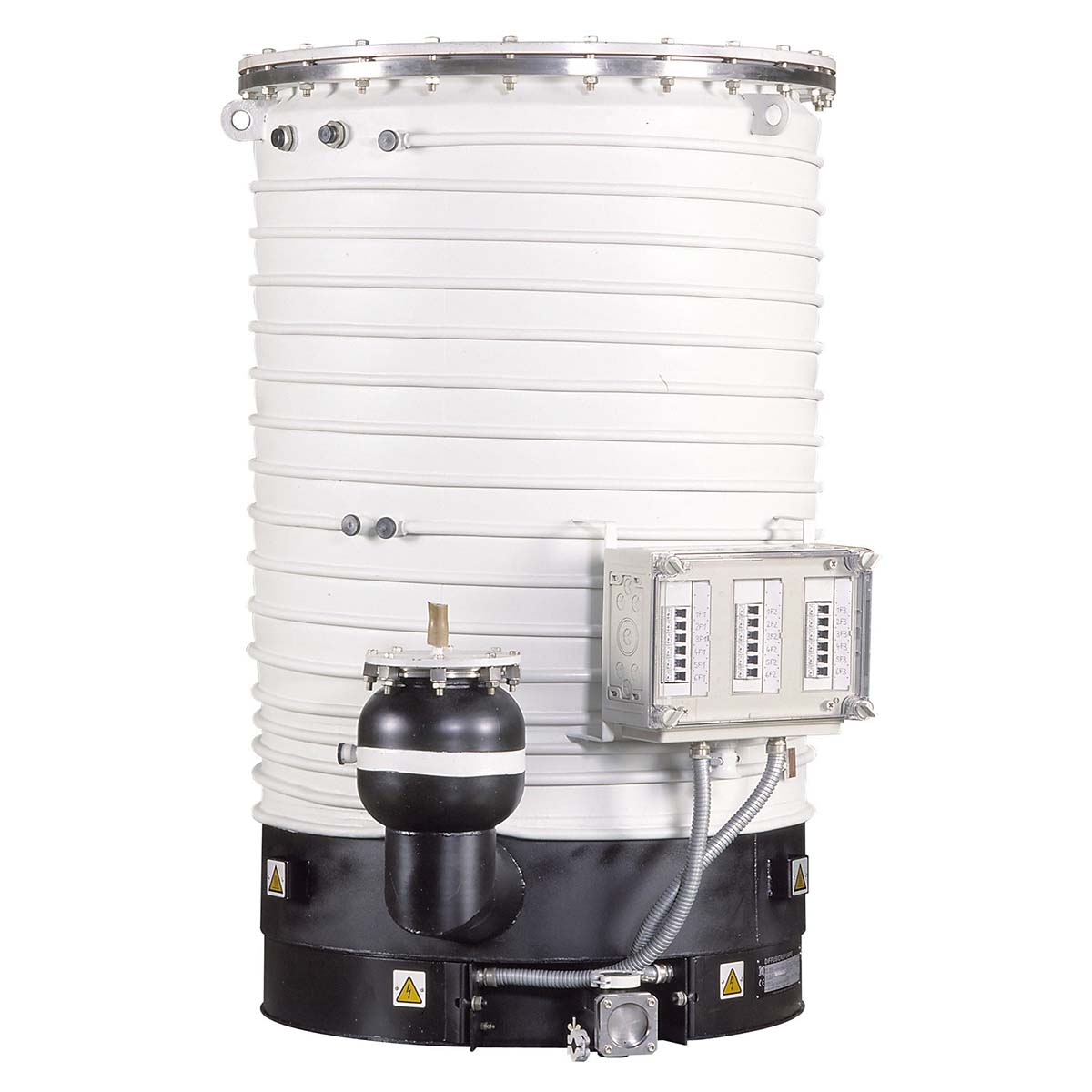

Leybold DIP 50.000 High Vacuum Diffusion Pump - NEW
The pumps in the DIP series are high-vacuum pumps (<10-2 mbar). They are always operated in conjunction with forevacuum pumps. The DIP series pumps are water cooled and utilize the oil diffusion principle in their operation. They are employed in high-vacuum technology to evacuate vacuum chambers. They achieve their highest pumping speeds in pressure ranges from 10-2 to 10-7 mbar.
The diffusion pumps in the DIP series comprise the following component assemblies:
Water-cooled pump housing with high-vacuum, and forevacuum connection flanges
Nozzle assembly
Vaporization chamber with heating elements
Cold cap baffle
Forevacuum baffle
Energy Efficiency Control or electrical junction box
