Leybold DIVAC 0.8 LT - NEW
Call for Price
| Weight | 16.6 lbs |
|---|---|
| Motor Power | 0.11 hp |
| Pumping Speed | 0.6 m3/h |
| Ultimate Pressure | ≤ 3.8x 10-1 torr |

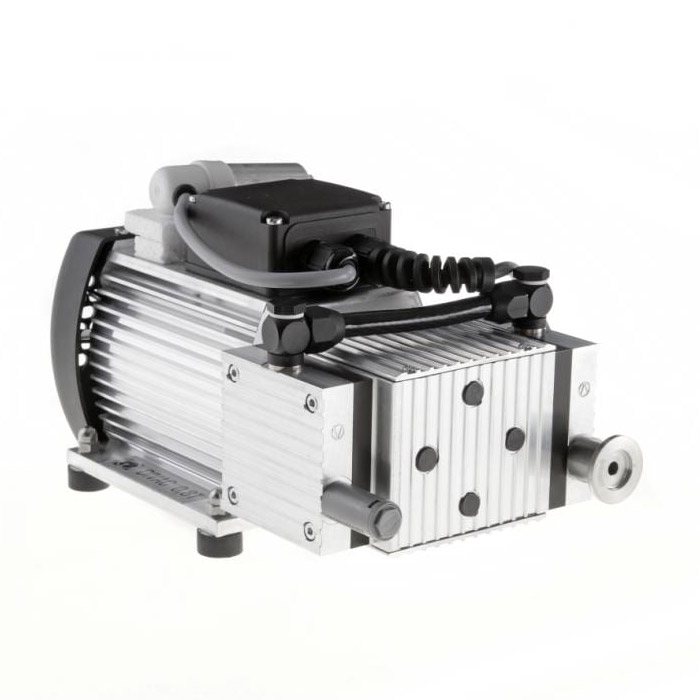

Leybold DIVAC 0.8 LT Dry Diaphragm Vacuum Pump - NEW
Our dry compressing backing pumps from the DIVAC T series are now supplemented by the three-stage DIVAC 1.4 HV3 and the DIVAC 3.8 HV3. Like the proven DIVAC T series, these new models also ensure a forevacuum free of hydrocarbons. Owing to their three-stage design, they provide especially within the lower pressure ranges a higher pumping speed and are therefore even better suited as backing pumps for turbomolecular pumps. But they are also used as backing pumps operating in the rough and medium vacuum range to pump clean media.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Inlet connection | DN 16 ISO-KF, G 1/8" Inside thread | |
| Outlet connection | Silencer, G 1/8" Inside thread | |
| Pumping speed | 0.6 m3/h | 0.4 cfm |
| Ultimate pressure | ≤ 0.5 mbar / ≤ 0.38 Torr | |
| Max. outlet pressure | 2,000 mbar | 1,500 Torr |
| Noise level | 53 dB(A) | |
| Mains connection | 1-phase, 230 V, ±10%, 50 Hz | |
| Motor rating | 80 W | 0.11 hp |
| Rotation speed at 50 Hz | 1,500 min-1 | 1,500 rpm |
| Motor protection rating | IP 44 | |
| Admissible gas inlet temperature | +5 to +40°C | +41 to +104°F |
| Admissible ambient temperature | +5 to +40°C | +41 to +104°F |
| Weight | 7.5 kg | 16.6 lbs |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold Dry Compressing Vacuum Pumps - NEW | Excerpt / Catalog Part | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold DIVAC 0.8 LT Dry Diaphragm Vacuum Pump - NEW Part # 12783
