Leybold ECODRY 65 plus - NEW
Call for Price
In stock
SKU
NEW_ECODRY65plus
| Weight | 95 lbs |
|---|---|
| Pumping Speed | 55 m3/h |
| Ultimate Pressure | < 0.03 mbar |

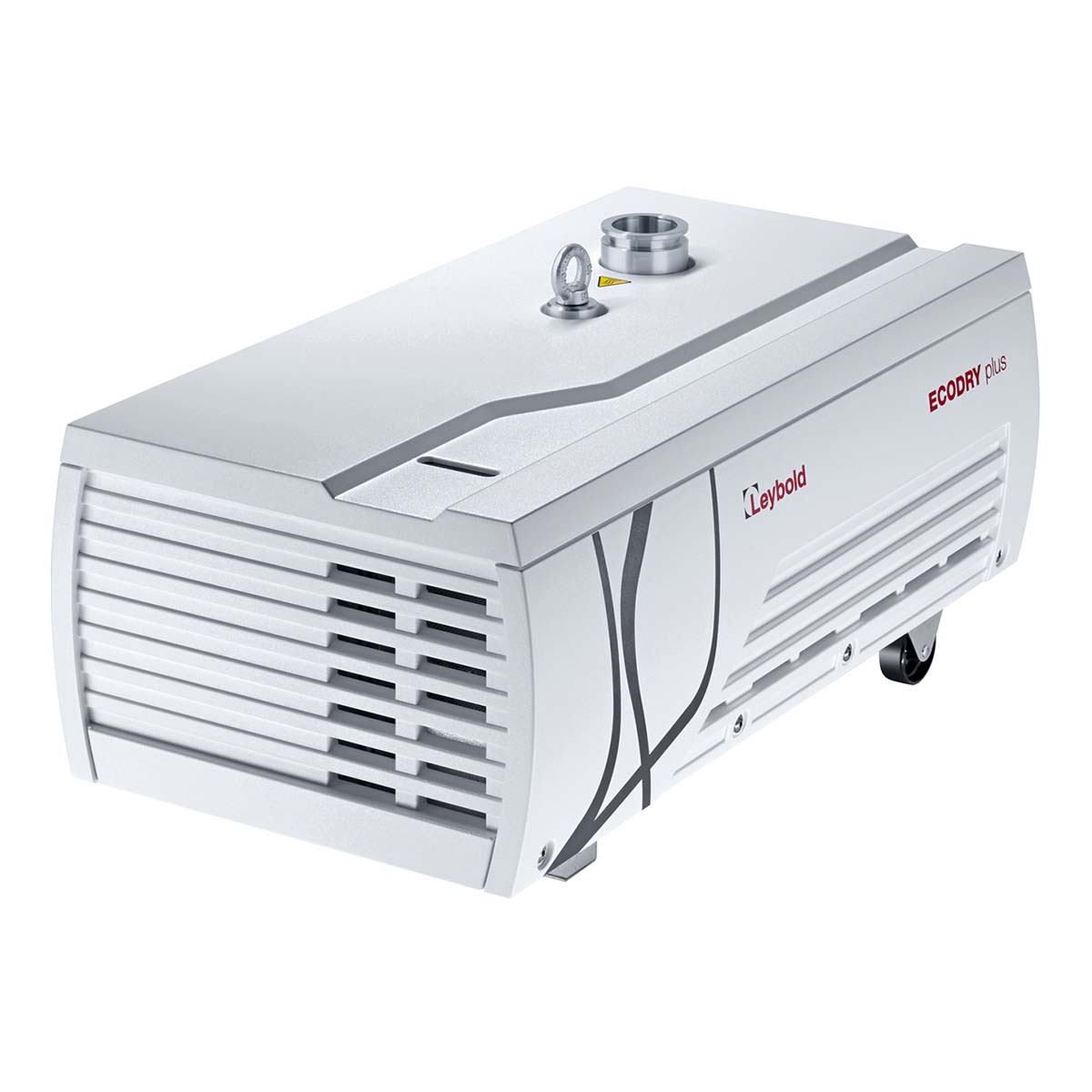

Leybold ECODRY 65 plus Dry Vacuum Pump - NEW
The ECODRY plus is an eight-stage Roots pump. It is of the dry compressing type and capable of evacuating chambers down to the medium vacuum range.
The pump is connected to a single-phase supply using a mains power cable and is powered via a built-in electronic drive unit. It is air-cooled. Bearings and gears are lubricated using PFPE. The pump is therefore maintenance free from the customer’s perspective.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| ECODRY plus | 40 | 65 |
|---|---|---|
| Maximum pumping speed w/out gas ballast | 40 m3/h | 55 m3/h |
| Ultimate partial pressure w/out gas ballast | < 0.03 mbar | |
| Ultimate partial pressure w/ gas ballast | < 0.1 mbar | |
| Maximum permissible inlet pressure | 1,050 mbar | |
| Max. perm. discharge pressure (relative to ambient) | 200 mbar | |
| Leak rate | < 10-5 mbar∙l/s | |
| Water vapour tolerance w/ gas ballast | 20 mbar | |
| Water vapour capacity w/ gas ballast | 300 g/h | 500 g/h |
| Permissible ambient temperature | +5 to +40°C | |
| Storage temperature | -20 to +60°C | |
| Noise level w/out silencer, at ultimate pressure (acc. to DIN EN ISO 2151) | < 52 dB(A) | |
| Relative ambient atmospheric humidity | 95%, non-condensing | |
| Max. installation height | up to 2,000 m (NHN) | |
| Cooling | Air | |
| Leakage current in accordance with IEC 61010-1 | < 3.5 mA | |
| Max. contamination grade acc. to IEC 61010-1 | 2 | |
| Mains voltage | 200 – 240 V ± 10 % | |
| Frequency | 50 / 60 Hz ± 5 % | |
| Phases | 1-phase | |
| Max. current | 10 A | |
| Max. power consumption | 1,200 W | |
| Mains fusing / characteristic | 16 A / T | |
| Plug connector for power supply | C 20 acc. to IEC 60320 | |
| Speed | 12,600 RPM | |
| Protection class | IP 42 | |
| Intake flange | DN 25 ISO-KF | DN 40 ISO-KF |
| Discharge flange | DN 16 ISO-KF | |
| Weight, approx. | 43 kg | |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold ECODRY 65 plus Dry Vacuum Pump - NEW 161065V21 / 161 065 V21 120V 60Hz 161065V22 / 161 065 V22 200-240V 50/60Hz
