Leybold MAG.DRIVE digital - REBUILT
Call for Price
In stock
SKU
REBUILT_MDDIGITAL
| Weight | 22 lbs |
|---|

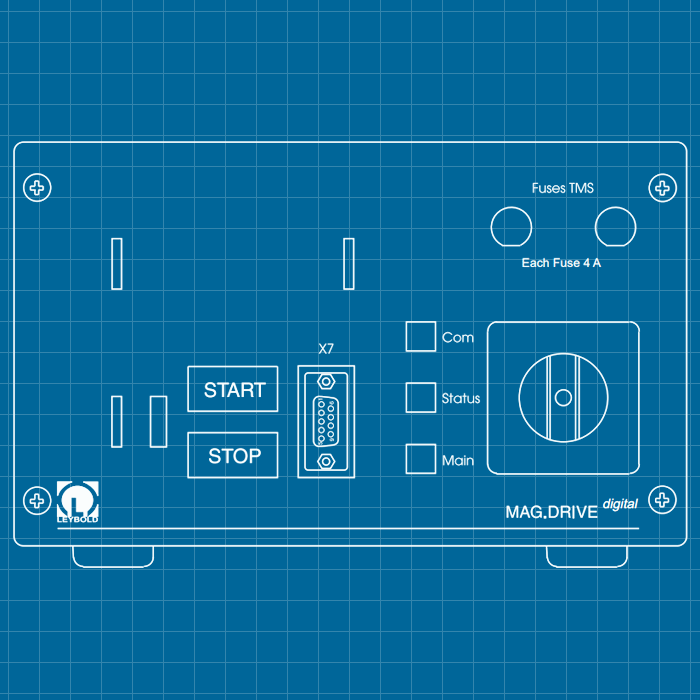

Leybold Vacuum MAG.DRIVE digital Frequency Converter - REBUILT
For operating and controlling of the TURBOVAC turbomolecular vacuum pumps an electronic frequency converter is essential. The frequency converter must match to vacuum pump. Beside bench top units and units for rack mounting there are in some cases also converters which are directly integrated within the vacuum pump. For communication and system integration several interfaces are available.
Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!
| Voltage range | 200 - 240 V +10% -15% |
| Line supply frequency | 50 / 60 Hz |
| Load | |
| Stand-by | approx. 100 W |
| Maximum heated pumps | 1,800 W |
| Maximum non-heated pumps | 1,100 W |
| Max. voltage motor | 60 V |
| Maximum pump current | 15 A rms |
| Maximum frequency | 600 Hz |
| Load capability, relay output | 42 V, 1 A |
| Temperature during operation | 0 - 45°C |
| Storage temperature | -10°C to +60°C |
| Relative air humidity | Class F acc. to DIN 400 40 |
| Overvoltage category | II |
| Contamination level in accordance with EN 61010 | 2 |
| Weight | 10 kg |
| Type | Label | Description | Download |
|---|---|---|---|
|
Leybold MAG digital Series - REBUILT | Instruction Manual | Download |
Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.
Leybold Vacuum MAG.DRIVE digital Frequency Converter - REBUILT MAG.DRIVE digital 400035V0001 MAG.DRIVE digital 400035V0017 MAG.DRIVE digital LINE 400035V0011 MAG.DRIVE digital LINE w/ Profibus 400035V0013 MAG.DRIVE digital LINE w/ RS232 400035V0014 MAG.DRIVE digital Ethernet 400035V0015 MAG.DRIVE S - w/out display 410300V0202 MAG.DRIVE S - w/ display 410300V0212 FAS.DRIVE digital 400300V0001 Display for MAG DRIVE controller 12136 MAG.DRIVE digital 400035V0017
