Leybold MAG.DRIVE S - NEW

Call for Price

In stock
SKU
NEW_MDS
Height 129 mm
Width 213 mm
Length 347 mm
Weight 14.3 lbs

Leybold MAG.DRIVE S Frequency Converter w/ Display - NEW

For operating and controlling of the TURBOVAC MAG turbomolecular vacuum pumps an electronic frequency converter is essential. The frequency converter must match to vacuum pump. Beside bench top units and units for rack mounting there are in some cases also converters which are directly integrated within the vacuum pump. For communication and system integration several interfaces are available.

Questions? Please call our toll free number at 866-332-0500 or send an email to our sales team!

Mains connection 100-240 V, 50/60 Hz
Max output voltage 48 V
Max power consumption 400 W
Interfaces RS 232 C
Protection rating IP 30
Admissible ambient temperature 0-45°C 32-113°F

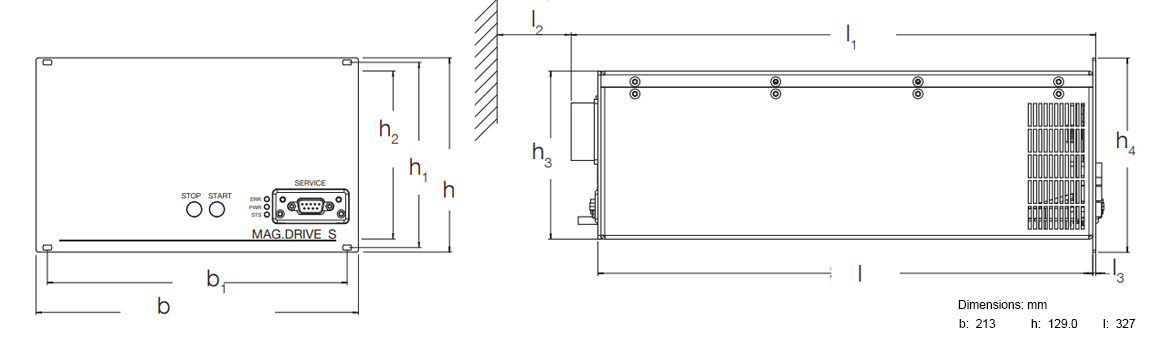

Dimensions 347 x 213 mm x 1⁄2 19"
Weight 6.5 kg = 14.3 lbs

Specs

Type Label Description Download
Leybold High Vacuum - NEW Instruction Manual Download

Need modifications to this item? PTB Sales' expert team of engineers can configure products to your specific needs.

Leybold MAG.DRIVE S Frequency Converter w/ Display - NEW

Part no. 410300V0212
Mains connection: 100-240 V AC, 50/60 Hz
